Truth Window

Question

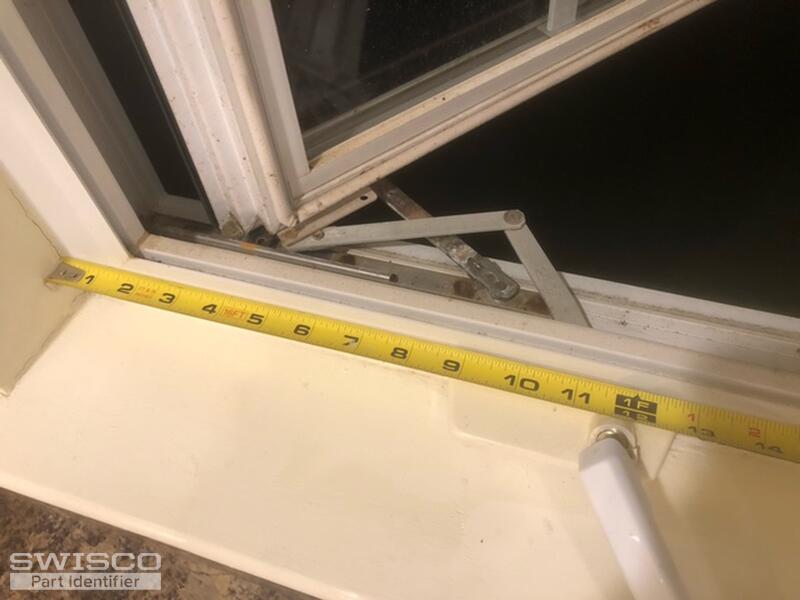

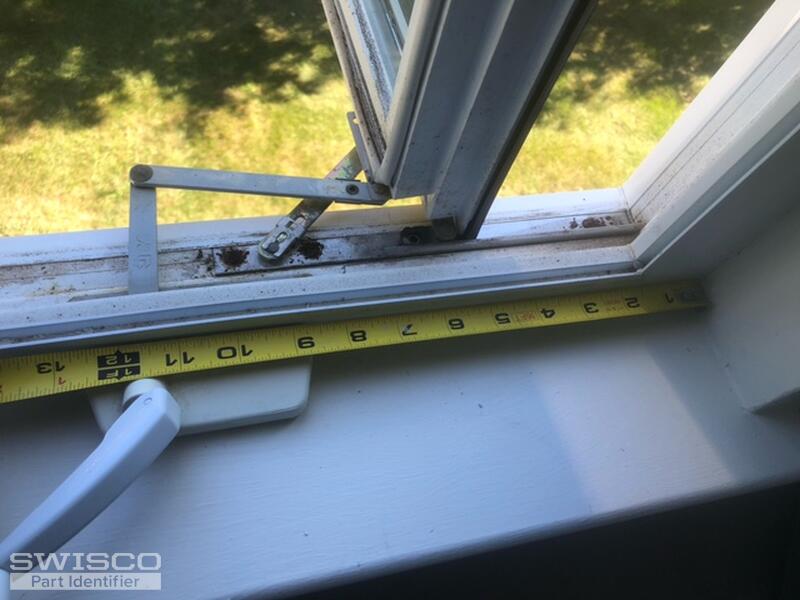

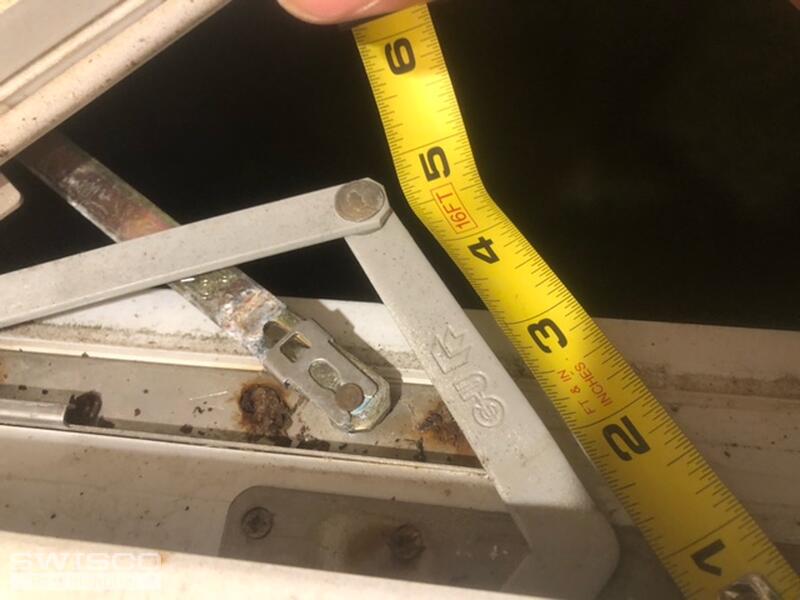

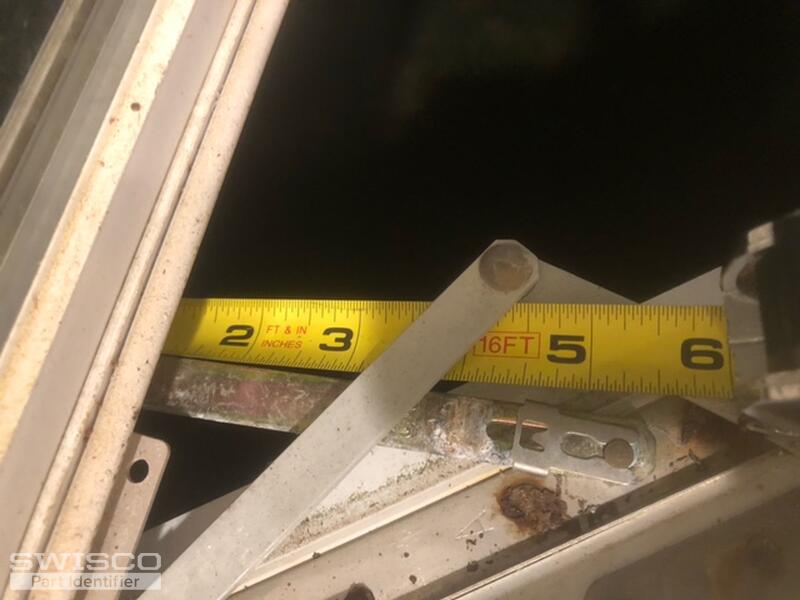

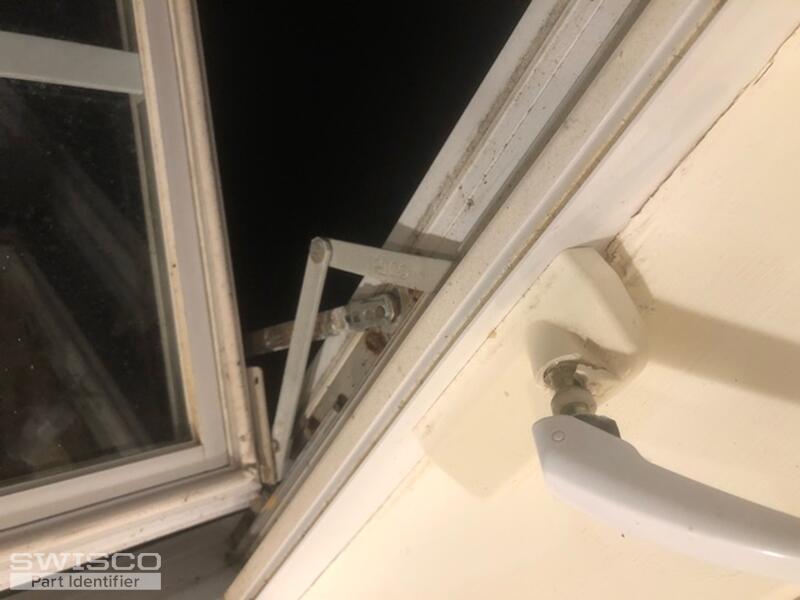

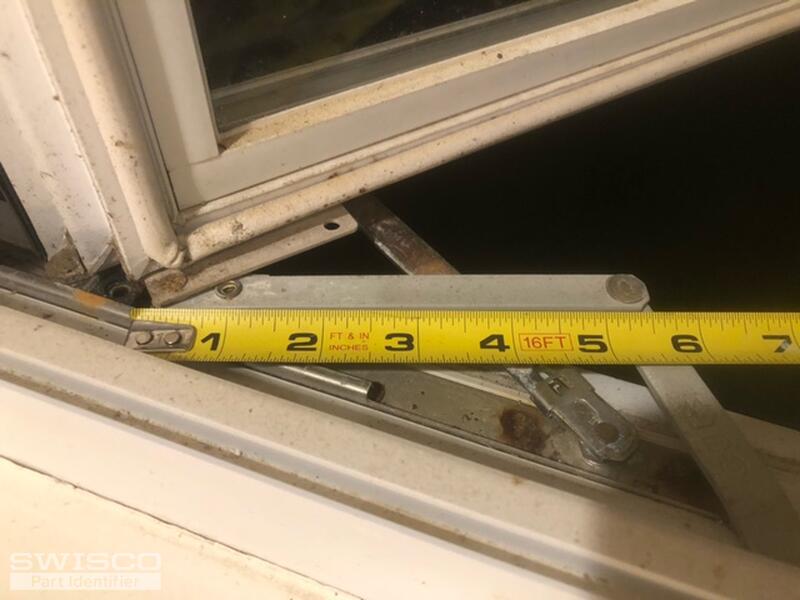

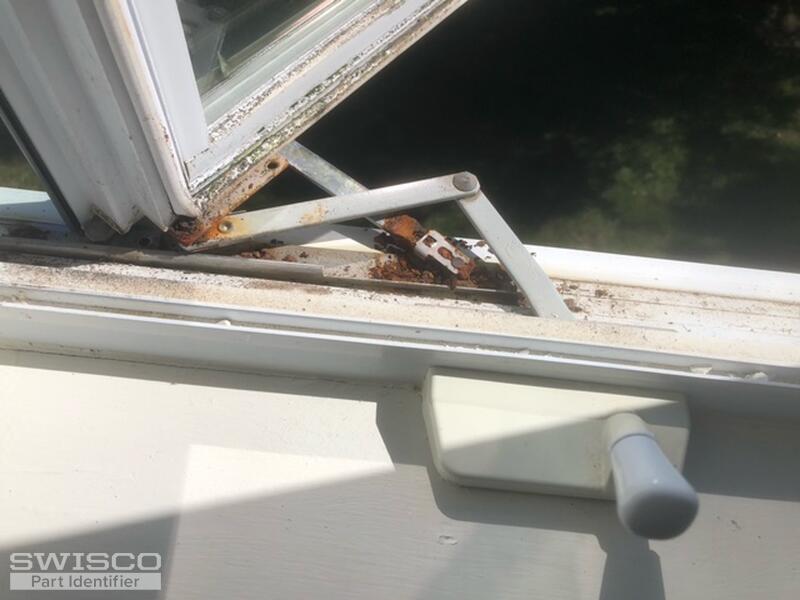

I have a Truth window in bathroom with left and right crank arms.  Image4 reflects rusted lower arm. The crank arm also not functional as it turns without the window opening or closing.  I attached images of right side window which show measurements of each part.  Please let me know the replacement part, including the crank arm so it can be replaced.

Emily · Accepted Answer

Hello there!

Thank you for reaching out to us. This is an old and discontinued GU operator. Our 39-315 and 39-316 may work as an alternative. Review the specifications and see how they compare with yours. I also recommend watching the video below in its entirety. For compatible handles, see the 39-114L or 39-205 which are sold separately.

As for the brackets, our 39-513 and 39-514 come to mind. For a new detach clip, see the 39-105.

If you need a new hinge, take a look at the specifications for the 36-048 and see if they match what you need. We just recommend replacing the top and bottom hinges at the same time.

Please let us know if you have any questions!
