Truth casement window operator

A quick learner from Massachusetts says:
May 9, 2022
One of my windows, the spline won't stay in so window doesn't operate, truth window all I see is 30636 on the arm thing, which part would replace this please if anyone knows?
Profile picture of Casey
Casey from SWISCO responded:
May 10, 2022

Hello,

We'd be happy to help but we'll need to see your operator with the window open so that the arms that move the sash are fully visible. You should be able to gently push the sash open manually as long as the window is unlocked. Thank you!
A quick learner from New Hampshire says:
May 11, 2022

Hello ,

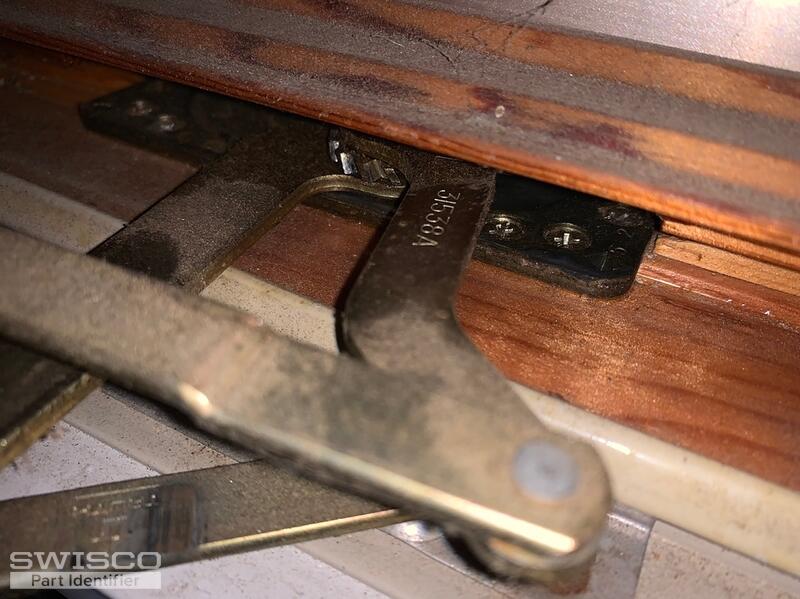

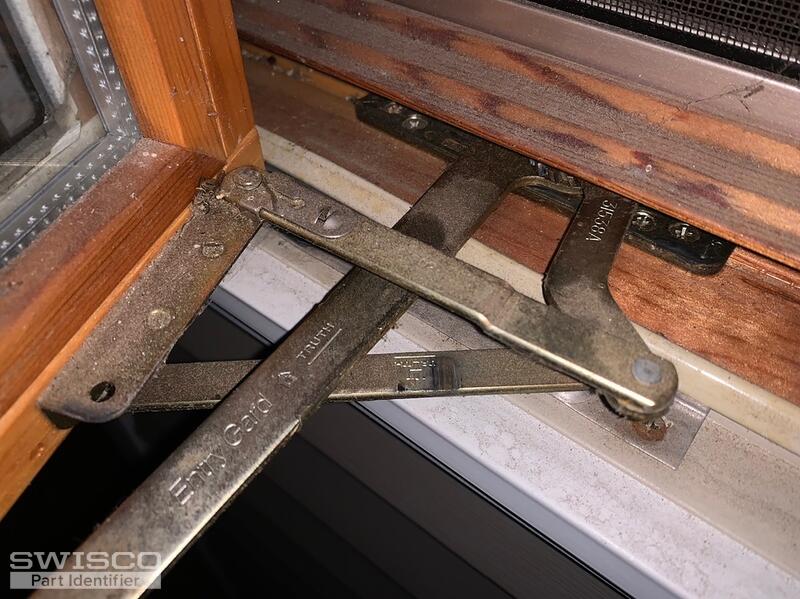

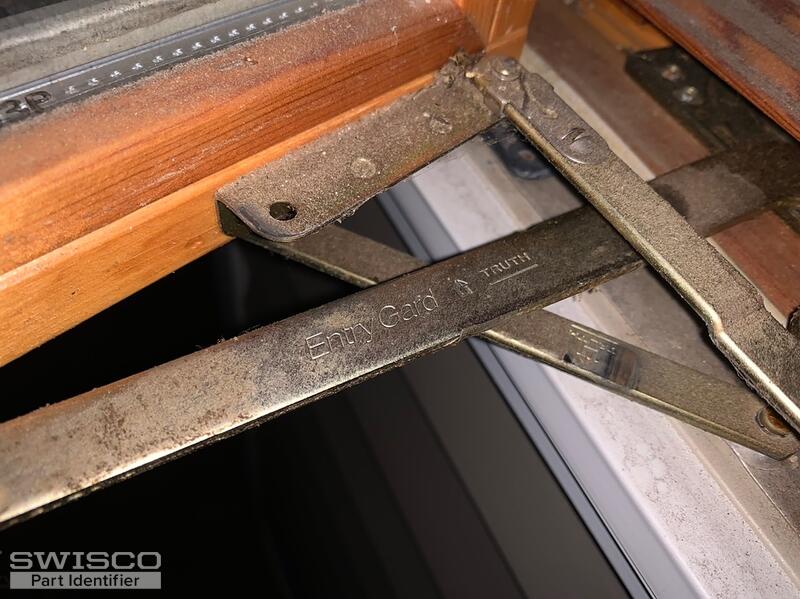

I have 1994 crest line windows on the back porch and one of the operators has broken. they are Truth entry guard and I would like to buy a few replacements to hold me over until I replace the windows . Here are pictures of one of the operators that opens in the same direction. Do you need measurements of the length of the two arms ?

Thank you

Chris

Thumbnail of the uploaded file named A9373DA7-3B99-440B-9E8F-17EBC31422CC.jpeg
Thumbnail of the uploaded file named 87B38FDD-B01E-43D8-BD11-9F568580A8FF.jpeg
Thumbnail of the uploaded file named 91EE8E73-1FE2-4006-8830-BD5829633B08.jpeg
Profile picture of Casey
Casey from SWISCO responded:
May 12, 2022

It looks like you'll need the Entrygard 39-031 and 39-032 but you'll need to compare the dimensions below to your part to confirm.


Dimensions for 39-031
Dimensions for 39-031
A quick learner from Massachusetts says:
May 12, 2022
Need to replace this 30636 truth casement operator with ??
Thumbnail of the uploaded file named FA22010A-CEAA-4ACE-850B-1B5A1BE8F778.jpeg
Profile picture of Casey
Casey from SWISCO responded:
May 12, 2022

I can't say for sure with the screen in the way but take a look and compare the 39-035 and 39-036 EntryGard operators to yours. These operators only have one split arm, which appears to be what you have but if you're unsure, please show us the same photo with the screen removed. Thank you!
A quick learner from Massachusetts says:
May 12, 2022

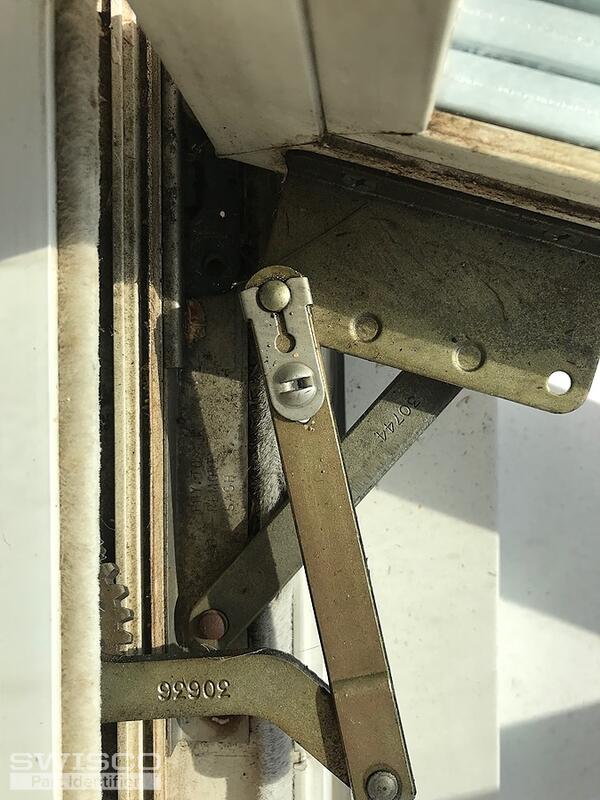

Sorry was in a hurry, here's one without the screen in the way. I think that's it
Thumbnail of the uploaded file named 6FB4823C-D032-4F1A-B8ED-867B3AC0B31F.jpeg
Profile picture of Casey
Casey from SWISCO responded:
May 13, 2022

Thanks for sending over the additional photo. I agree that as long as your dimensions match up to ours, the 39-035 and 39-036 look like the correct replacements for your window operators.
A quick learner from Massachusetts says:
May 23, 2022
Perfect fit, thank you.
