Truth found on arm

A contractor from New Egypt nj says:
October 7, 2021

Looking for a replacement mechanism that open and closes a casement window. Window measures 31". Also I need to fix the locking mechanism.

Thank you

Chuck

Thumbnail of the uploaded file named DBB782F4-B361-438B-BCA6-4ACBE9F7536D.jpeg
Thumbnail of the uploaded file named 32416017-60AF-4556-BD63-77D7F7FEB250.jpeg
Thumbnail of the uploaded file named F57BE1C5-6951-4830-8525-3F90F87F3E48.jpeg

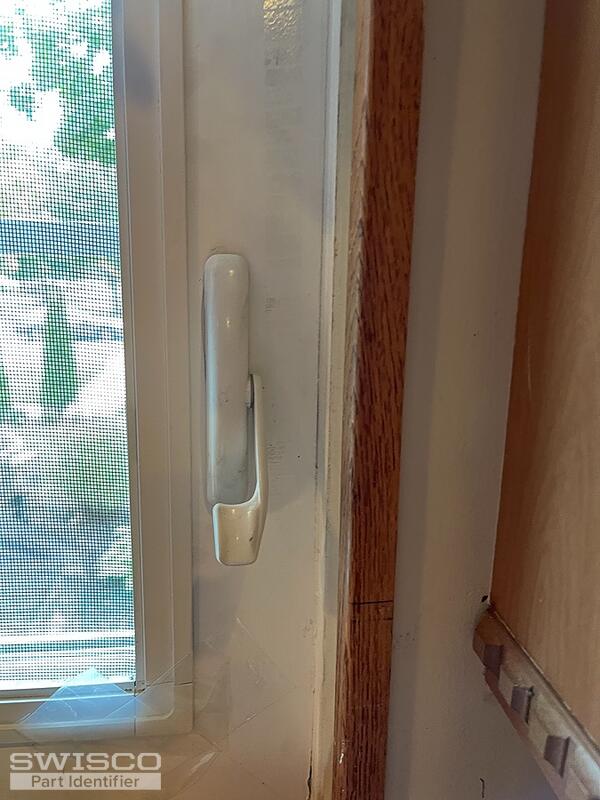

Thumbnail of the uploaded file named ED9577E1-FCDE-4DE6-971C-8870BB957F54.jpeg

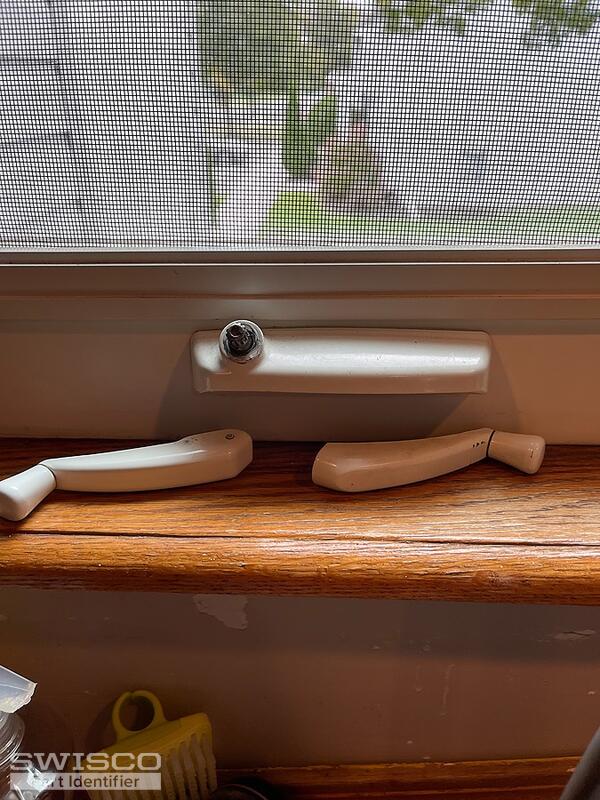

Thumbnail of the uploaded file named 5AF53F9C-EADC-4B31-AA25-D9FBBEBB26D0.jpeg
Profile picture of Emily
Emily from SWISCO responded:
October 12, 2021

Hi, Chuck.

Thanks for your patience during this busy season of ours! Take a look at our 39-253LB & 39-253RB, or the 39-438B & 39-439B, along with the video below that will help you choose the correct replacement. If the operator in your last picture is different, please show us a photo of your operator with the window open so that the arms that move the sash are fully visible.

As for the casement lock, see the 38-095, 38-096, 38-138 or 38-139. Look over all the dimensions, especially the projection of the fork, to see if one of these is what you need.
Encore Dual Arm Operator, Sill Mount
Encore Dual Arm Operator, Sill Mount
39-253LB
$30.70
Encore Dual Arm Operator, Sill Mount
Encore Dual Arm Operator, Sill Mount
39-253RB
$30.70
Encore Dual Arm Operator, Sill Mount, Low Profile
Encore Dual Arm Operator, Sill Mount, Low Profile
39-438B
$38.64
Encore Dual Arm Operator, Sill Mount, Low Profile
Encore Dual Arm Operator, Sill Mount, Low Profile
39-439B
$38.64
Maxim Multi-Point Lock, Medium Slider
Maxim Multi-Point Lock, Medium Slider
38-095
$16.97
Maxim Multi-Point Lock, Long Slider
Maxim Multi-Point Lock, Long Slider
38-096
$16.97
Roto Multi-Point Lock, 29MM Fork
Roto Multi-Point Lock, 29MM Fork
38-138
$25.55
Roto Multi-Point Lock, 37MM Fork
Roto Multi-Point Lock, 37MM Fork
38-139
$24.44
How to Orient a Dual-Arm Operator
How to Orient a Dual-Arm Operator
VIDEO
WATCH >
Comparing the 39-253LB & 39-438B Operators
Comparing the 39-253LB & 39-438B Operators
VIDEO
WATCH >
Anatomy of a casement window
Anatomy of a casement window
VIDEO
WATCH >
How to Replace a Multi-Point Lock on a Casement Window [1080p]
How to Replace a Multi-Point Lock on a Casement Window [1080p]
VIDEO
WATCH >
How to open a casement window that has a broken lock
How to open a casement window that has a broken lock
VIDEO
WATCH >
How to identify casement and awning operators
How to identify casement and awning operators
GUIDE
READ >
