Truth parts

A quick learner from Pittsburgh, pa says:

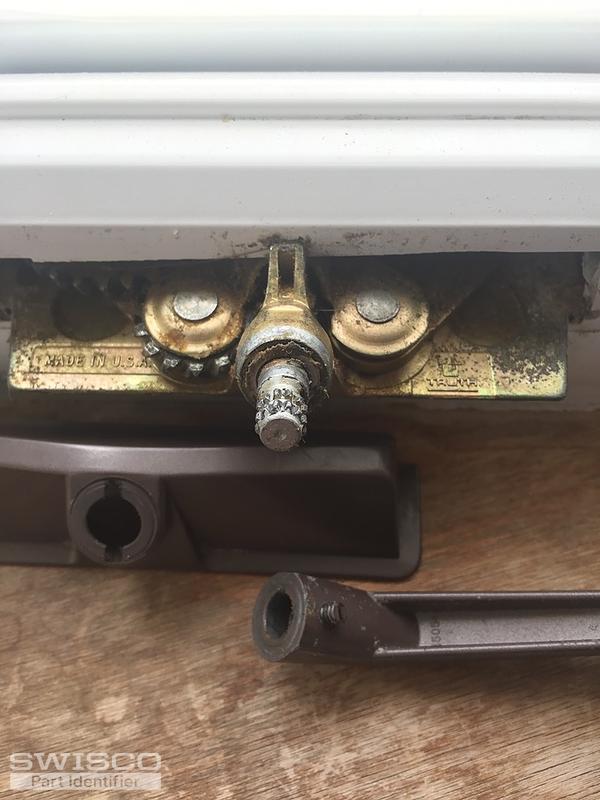

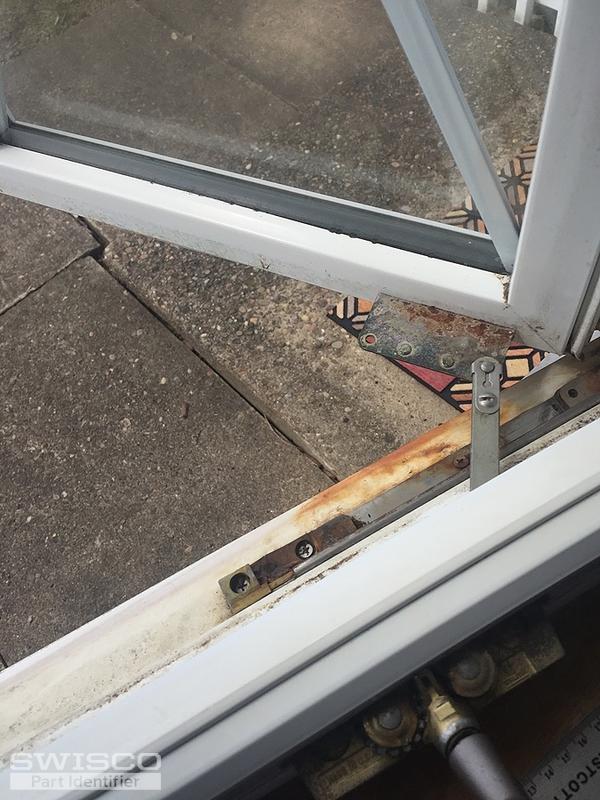

The brackets rusted off. I can see truth on the part with the gears.
I'm looking to replace the entire bracket, operator, bracket too.
Part number 50.60.14.011. Looked close but not sure.
This is opening a one foot by three foot bay window.
Need both right and left sides. Help!
Thumbnail of the uploaded file named B635D1ED-89AE-4B8E-8BB0-CA9929C49EEC.jpeg
Thumbnail of the uploaded file named D171C929-9567-4AFB-B2FA-77D891F8E80E.jpeg
Thumbnail of the uploaded file named 1BDD38A5-B013-4E2A-8ED8-62EE54CA70F5.jpeg
Thumbnail of the uploaded file named CB8FE601-BDEB-4DDD-8680-EFC970632807.jpeg
Thumbnail of the uploaded file named 4E8152D1-EB4D-48EE-89CA-D43A3D88A6B1.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Please see our 39-035 and 39-036 operators. I think these match up to what you have, but look over the information we show on their store pages and let me know if you agree.

As for the brackets, we don't have anything exactly like yours. Our 39-516 and 39-517 come close but I fear they may be too small compared to what you have now. You may need to reuse the originals.

Finally, it also looks like you need a new hinge. See our 36-048.

A quick learner from Pittsburgh, pa says:
Tom,
The operators, hinges, and bracket look pretty close to me. If I order the left and right sides of these parts and they don't fit or work are they returnable? I would also be getting the brown handles and covers. Do you think I would need the stainless clips or do they come with other parts? Appreciate your help.

Thanks, Tony
Profile picture of Tom
Tom from SWISCO responded:

Yes, you can see our return policy here. As for the clips, if you're referring to the detach clips at the end of the operator arm then these already come with them, so there's no need to purchase additional clips separately.
