Unique 23-D-40

Hello,

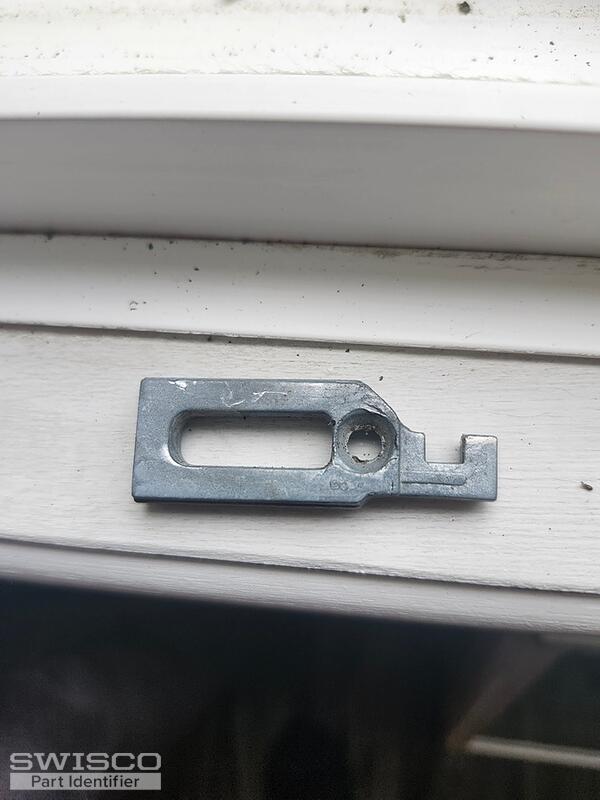

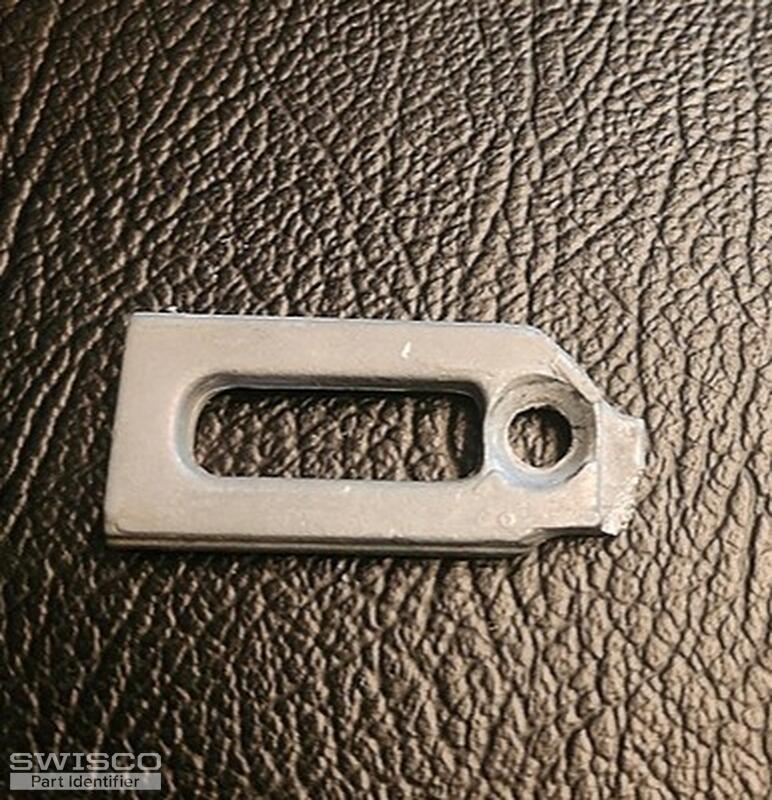

We'd be happy to look into this for you but the parts shown in your photos are too damaged to identify. If you could show us the metal clip attached to the end of the pulley cord of an undamaged balance, as well as an intact pivot bar removed from one of your windows, we can go from there. Than you!

Thanks for getting back to us. We carry the new style Harvey pivot bars, the 26-164. Please compare the dimensions below to see if they will fit in your window sash.

Alternate view of 26-164

Alternate view of 26-164

As for the balances, it looks like you'll need the S770 with the 62-105 hook attached, which we can supply through a custom order. Please confirm that the metal channel measures 23" long as well as the number of replacements you need, with the minimum being two. Thank you!

In that case, I'd recommend confirming that your window sash falls within the 22-25 pound weight range supported 24D strength options for the S770-24. If so, please verify the number of balances you need.

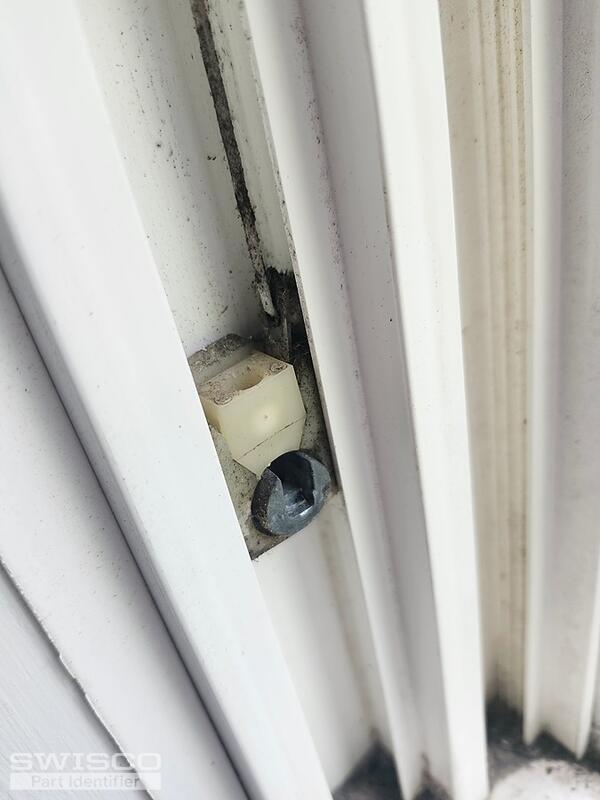

As for the pivot shoe, see the 15-105 and 15-056 pivot retainer.

Open position 15-105

Alternate view of 15-105

View of 15-105 in the Closed Position

Alternate image for 15-056

Thank you for confirming! We just sent over an order link and price quote for you to review. Before ordering the new balances, make sure to confirm that your originals install with a screw at the top. If they use an s-clip attached to the rivet, let us know and we'll be happy to send an updated link. Also, note that the link only includes the balances. The pivot shoes and pivot bars would be added to your order directly from our website. Take a look and let us know if you need anything else.

We see these from time to time where there is a screw on the side of the channel that wedges them in place. If that is how yours install, then you should be good to go.

Great!

We're happy to help! Just let us know if you need anything else.

That's great! We appreciate your business.
