Hi my name is Tom and I'm locking to repair my United Windows 4100 series White.
I'm locking for some vent lath and locks, annex is some pictures.

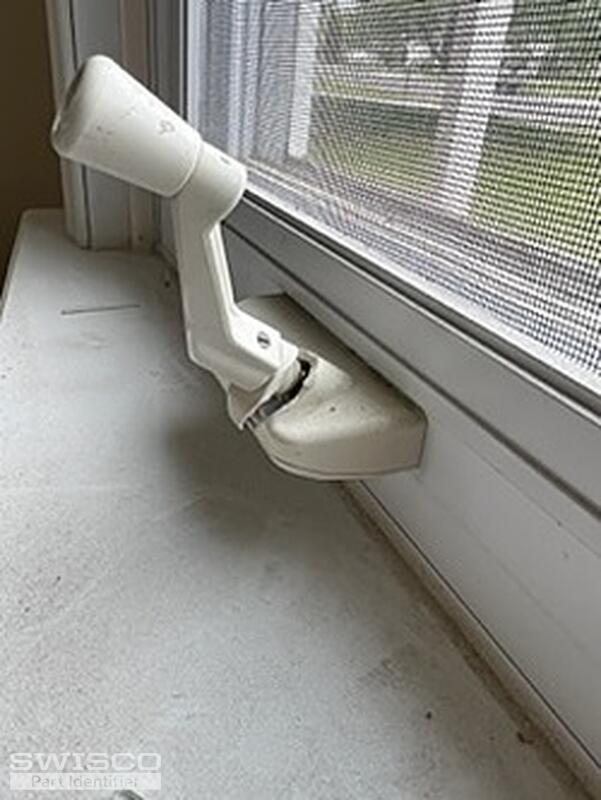

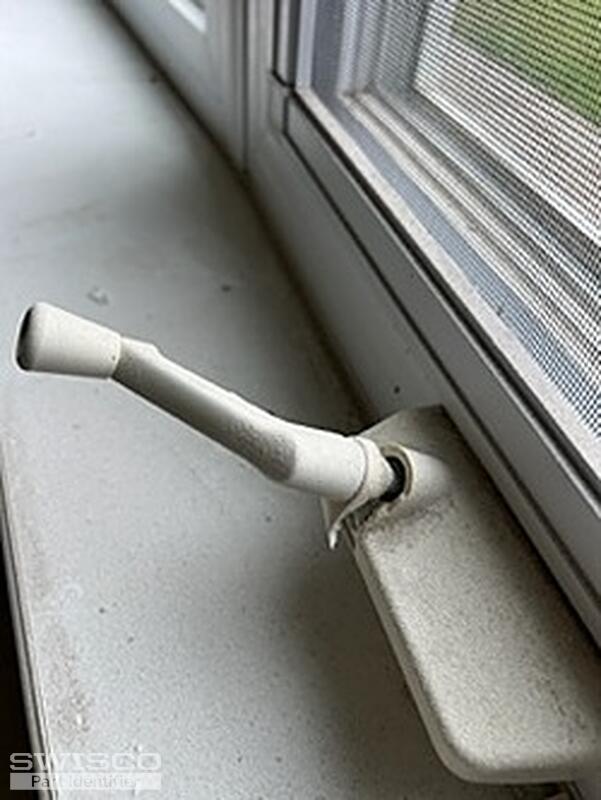

Also I have a casement window who need a hardware to close that windows, annex is some picture.
let me know if you have and the price.
Thanks
Hello, thank you for posting,
Please start by reviewing the style and dimensions of the 26-122 vent latch to see how it compares to your original.
For the lock, are you able to provide the distance between the installation holes from center to center. It would also be best to see an additional picture of the top view.
For the operator, we will need to see the window open where we can see a bird's eye view of the arm attachment(s). From there we can narrow down our selection for possible replacement options. Thank you!
Hi, thanks for answers.
a) the vent latch looks the same what I have.

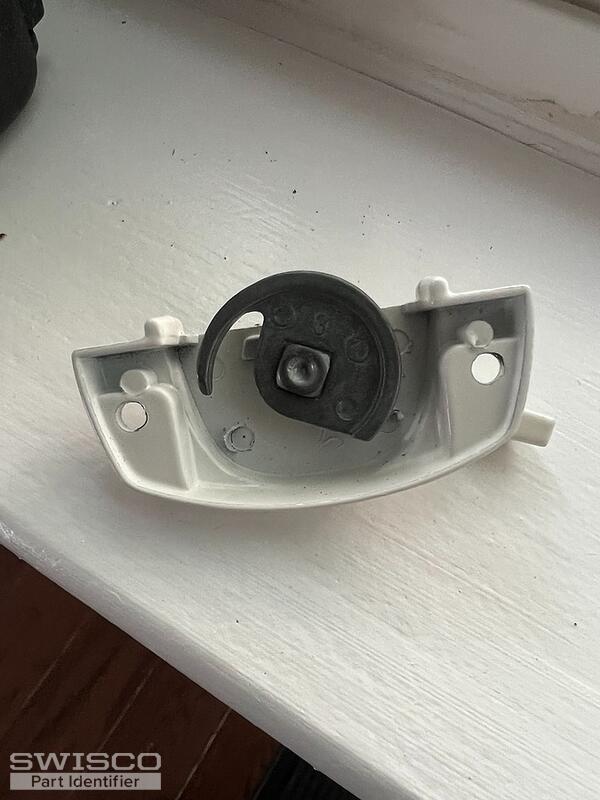

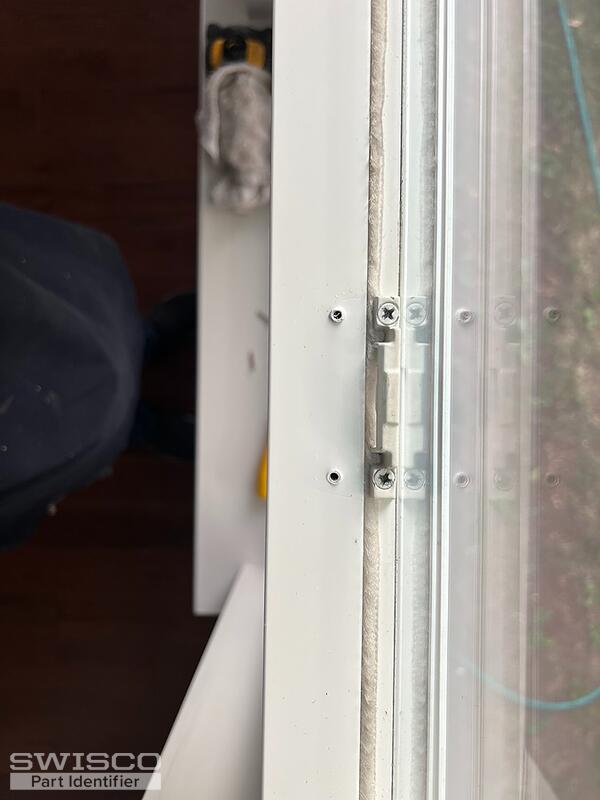

b) The Lock I attached some more pictures, the distance between the installation holes is 2-1/16".

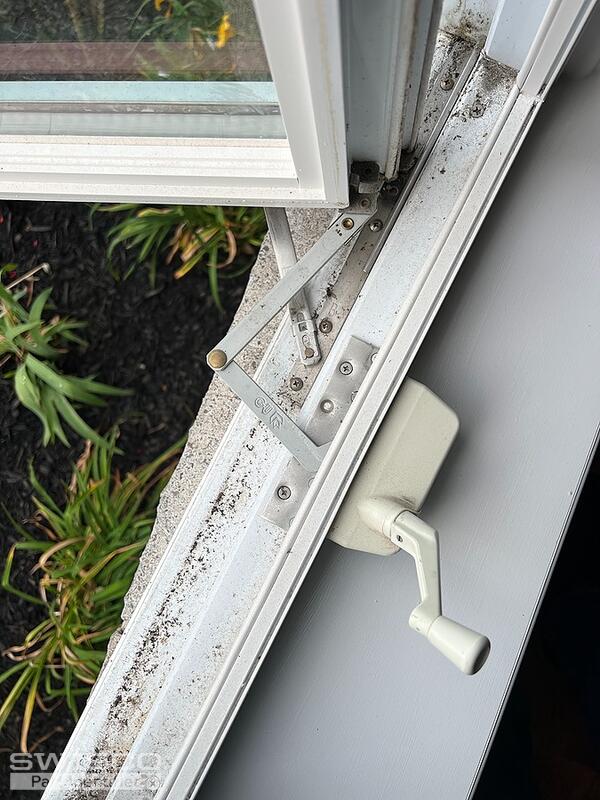

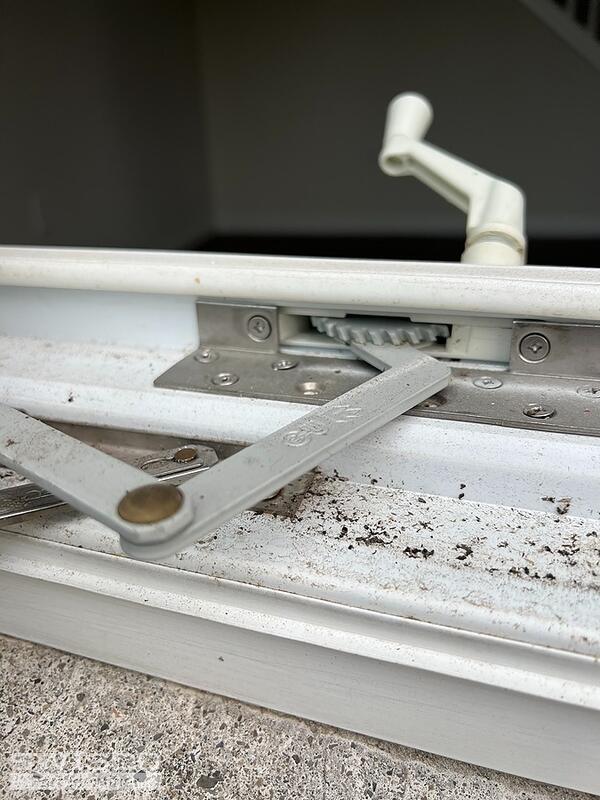

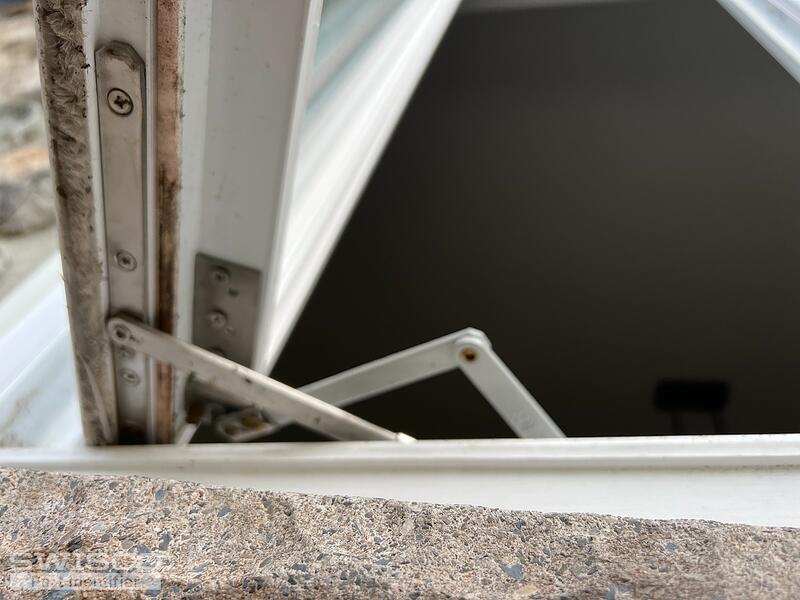

c) For the operator, attached is more pictures.
Thanks for your help.
Tom
Thank you for the additional pictures,
You have an older GU operator that is no longer made. We recommend taking a look at the 39-315 and 39-316 operators as potential replacements. This operator is compatible with the 39-114L handle. Take a look at the conversion video below for a step by step guide and additional parts needed.
We have a few different locks that have the 2-1/16" spacing. Please start by reviewing the 90-161, 90-077C or 90-077A locks to see which one matches up the best. Let us know what you think and if you have any additional questions.
