Various window replacement parts

A contractor from Concord nh says:
October 10, 2019
I need these parts both right and left

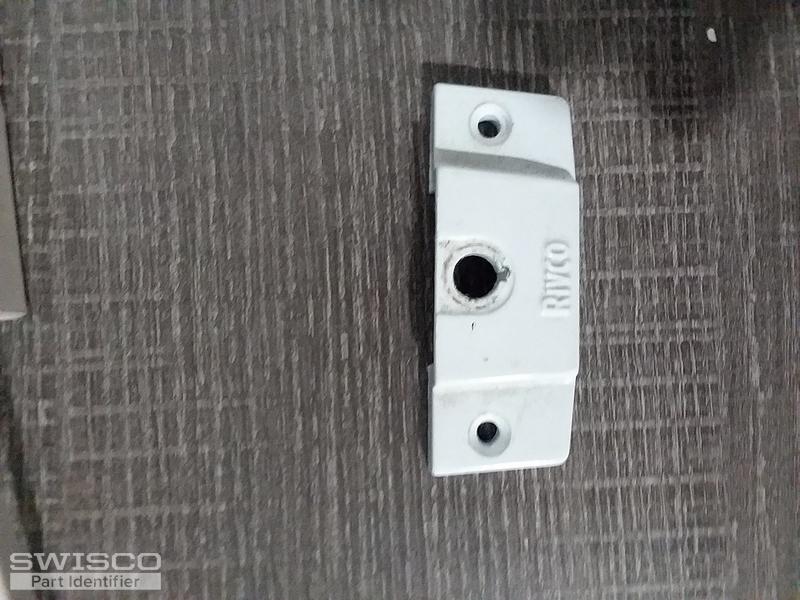

Thumbnail of the uploaded file named rivco1.jpg

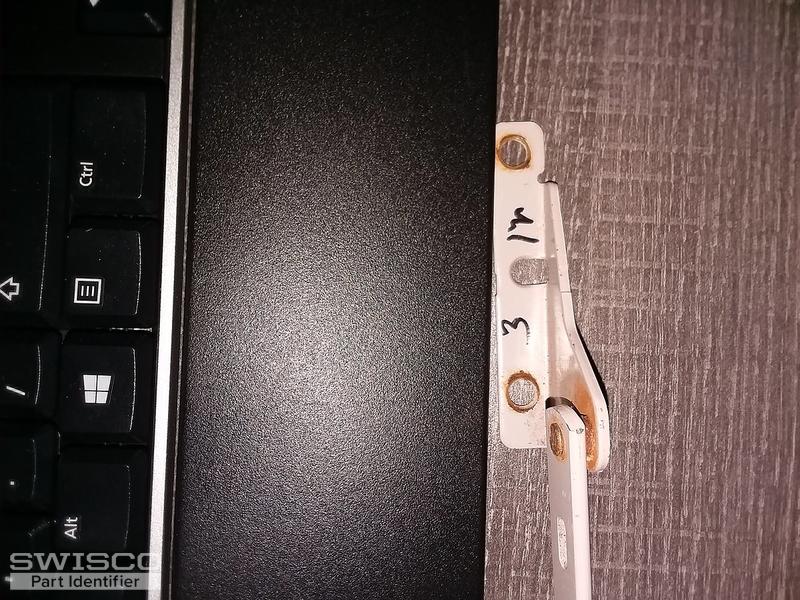

Thumbnail of the uploaded file named rivco2.jpg

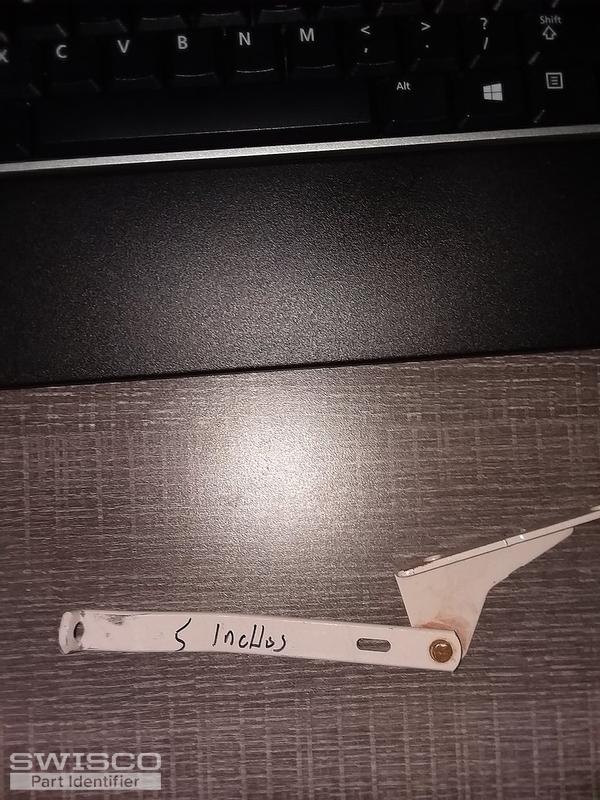

Thumbnail of the uploaded file named rivco3.jpg

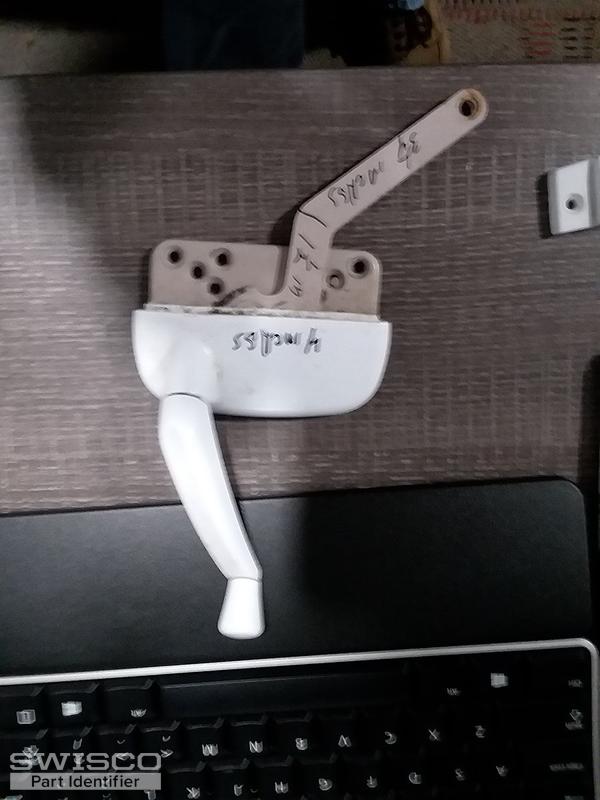

Thumbnail of the uploaded file named rivco4.jpg

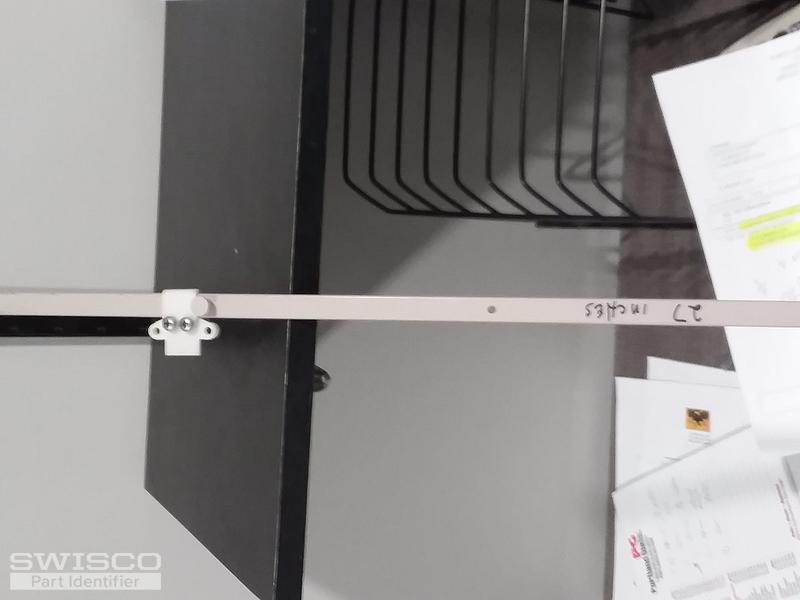

Thumbnail of the uploaded file named rivco5.jpg
Profile picture of Paul
Paul from SWISCO responded:
October 15, 2019

Thanks for sharing your photos with us. For your operators, we believe both our 39-315 and 39-316 are a match. Both our 39-114L crank handle and the 39-205 fold down handle can be used with these operators. For your stud brackets, you may want to consider our 39-545 and 39-546. I also notice a tie bar guide, which looks close to our 39-448. Lastly, I think you also showed us some sort of window lock. Could you confirm? If so, we need to see photos of one that is not damaged, and have you provide the screw hole distance measurement to narrow down a possible matching replacement. Review all the parts mentioned and let us know if any other questions come up.
Truth Dyad Operator
Truth Dyad Operator
39-315
$24.40
Truth Dyad Operator
Truth Dyad Operator
39-316
$24.40
Truth Snap-Stud Bracket
Truth Snap-Stud Bracket
39-545
$3.22
Truth Snap-Stud Bracket
Truth Snap-Stud Bracket
39-546
$3.22
Crank Handle, 11/32"
Crank Handle, 11/32"
39-114L
$4.42
Truth Folding Crank Handle, 11/32"
Truth Folding Crank Handle, 11/32"
39-205
$11.70
Tie Bar Guide
Tie Bar Guide
39-448
$0.90
