Viceroy Casement Operator

Home Owner from Blandford MA
I have a Viceroy Home built in 1989. I am looking for some replacement hardware in particular a Casement Operator. I know it is a Truth operator but I don't see anything on their website that is even close.

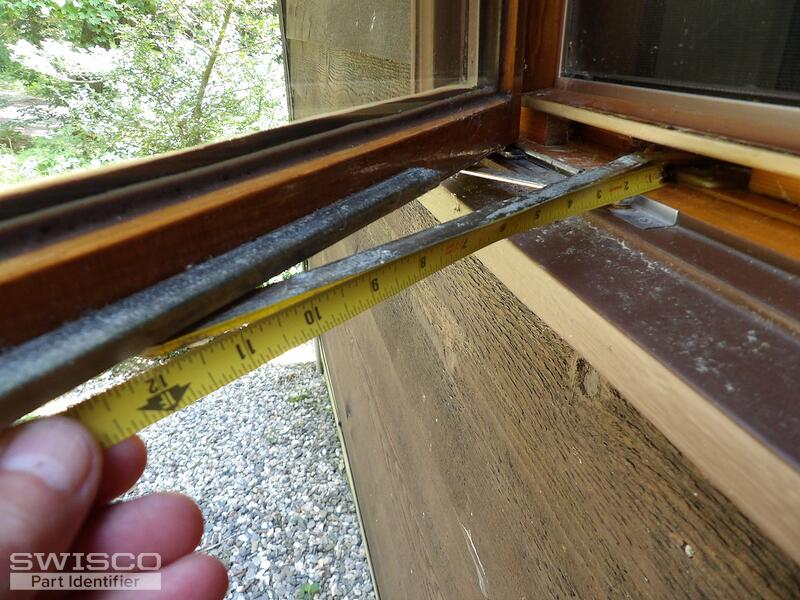

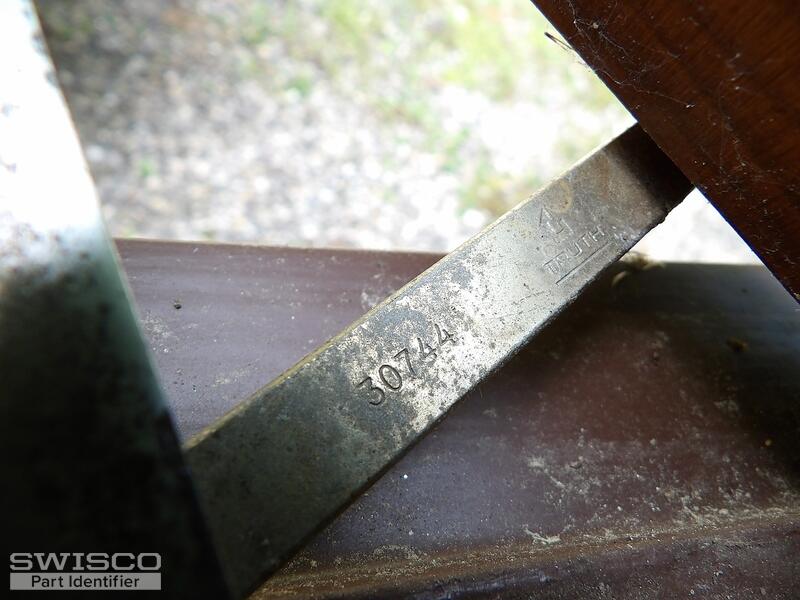

I can only find one number (30744) but that is on the hinge. The dimension of 12" is from the BEND in the arm on the inside end to the end of the arm.

I have been able to determine that the color is "coppertone" but have not been able to determine anything else.

ANY help would be greatly appreciated even if you don't have the part.

Thanks, Pete

5 user uploaded images
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Hello, Pete. I believe your operator is an older version of our 39-013. Look this part over and see what you think. Note that we measure arm  length from the center of the wheel bearing to the center of the gear. We also sell the 39-014 for the opposite handed side.

These are the newer "ellipse" style operators, which have a rounded cover. The old squared off style operator that you have now is unfortunately not manufactured by Truth anymore. Coppertone is also not a color option they provide; the 39-013 and 39-014 are only made in white, beige, bronze, and dark bronze. Sorry for any inconvenience that may cause.

All orders can be placed on our site at your convenience.

Dimensions for 39-013
Dimensions for 39-013
