Viking, series M-80; 23 and 29 inch channel replacement

A quick learner from California says:
May 20, 2020

The rail is approx 3/4 inch wide and deep.

I can't match it up with anything I see on the site under 23" (2240).

Looking for complete unit and caps that are mounted on the window as well.

Also looking for 29" (2840).

Thank you for the help.

Mike

Thumbnail of the uploaded file named 20200520_141909.jpg
Thumbnail of the uploaded file named 20200520_141855.jpg
Thumbnail of the uploaded file named 159000974913490176716.jpg
Profile picture of Tom
Tom from SWISCO responded:
May 22, 2020

Based on your photos, you have either our S390-23 or S351-23. The only difference between them is the size of the bottom fitting, which is indicated on their respective store pages. You'll need to measure your bottom fitting to confirm which one is best.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
A quick learner from California says:
May 22, 2020
Hi Tom,
Thank you for the the info. Looks like 1 1/8, so I will go with the S-390. Just wanted to verify with you that these replacement "metal shafts" are approx 9/16 wide and deep? Not sure if it makes a difference, but that is the size of the originals.

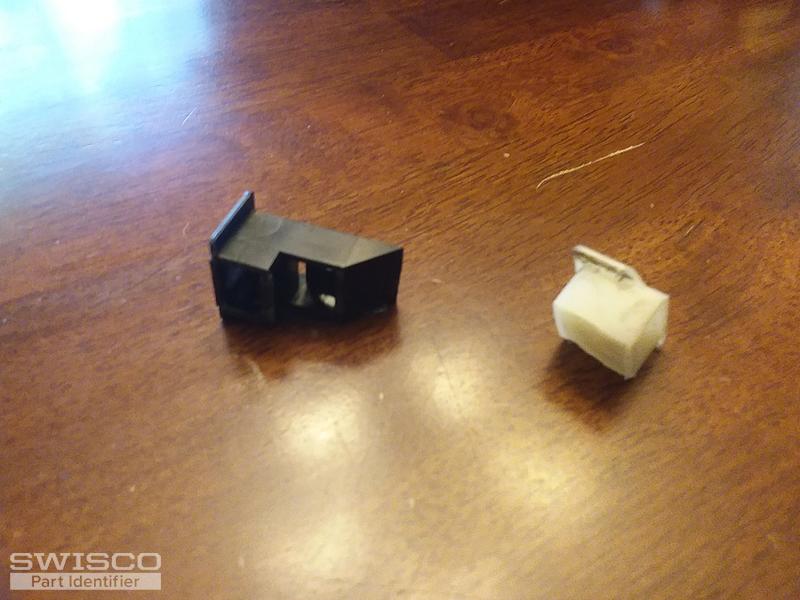

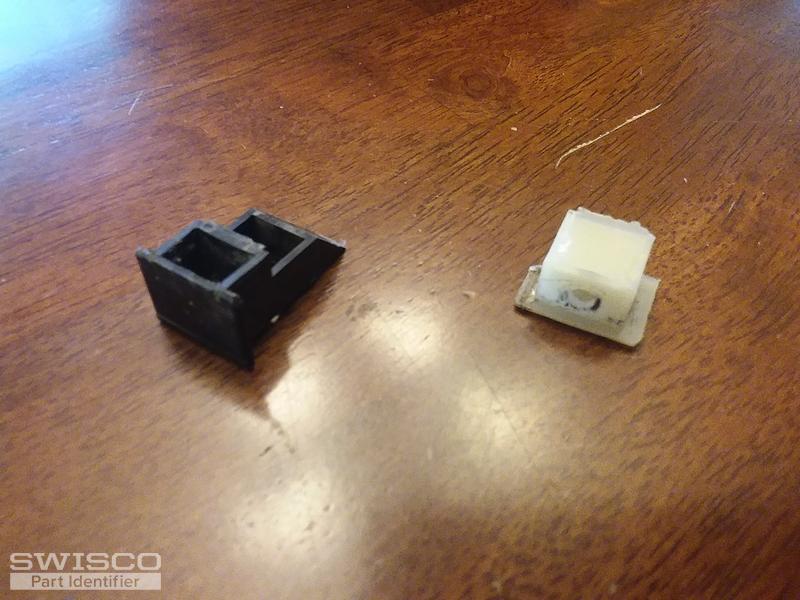

I also need the plastic pieces shown below. They are located on the top corners of the window.
The black one is on the 29" tall window. The white one is on the 23" window.
Thank you again for the help with this. Hope you have a great holiday weekend!
Regards,
Mike
Thumbnail of the uploaded file named 20200522_165910.jpg
Thumbnail of the uploaded file named 20200522_165853.jpg
Profile picture of Tom
Tom from SWISCO responded:
May 26, 2020

Hey, Mike. Yes, the metal channels on ours are *technically* considered 1/2" x 1/2", but between you and me it's closer to 9/16". I'm confident that won't be an issue.

These plastic parts are called top sash guides. These are tough to ID without precise dimensions. The black one may match our 18-166, but the white one is too damaged for me to help with. I recommend carefully comparing your dimensions to those we show on the 18-166 store page. Ditto for the white one, just in case, though if neither match then we'll need more detailed information and photos so that we can find something better.
A quick learner from California says:
May 26, 2020

Hi Tom,

So it appears the black and white top sashe pix I sent before are the same size, so that makes it easier. As for the example you sent me, it seems close, but not sure it is exact? Or needs to be for that matter?

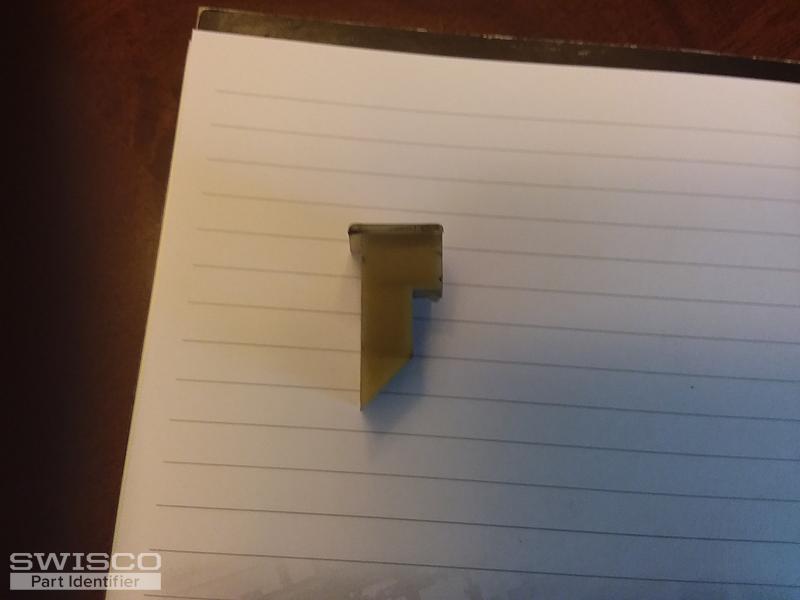

Referring to the first pic below (side view).

Your sizes in left column, mine in the right :

  • 1/2 inch to my 5/8 depth
  • Length is same at 1.5 inches
  • 5/8 to my 1/2 height of top compartment
  • 5/16 to my 3/8 depth of lower compartment

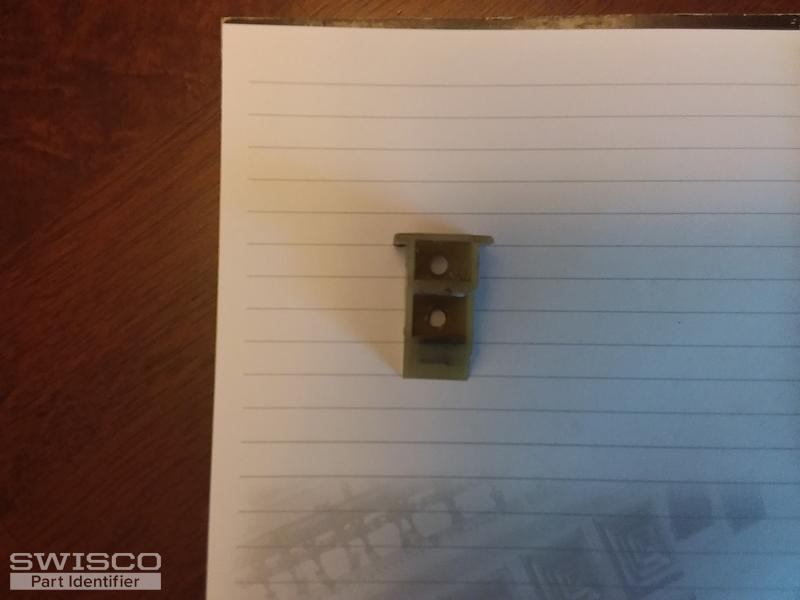

Referring to second picture of the "front view"

Bother the width at the top and bottom match

  • Top hole matches at 3/16
  • 7/8 to my 3/4 on bottom hole.

Hope that all makes sense? Please let me know if the 18-166 Will work, is there a better match.

Thx again for your help and patience

Mike

Thumbnail of the uploaded file named 20200526_140732.jpg
Thumbnail of the uploaded file named 20200526_140712.jpg
Profile picture of Paul
Paul from SWISCO responded:
May 28, 2020

Most people with Viking windows in California have used the 18-009 black top sash guides. I think this may be what you want, especially since it's closer to your dimensions.
A quick learner from California says:
May 28, 2020

Tom And Paul,

Thank you very much for all the help!

Just placed my order

Regards,

Mike
