Vinyl Window Sash Pivot Bar
Handy Person from Houston
Mar 6, 2025 7:16 pm

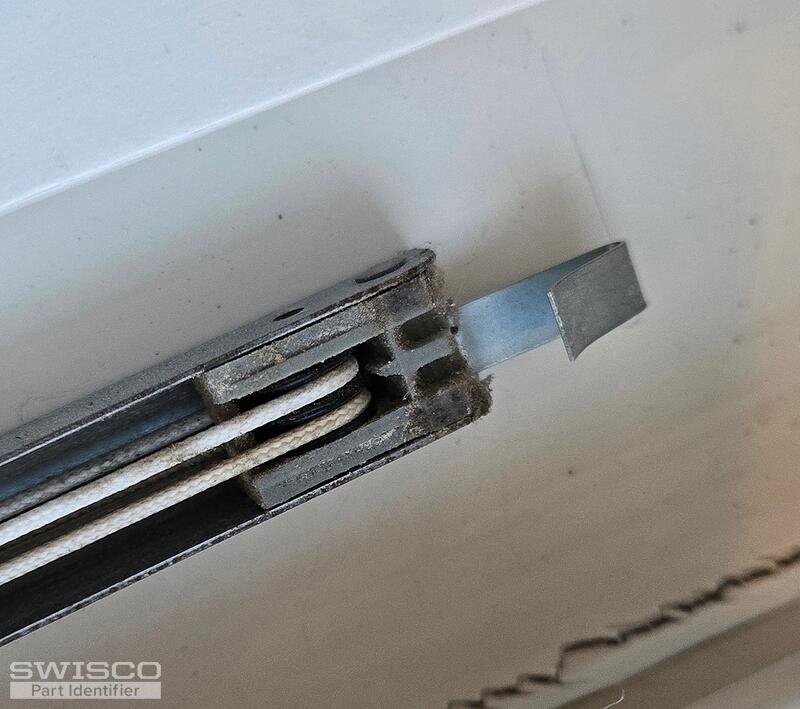

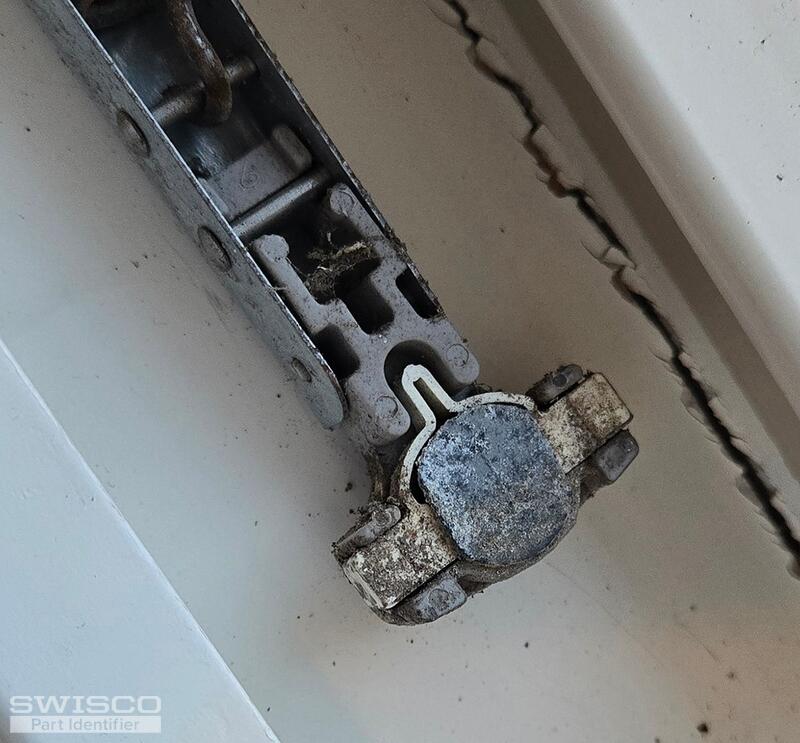

I have some windows that need some combo of T-Lock Shoes, Channel Balances, and pivot bar. Some of my pivot bars rusted and broke off still stuck inside the T-Lock shoes. I have attached pictures of the pivot bar, T-Lock, and Channel Balance. I think I know what parts I need for the channel balances and shoes (27D Series 795 and 15-195 shoes. However, my pivot bar looks slightly different that the two models available. I have attached pics of everything. Looks like my window only has one screw hole to hold in place the pivot bar, not two, but I think what I will work is 26-366? Thank you.
5 user uploaded images
2 Replies
Casey from SWISCO
Mar 7, 2025 1:41 pm
Hello,
We'd be happy to help but it looks like your balances use the 15-198 clip, which we can attach to the S795-27 (27D) through a custom order. We'll just need to know the number of balances you need, with the minimum being two.
How to measure the length of the Series 795 channel balance.
Detail of 15-198
Profile view of 15-198
We'll also need to see photos of an intact pivot bar fully removed from the other side or an identical window to compare to our inventory. See the videos related on this page to help you through the process. Thank you!
