Vinyl window coil balance parts

Quick Learner from Franklin square
Need help to replace window balance

Coil says #5.0 and 35"

Plastic bright white coil holder says 3/8 dual (don't need this replaced)

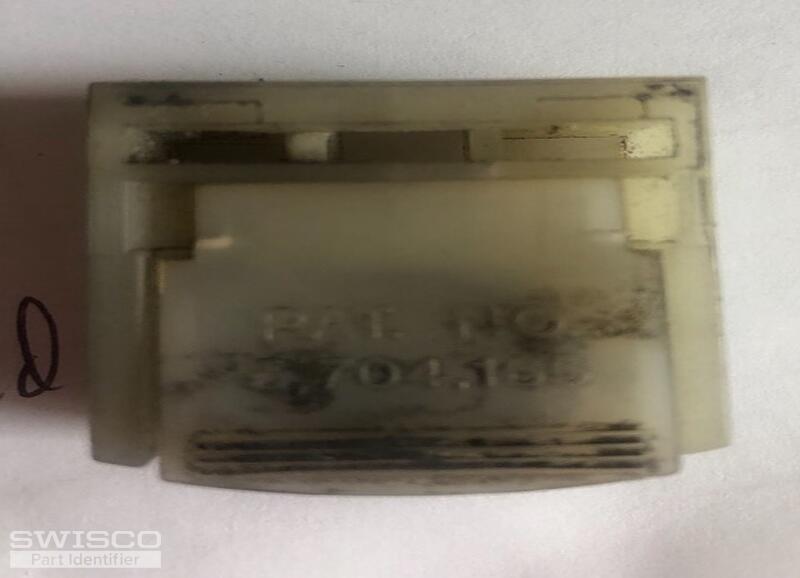

Bottom coil latch is 1 7/16 length and 1 1/4 width

Please me me find the correct parts thank you
5 user uploaded images
3 Replies
Quick Learner from Franklin square
window size 24X36

metal coil is 3/8 width

I believe I found the correct parts which are:
5lb coil 3/8 35L part #5165-5 (need two for each side)

and the pivot shoe 17/32 part #15-199 just would like someone to verify if that is correct, thanks.
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

I agree that the 15-199 pivot shoe and S165-5 coil spring, along with the related items on the product pages, would be the correct replacement hardware based on the information you've provided. Thanks for posting!
