WINDOW BALANCES AND tilt sash replacement parts

A handy person from New Jersey, USA says:
October 5, 2022
Hi - I need help with ordering replacement balances for 2 different size windows that seem to be manufactured by a company called MW ( I will send pic of logo)- they were provided in a modular home I built in 2006.

in both windows one side of the window balances is broken inside- I have pics with tape measures shown to show the length of the metal case (appear to be 30 and 32 inches) as well as their width ( 9/16 in). I also have several pics showing the broken internal works of the balances. The orientation of the mechanisms is the spring on the lower end attached to a block and tackle above that attaches to a clip that fits into the top of the vinyl window frame.

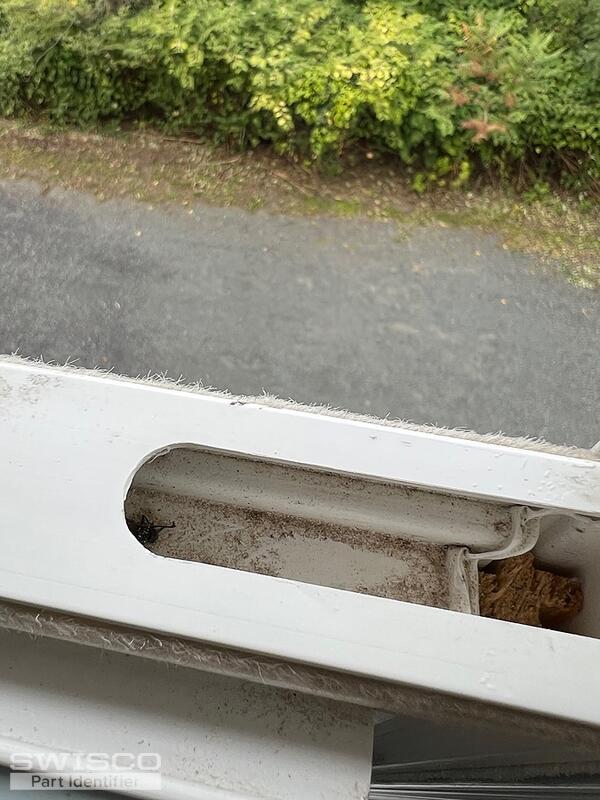

Also there is a latching part missing from one window that I need to replace. I have included two pics of the existing and the missing one.

I only just realized that I can only attach 5 photos- I have others if more detail is needed
Thumbnail of the uploaded file named IMG_0559.jpg
Thumbnail of the uploaded file named IMG_0563.jpg
Thumbnail of the uploaded file named IMG_0564.jpg
Thumbnail of the uploaded file named IMG_0566.jpg
Thumbnail of the uploaded file named IMG_0569.jpg
Profile picture of Casey
Casey from SWISCO responded:
October 11, 2022

Hello,

Your balance reminds me of the S795 but we would need to see an undamaged assembly fully removed from the window, including the t-lock shoe and metal clip attached to the end of the pulley cord, to confirm the correct replacement. There is also a stamp on the metal channel that you will need to choose the corresponding strength option for your replacement balances.

We'll also need to see photos of an undamaged tilt latch removed from one fo your windows, along with written-out dimensions, to compare to our inventory. Thank you!
A handy person from New Jersey, USA says:
October 12, 2022

Hello,


I am looking to purchase (2) of each of these balances with a 15-194 shoe and a 15-198 top hook:


S795-30 option 30B, S795-32 option 32C


Please let me know if you need any other information from me.

Profile picture of Casey
Casey from SWISCO responded:
October 13, 2022

Thank you for confirming the balance specifications that you need. We just sent over order links and price quotes for the balances you've requested. Take a look and let us know if you need anything else. Thank you!
30" Series 795 Channel Balance
30" Series 795 Channel Balance
S795-30
$13.87
Balance Clip Attachment
Balance Clip Attachment
15-198
$0.70
1" T-Lock Balance Shoe, Closed Cam
1" T-Lock Balance Shoe, Closed Cam
15-194
$2.05
32" Series 795 Channel Balance
32" Series 795 Channel Balance
S795-32
$14.52
