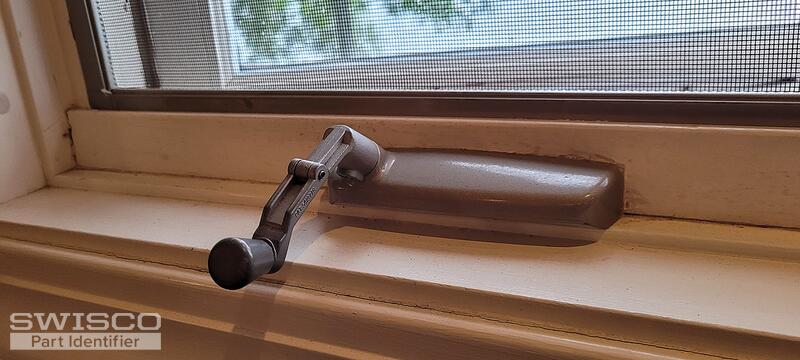

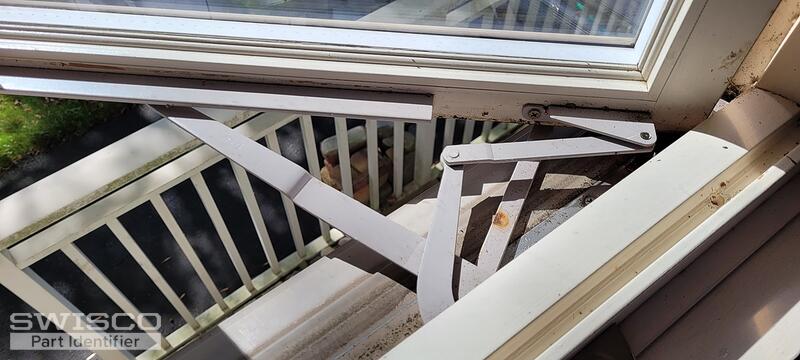

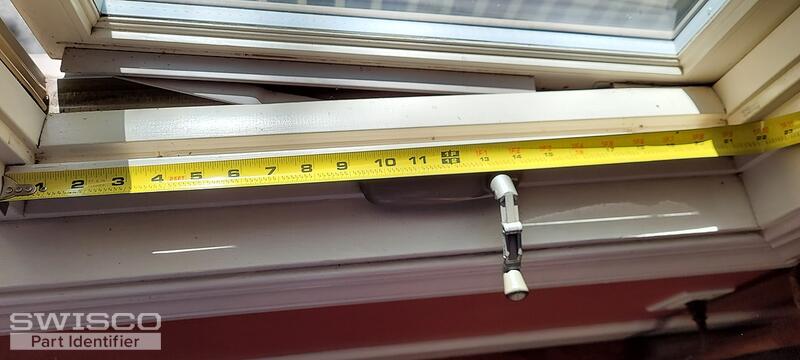

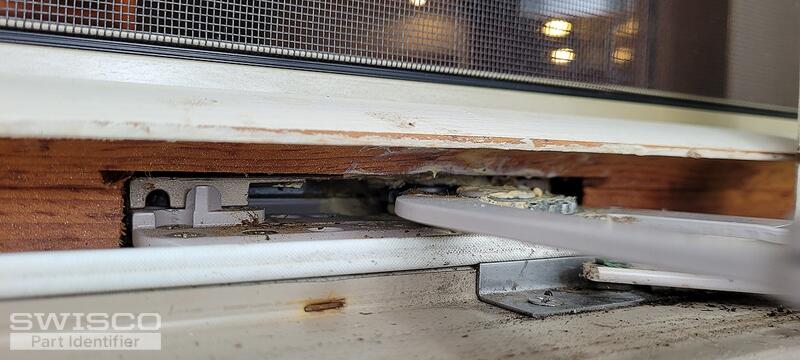

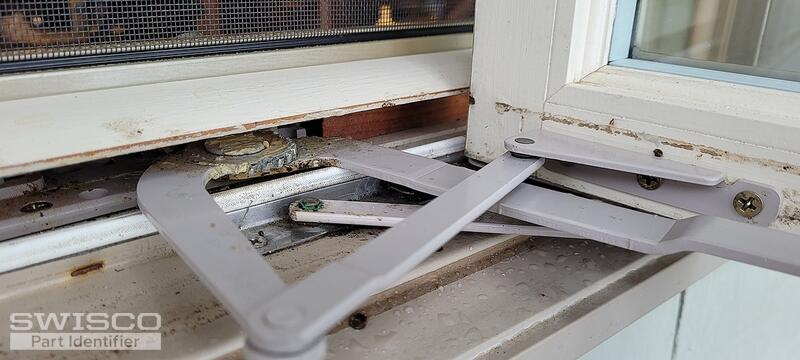

The crank mechanisms for Bonneville windows in our home have failed. We need replacements for them in order to use the windows. I have uploaded some pictures and have measurements for what we need. The only thing I can see on the part is "Truth", no other markings. Date on the back, made in USA. I would like to order a couple of them first to make sure they work before ordering all we need. I have uploaded some photos but would also like to speak to someone before ordering to make sure we get what will work in our application. Thank you. Anita
We are in need of replacement mechanisms for Bonneville casement windows

Home Owner from Colchester, VT
Apr 22, 2023 8:49 am
5 user uploaded images
2 Replies

Lauren from SWISCO
Apr 24, 2023 10:56 am


Hi Anita, thank you for posting,
Your operator resembles either the 39-438B and 39-439B or the 39-253LB and 39-253RB operators. The difference between these two styles is the guide at the end of the straight arm. Please review the video below that goes into more detail.
Also review the 39-451 and 39-452 or 39-375 and 39-376 cover/handles depending on style preference. Let us know if you have any additional questions.
