Weathershield window crank replacements

A quick learner from Florida says:
January 5, 2021
Good morning,
We are looking to replace window cranks on all the Weathershield windows at our project - the client added shades that are interfering with the cranks, and we are trying to find something that would be flatter to replace the old cranks.
Here are the measurements once the crank is removed, any recommendations? Thank you!
Thumbnail of the uploaded file named IMG_8483.jpg
Thumbnail of the uploaded file named IMG_8482.jpg
Profile picture of Casey
Casey from SWISCO responded:
January 6, 2021

Hello,

We'd be happy to look into this for you but we would need to see a photo of the operator with the window open so that the arms that move the sash are visible, which will tell us what handles are compatible with this assembly. Thank you!
A quick learner from Florida says:
January 8, 2021
Here they are! My client would like to replace the crank though, we're looking for the smallest alternate we can use, would the round knob work?
Thank you!
Thumbnail of the uploaded file named IMG_0996.JPG
Thumbnail of the uploaded file named IMG_0995.JPG

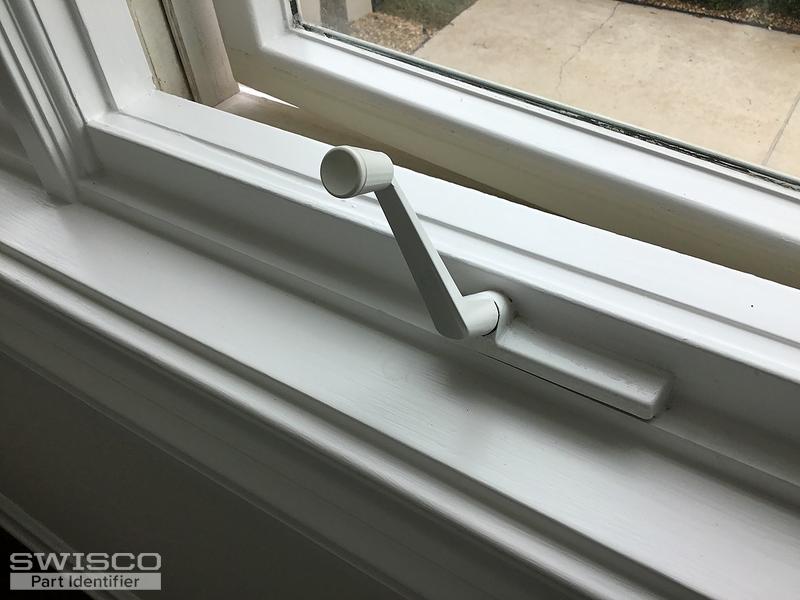

Thumbnail of the uploaded file named IMG_0994.JPG

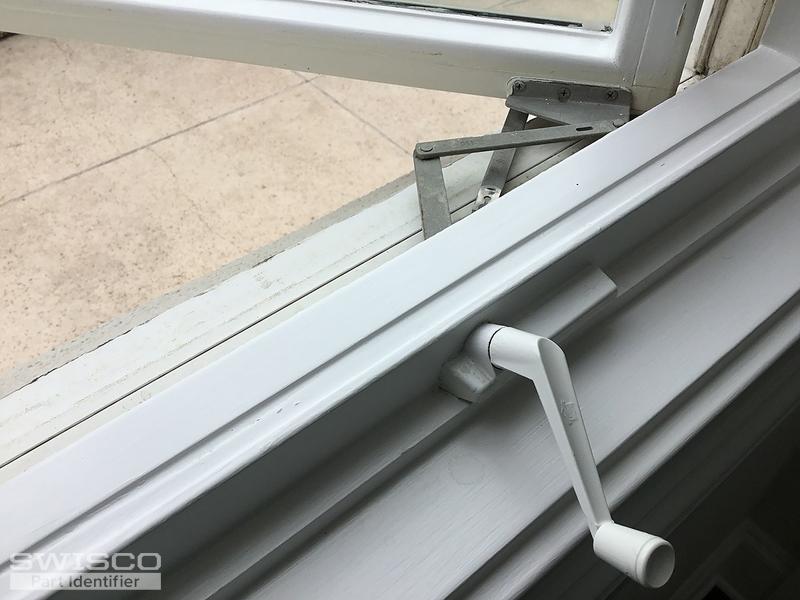

Thumbnail of the uploaded file named IMG_0993.JPG
Thumbnail of the uploaded file named IMG_0992.JPG
Profile picture of Casey
Casey from SWISCO responded:
January 8, 2021

 If you just need the handle, please see our 39-114L or 39-102 crank handles. However, if you are looking to replace the actual operators, take a look to see if the dimensions of our 39-315 and 39-316 could work for you.
Truth Dyad Operator
Truth Dyad Operator
39-315
$24.40
Truth Dyad Operator
Truth Dyad Operator
39-316
$24.40
T Handle, 11/32"
T Handle, 11/32"
39-102
$7.45
Crank Handle, 11/32"
Crank Handle, 11/32"
39-114L
$4.42
Crank Hand Knob, 11/32"
Crank Hand Knob, 11/32"
39-115
$17.24
