What part is this and how do I replace it

Quick Learner from Virgina Beach

Mar 18, 2022 8:37 am

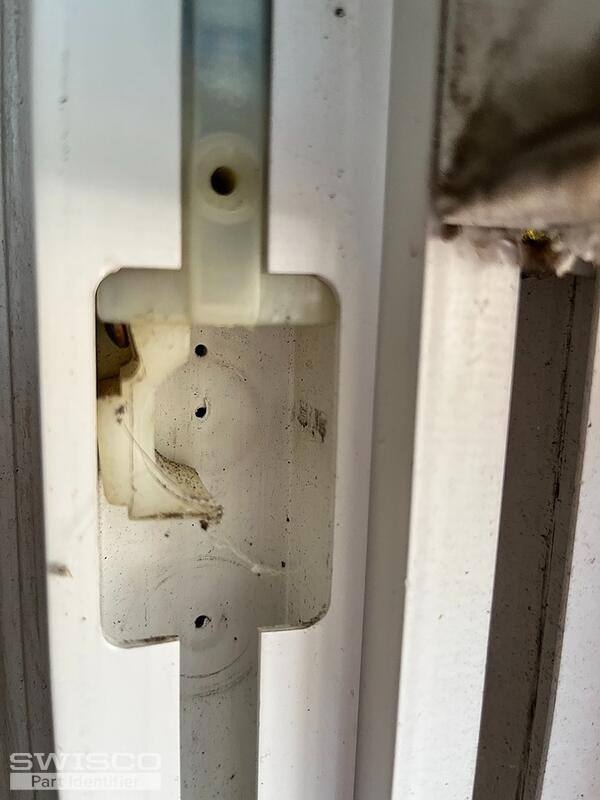

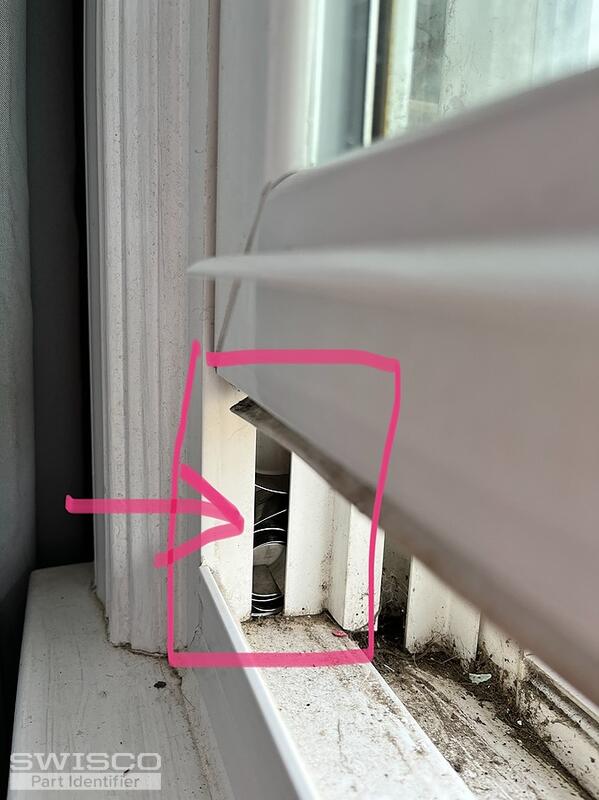

I need to replace a window part and I don't want to pay $400 for someone to do it. What part is broken in the images, there is a metal coil that looks like it is broken sitting in the bottom of the window. I can barely open and can't close the window. I can change the part myself if it's not too hard but don't have a clear idea of what it's called. I believe these were installed by home depot before we bought the house. TY.

2 user uploaded images

8 Replies

Emily from SWISCO

Mar 18, 2022 1:51 pm

Hi there!

The part in your pictures is called a coil balance assembly. We can definitely help but we'll need to see a picture of your pivot shoe removed from the window, along with dimensions, to compare to our inventory. If we can ID the pivot shoe, that will tell us the coils and accessories that you’ll need. I'll also post a few videos below that you may find helpful.

Let me know if you have any questions!

Quick Learner from Virgina Beach

Apr 25, 2022 9:13 am

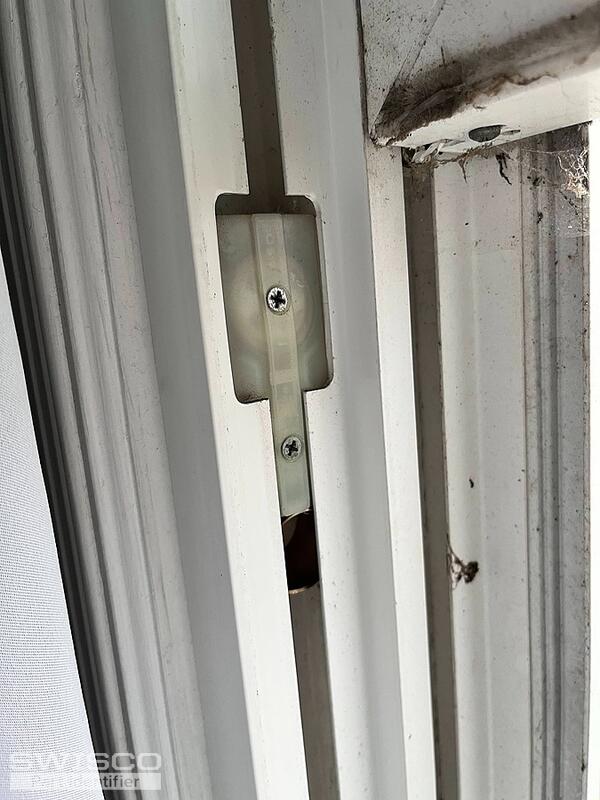

the piece for the above window is jammed in there but I now have another broken piece and am showing images from that window. I'll need to replace 2.

2 user uploaded images

Emily from SWISCO

Apr 25, 2022 10:12 am

Thanks for the additional pictures! You have an old Simonton balance that isn't made anymore but take a look at the video below where we walk you through the entire replacement process, along with the other parts that you'll need for this repair.

Quick Learner from Virgina Beach

Apr 25, 2022 1:21 pm

Thank you. Do you have the piece for the coil balance assembly as well. I'll order this all together.

Emily from SWISCO

Apr 25, 2022 3:33 pm

Sure, it looks like you have a double coil support but please correct me if I'm wrong. If that's the case, see the 15-256.

Quick Learner from Virgina Beach

May 4, 2022 12:24 pm

Thank you. If you look at the original question, It looks like the coils broke. I need the part that has the coil balancer as well. I see the pivot shoe but need the balancer as well. The entire piece both top and bottom, the coil balancer and Pivot shoe. I see the coil support and pivot shoe you sent over but no coils.

Emily from SWISCO

May 4, 2022 12:42 pm

If you watch the video I linked you to previously, you'll see all the parts we recommend for the 15-259 conversion which is designed to work with the Series 159 coil springs.
