Paul from SWISCO responded:
August 20, 2018

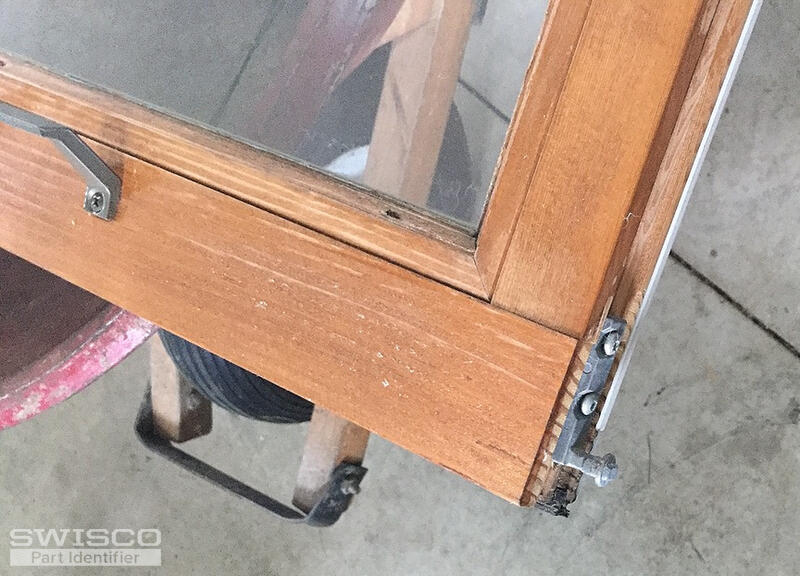

Greetings from SWISCO. Our 15-175 pivot shoe should be able to replace your existing one. Look over the measurements just to be sure. These are used with the Series 152 coil springs. In order to know which one to go with, we will need for you to get back to us with the stamped number that appears on your coil. The other photos you attached shows an installation screw to hold the window frame to the house. For the other parts mentioned, we placed some media guides on this page should you need any further assistance. |
OK, I AM READY TO ORDER PARTS ONCE WE FIGURE OUT WHAT SPRING I NEED.

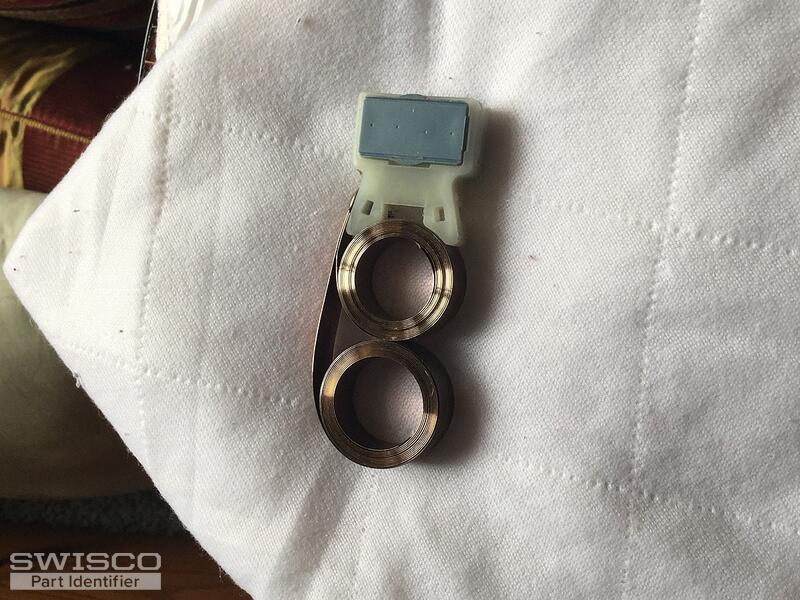

THE ONLY THING I CAN FIND ON THE SPRING IS ?DL? arranged vertically right above the screw going into the window pivot, also my springs are a double roll where you only show a single roll in above photos, must I unroll the spring in order to find some other spring number?
Also is there a difference between the left and right side springs and coil balance shoe? It appears to me there is.
I want to order 4 of the pivot brackets shown above this thread, that mount on the bottom of the windows.
I think I will order 8 of the COIL BALANCE SHOES WITH SPRINGS once we figure out the proper part numbers.
Thanks for your help,
Norm
|
Tom from SWISCO responded:
August 27, 2018
Thank you for contacting us. Like Paul said before, we recommend our 15-175 shoe and Series 152 coil spring. I think you might need our S152-4, based on your stamp, but you should weigh your sash just to be sure. Each S152-4 spring carries 4 pounds each, so having two on each side adds up to 16 pounds of support. That should be how much your sash weighs. There is no difference between the left or right side. The 15-175 shoe and S152-4 spring works on either side interchangeably. We weren't able to find that pivot shoe, unfortunately. The manufacturer suggests using the 26-423 as a substitute, but you will have to cut off the top bent arm and the bottom angle bracket. |
|
|
Tom from SWISCO responded:
August 28, 2018
That is pretty heavy! We may need to fudge the numbers a bit. You have two options: you can use two S152-6 springs on each side, which adds up to 24 pounds. That will be a little bit weaker than your old springs. The other option is using one S152-6 and one S152-7 on each side. This will carry 26 pounds, which is a little bit stronger. Will one pound make a difference? Probably not. But you can never be too sure in this industry. In a worst case scenario, weak balances can't support a sash and it will droop a little when you open it, while strong balances won't let you close it. But again, I don't think you need to worry about either circumstance. I don't think 1 pound either way is going to do anything. |
