Hello,

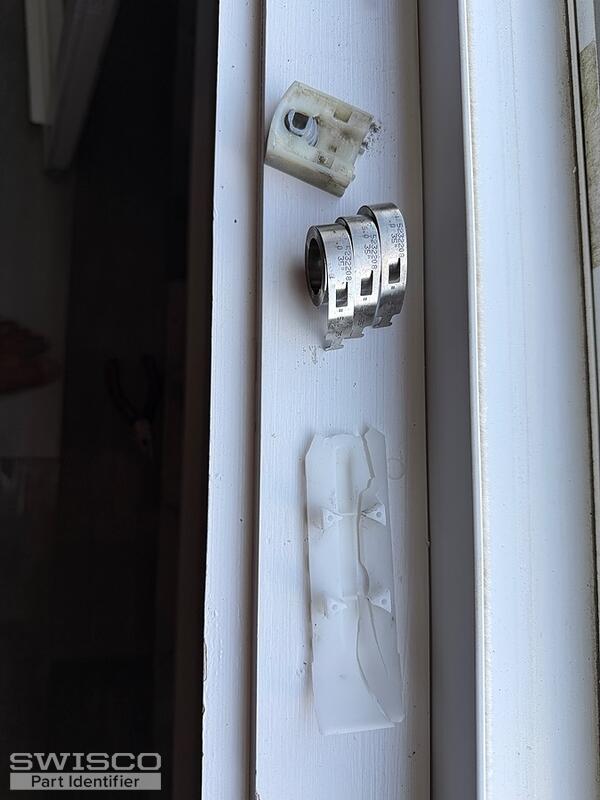

We'd be happy to look into this for you, but we would need to see photos of your coil spring and pivot shoe removed from the window jamb to compare to our inventory. We'll also need to see an intact tilt latch uninstalled to narrow down your options. See the videos related on this page to assist you. Thank you!
Take a look at the 17/32" thick 15-199. This isn't an exact match for your original pivot shoe, but it's similar. Review the thickness and width compared to your hardware.
This pivot shoe is compatible with the 3/8" Series 165 or 1/2" Series 160. You'll need to measure your coils and check them for stamp codes to choose the corresponding strength options. Some of your stamps appears to have wiped off, so you can also weigh the sash divided by the number of coils used on both sides.

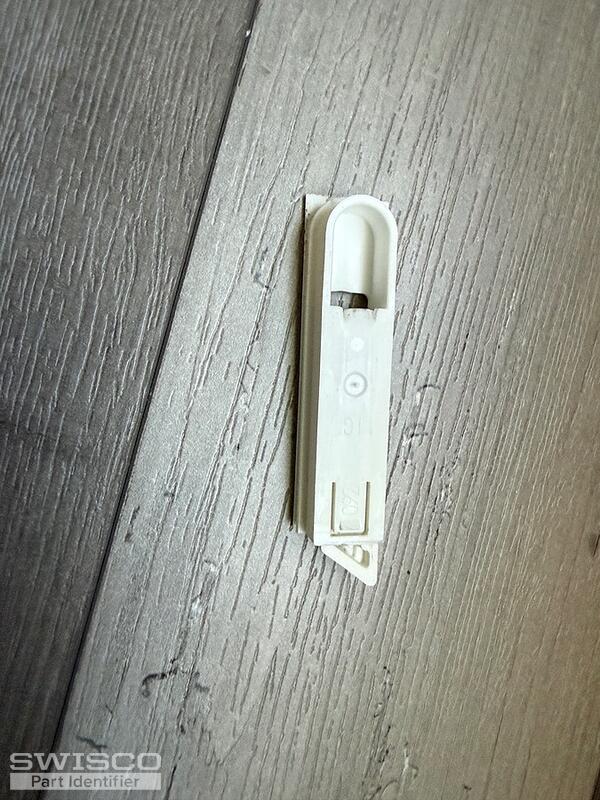

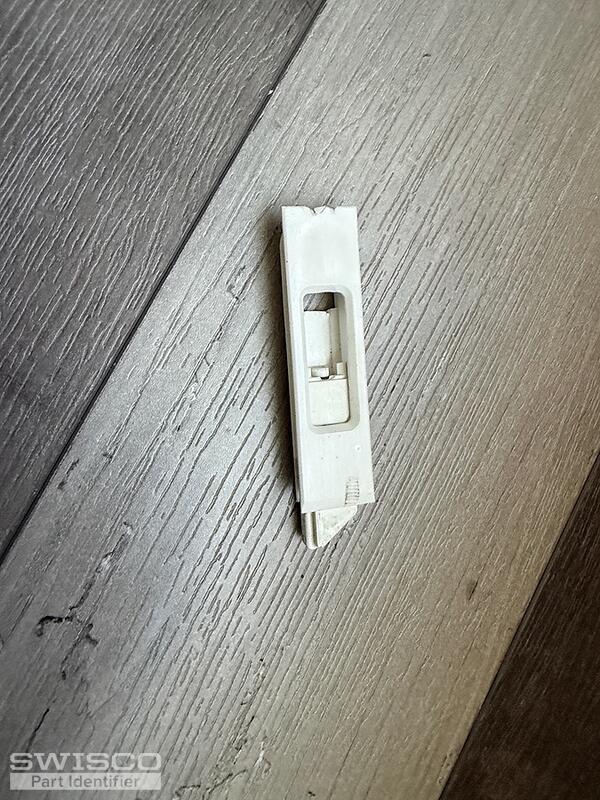

As for the tilt latches, your new photos still show a damaged latch, but the 26-243A and 26-244A would be a good place to start. Review the specifications below to determine if they match your latches.
1. So tilt latch what you have suggested would work.
2. Regarding coil support, you have provided show P/N and coil P/N but I think pivot shoe what I have is good and just need to change coil may be. You are saying in order to use coil you have suggested, I have to change pivot shoe I have? Also, can you plesae suggest what coil support P/N I can use? I have tripple coil in this window. Thanks!
If the specifications of your original pivot shoe match the 15-199, you can reuse them with the new coil springs. You'll still need to measure the width of the original coils to determine if you need the 3/8" Series 165 or 1/2" Series 160. Since some of the stamp codes are worn off, you'll also need to weigh the sash to calculate the strength options for the new coils as we mentioned.
And for coil support, would Product Code: 15-205 work?
The cover you need would depend on the coil series you have. The compatible covers are listed under the related items section of the coil spring product pages.
Great! We appreciate your business, and we'll be here if you need anything else.
