Coil balance for Simonton Window

Start a new Discussion

Quick Learner

Jul 17, 2018 6:01 pm

Please help me get the needed parts for my Simonton Balance on a Double Hung Window

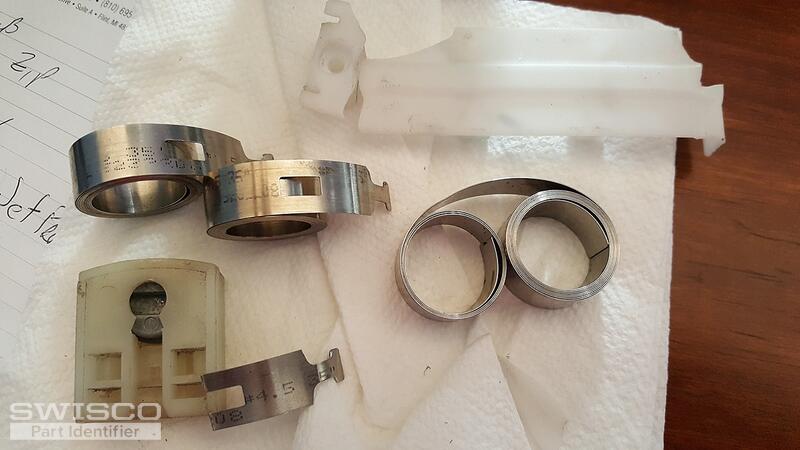

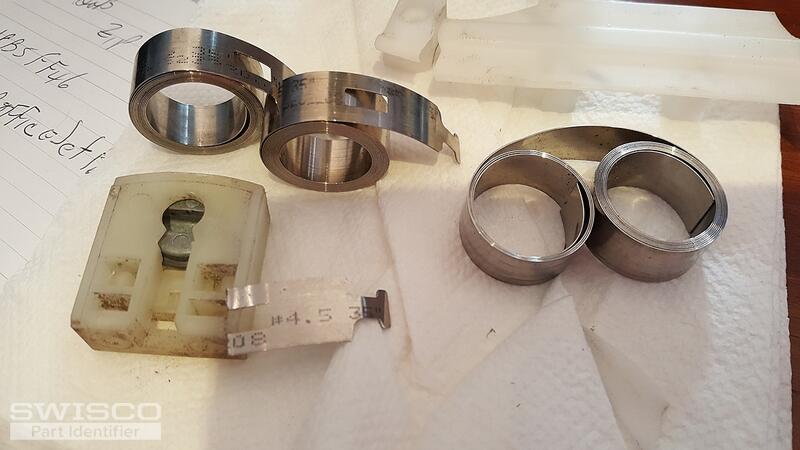

4 user uploaded images

6 Replies

Tom from SWISCO

Jul 24, 2018 9:53 am

Based on your photos, I recommend our 15-199 pivot shoe and Series 160 coil spring. I can't quite make out the stamp on your old spring from your photo, but that should tell you what Series 160 option will work for you.

Quick Learner from MI

Jul 25, 2018 10:02 am

Hi Tom, appreciate all of your help.

Can you help me get new right and left balance cover part numbers.

Also some directional video on to how to assemble coil springs and to put them in operational order?

Thank you in advance, Deb

p.s. the previous item we worked on together works like a charm - could not do it without Swicos great folks.

1 user uploaded image

Tom from SWISCO

Jul 31, 2018 10:02 am

The hardware I recommended can work for both the left and right hand side interchangeably. As for how to assemble them, they should hook into one another. The "T" shaped end of one spring will fit into the rectangular hole of the spring underneath it, and so on. The final spring will hook into the shoe itself. The order of the springs doesn't matter.

Tom from SWISCO

Jul 31, 2018 2:13 pm

Oh, sure thing! Sorry about that. See our 15-150T.

Quick Learner from MI

Jul 31, 2018 2:19 pm

Thank you for the information. Could you give me your part number that would work with the three spring white cover?
Look at top right corner of picture to see part I am talking about.
