Window Balance 27" Single Tilt

Quick Learner from Cypress, Texas
Not sure of what shoe/cam is needed. Window channel is 3/4".
3 user uploaded images
4 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

Your window uses the Series 795 channel balance, but with the 15-198 hook attached for installation. This configuration will require a custom order to assemble for you.

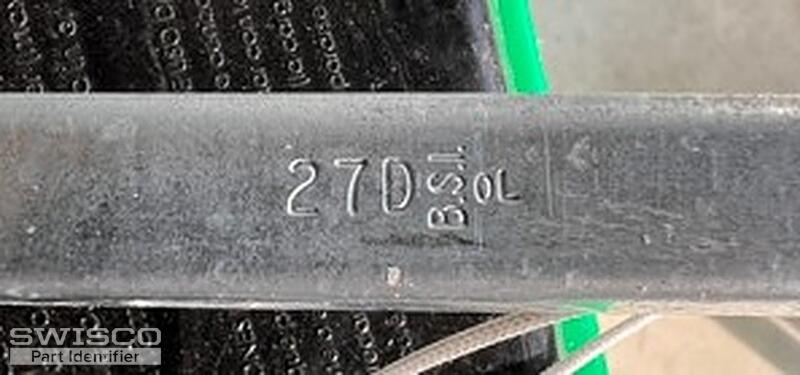

To further review, are you able to provide the number/letter stamped on the metal channel? Please also double check the width of the metal channel, it should measure 9/16" wide.

How many balances are you in need of? For custom orders there is a minimum of (2) balances required. Thank you!

Quick Learner from Cypress, Texas

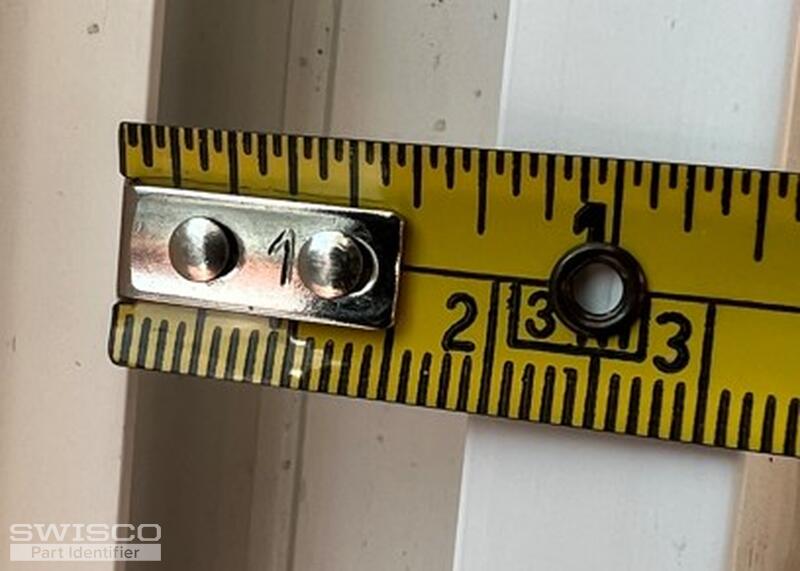

Window channel is 3/4" (see photo)
We will need a total of (10) balances
2 user uploaded images
Lauren
Lauren from SWISCO
SWISCO
Expert

Thank you,

I apologize for my misinterpretation of the width of the window channel itself. The 9/16" width I am referring to is the width of the metal channel balance itself.

I have sent over a separate email with an order link for (10) balances with pricing for your review. The balance will have a closed cam 1-1/4" wide T-lock shoe attached at the bottom. Please let us know if you have any additional questions and custom orders are nonrefundable.

Dimensions for 15-195
Dimensions for 15-195
