Window Balance

Home Owner from 11768

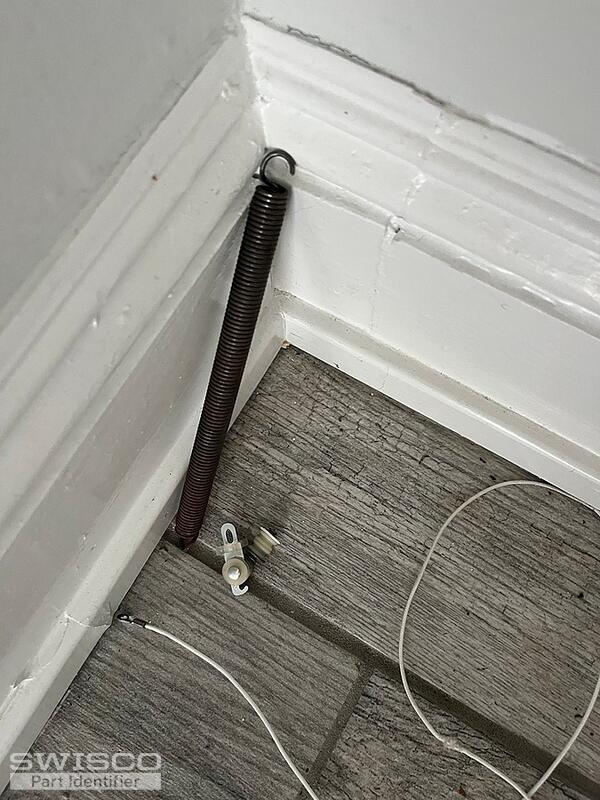

Need to replace 1 side of window as the string snapped and window does not stay up.
5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

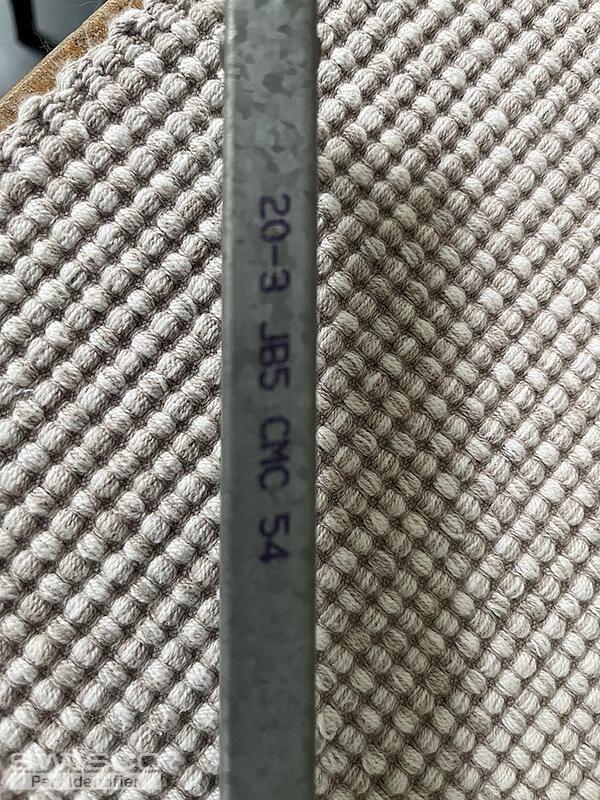

Your window balances appears to be the S765-21 Balance with a 20-3 stamp. It is recommended to replace both balances at once so that the older balance doesn't wear the newer balance out.

The 26-053A Balance Stop is used to cover the installation screw at the top of the window track.

Dimensions for 26-053A
Dimensions for 26-053A

Alternate image for 26-053A
Alternate image for 26-053A

This balance is compatible with the 15-046 Pivot Shoe. If you find yours need to be replaced, be sure to compare the dimensions to confirm it will be a fit in the track.

The compatible pivot bar is the 26-040.

Alternate image for 15-046
Alternate image for 15-046

Dimensions for 26-040
Dimensions for 26-040

Home Owner from 11768
These parts will cover the entire job for the 1 side? I will need to check the dimensions for sure.
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Yes, the parts listed would repair one side of the window, if you were to purchase just one of each. However, it is recommended to repair both sides of the window at the same time to prevent the older balances from wearing down the replacements.

Please let me know if you have any additional questions!
