Window Balance Shoe Part Help Please

Quick Learner from Greenwood IN

Jul 8, 2018 8:59 pm

Hi Swisco - thank you so much for offering this service!!

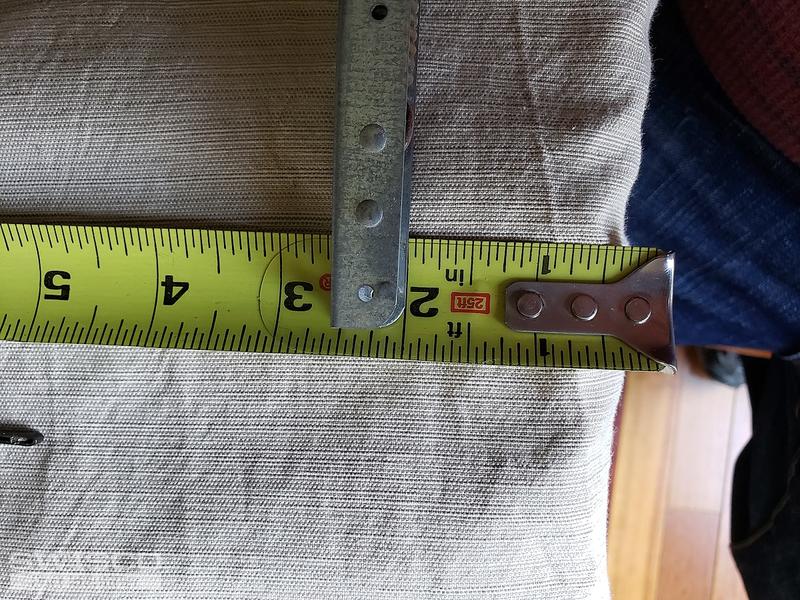

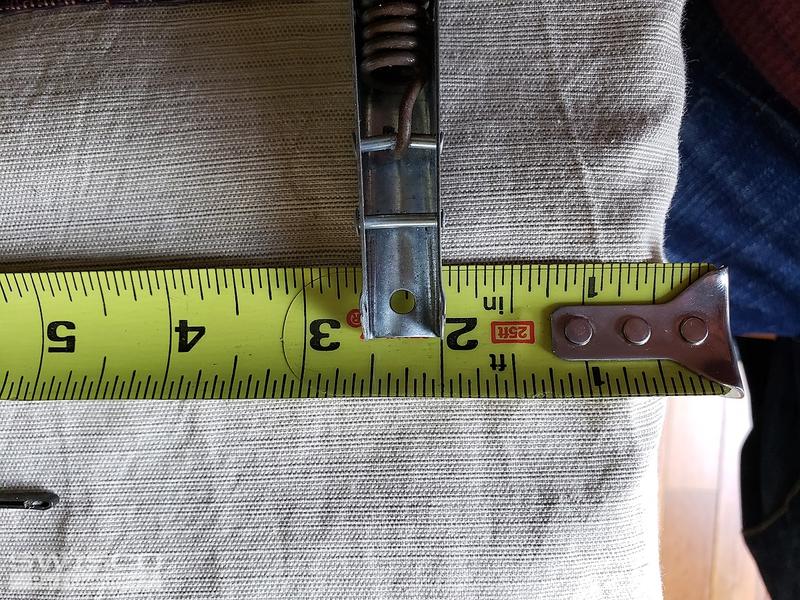

The channel has imprinted "33B BSI TH"

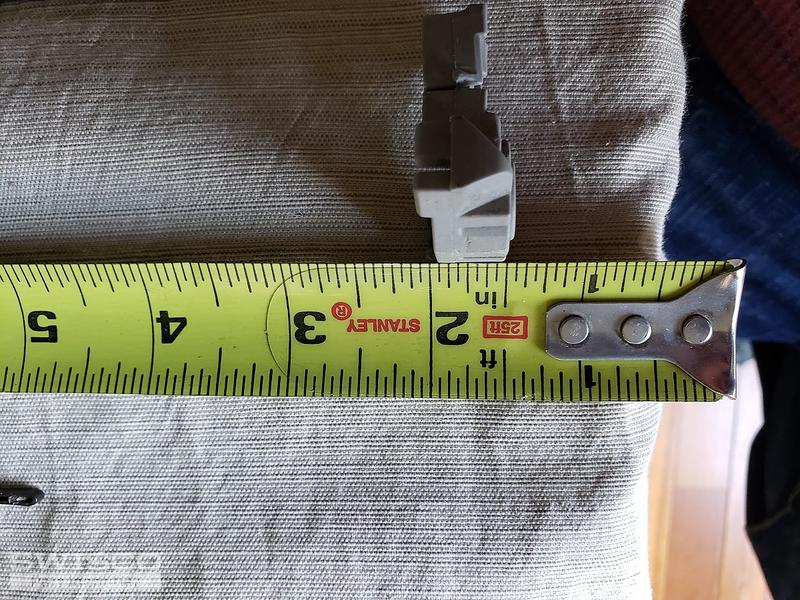

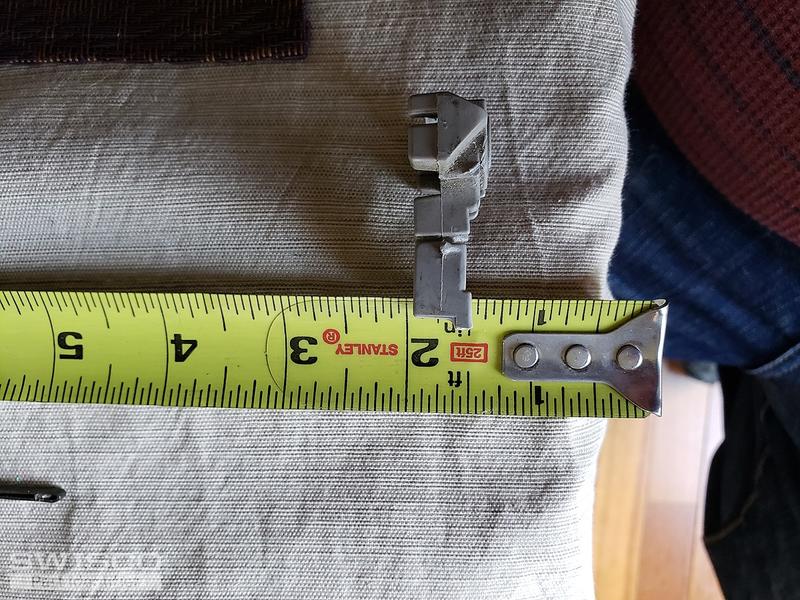

The Shoe has imprinted "Pat #s 6,679,000 // 4,610,108 // D467,490"

The clip at the top of the shoe gave way, releasing the channel/spring from the window sash. The channel/spring appear to be in fine working order. I think I just need to order replacement shoes.

Can you help me to identify the proper replacement part?

Thank you again for any help you can provide!

Kevin

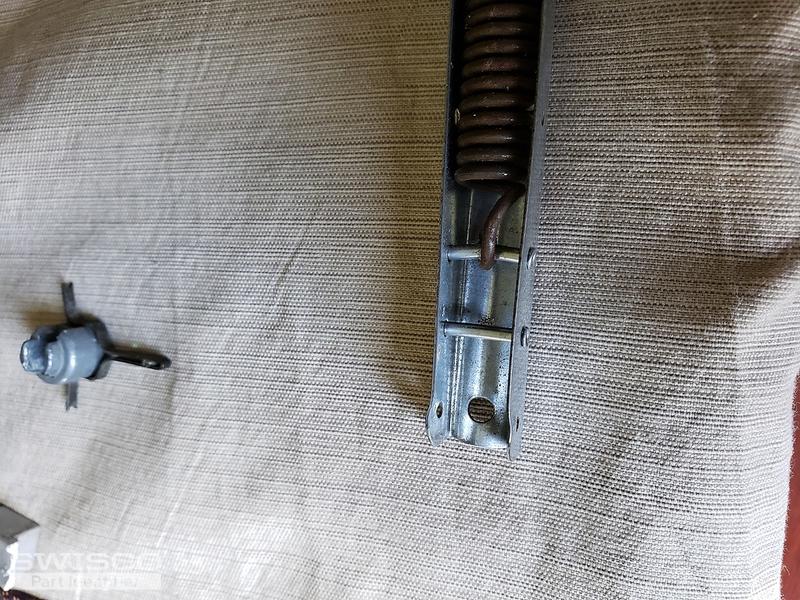

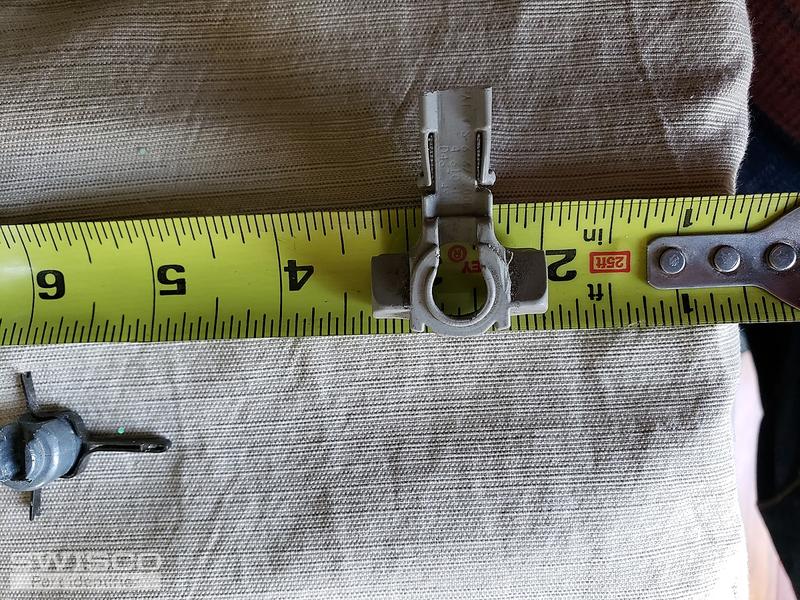

5 user uploaded images

17 Replies

Tom from SWISCO

Jul 13, 2018 1:09 pm

Thanks for posting! We do sell similar shoes, but they won't fit on your balance since yours has a deep groove in the bottom. You will need to replace the channel balance entirely. I recommend our Series 795.

Quick Learner from Greenwood IN

Jul 25, 2018 11:48 am

Hi Tom,

Thank you for your follow up - very much appreciated. I can see I need the 33B from the markings on my channel. Based on my photos, can you confirm that I also would need some kind of clip attachment. Is it the 15-198?

Thanks again,

Kevin

Tom from SWISCO

Jul 31, 2018 9:55 am

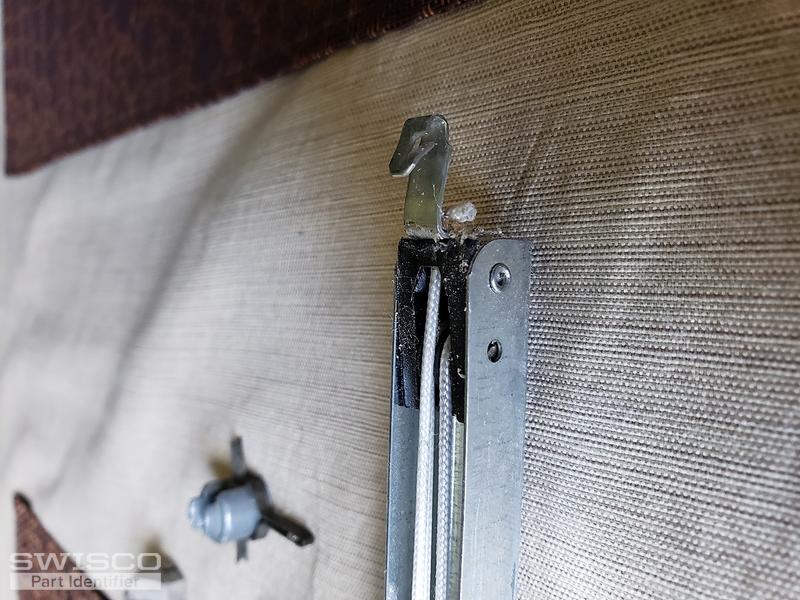

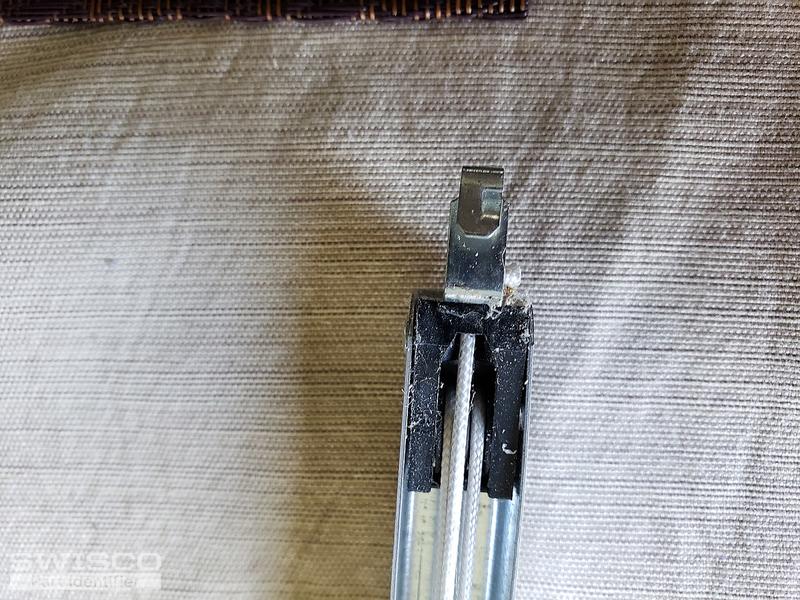

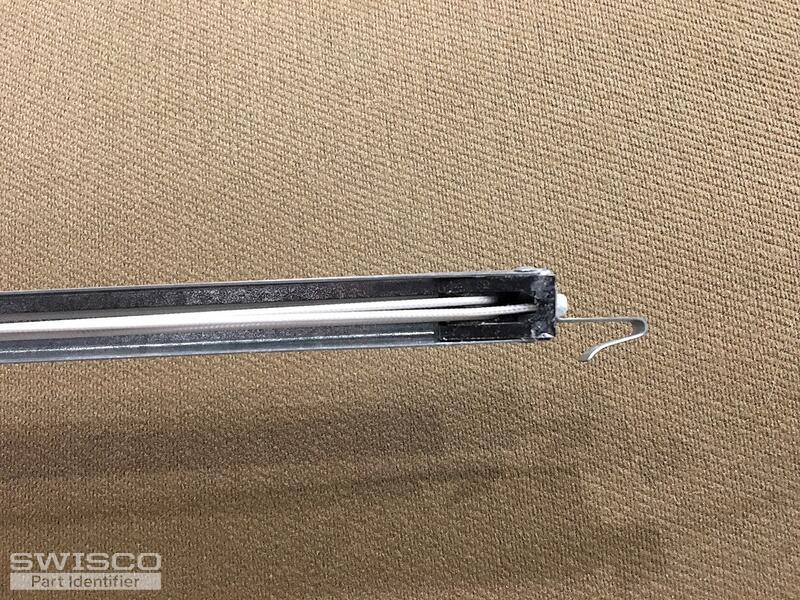

Our Series 795 screws in at the top, but I totally overlooked the hook in your fourth picture. Sorry about that!

We can custom make a balance for you with a 15-198 hook, though you may also be able to simply pop a 26-200 screw plug into the hole where the old hook went. It depends, though. If the hole in question is square, then our 26-200 should work great. You can pop that in, then install our Series 795 as-is, without any custom order.

If it's a narrow slot, then we'll need to custom make a balance for you. If that's the case, let me know how many you need and I'll whip up a custom order link and price quote.

Quick Learner from Greenwood IN

Jul 31, 2018 5:59 pm

Thank you again Tom - really appreciate your help.

I do not have a square hole, so I think I need the custom version with the 15-198 hook.

I have a number of windows where this should be the fix, but I want to test it out on one window before ordering for the rest. Can you quote me for two of them?

the Series 795 (33B) with 15-198 hook on the end?

Thank you again - have a great evening,

Kevin

Tom from SWISCO

Aug 1, 2018 11:26 am

You got it! I'll email that over right now.

Quick Learner from Greenwood IN

Aug 1, 2018 5:39 pm

Thanks again Tom - placed the order!

Have a great evening,

Kevin

Tom from SWISCO

Aug 2, 2018 10:30 am

Awesome, thank you! We appreciate your business, it means a lot. If you ever need anything else, I'm always happy to help.

Quick Learner from Greenwood IN

Aug 4, 2018 7:12 pm

Tom - Thank you again for your help. The parts came today and were quick and easy to install - exactly what I needed.

Now that I know I have the right parts, I'd like to order some more.

I need:
12 x Series 795 (33B) with 15-198 Hook
6 x Series 795 (26B) with 15-198 Hook

Can you put together another custom order form for these?

Much appreciated,

Kevin

Tom from SWISCO

Aug 6, 2018 11:05 am

Sure thing! I'll shoot those over right now. Thanks again for your business, it means a lot to us.

Quick Learner from Greenwood IN

Aug 11, 2018 6:22 pm

Thanks Tom - those arrived on Thursday and all my windows are functional again! Can't wait for the weather to turn so I can have all these open windows again!

Really appreciate your support to find the right solution - this is a fantastic service you offer.

Pleasure to do business with you - now when my remaining windows break, I know right where to go.

Thanks again,

Kevin

Tom from SWISCO

Aug 13, 2018 7:35 am

It was our absolute pleasure. I'm so happy to help your windows function again! Thanks again for your business and please let us know if you ever need anything else.

Home Owner from Elgin

Apr 23, 2019 2:10 pm

Tom I think I am in need of the same thing you were able to put together for Kevin. Also just so happens I am also Kevin. Can you let me know pricing on 4 balances with the hook on the top?

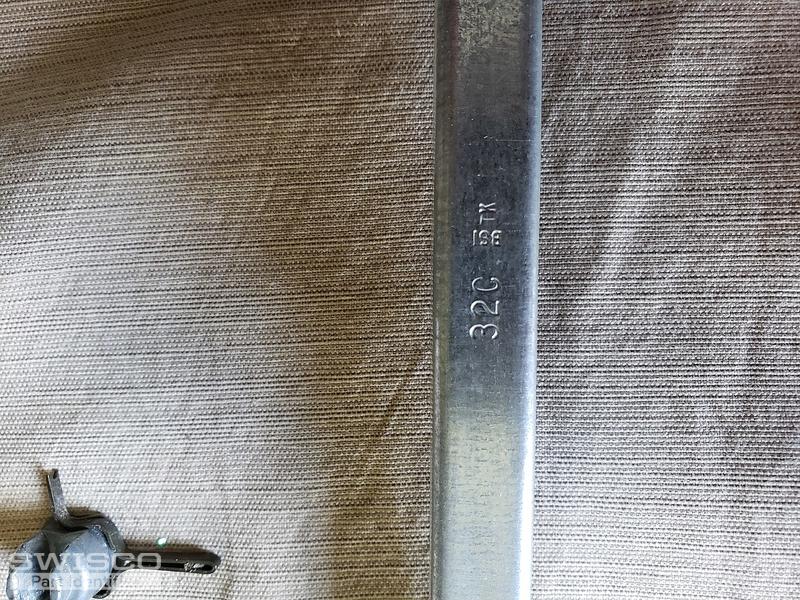

The balance that broke has 32c stamped on the balance. And the only numbers are pat numbers, 6,679,000 4,610,108 D467,490.

4 user uploaded images

Home Owner from Elgin

Apr 23, 2019 2:13 pm

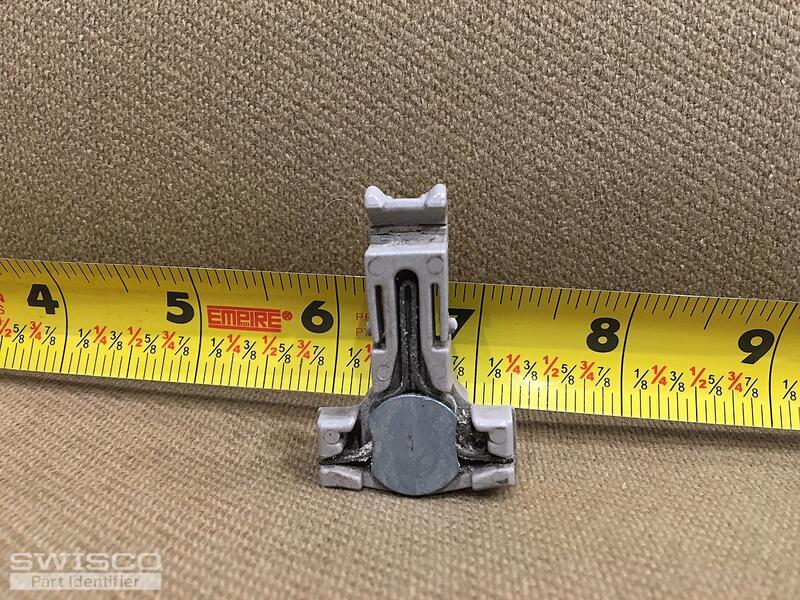

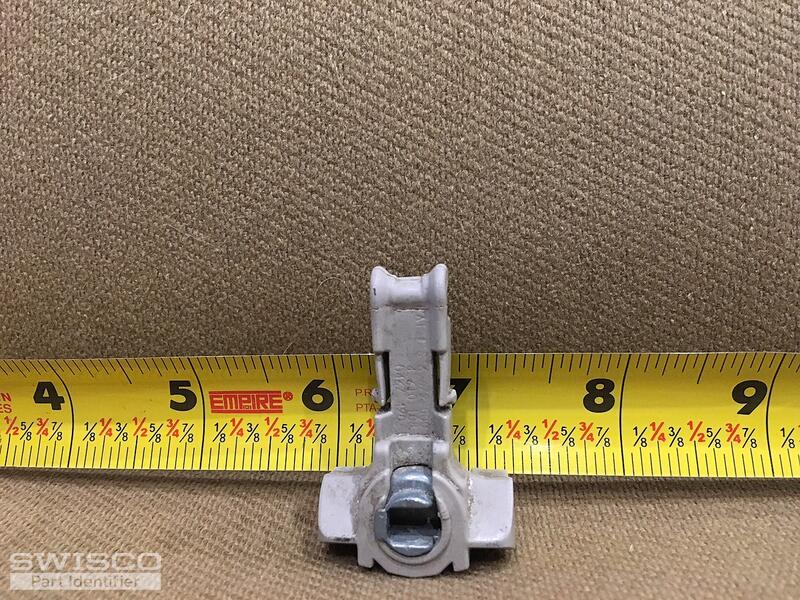

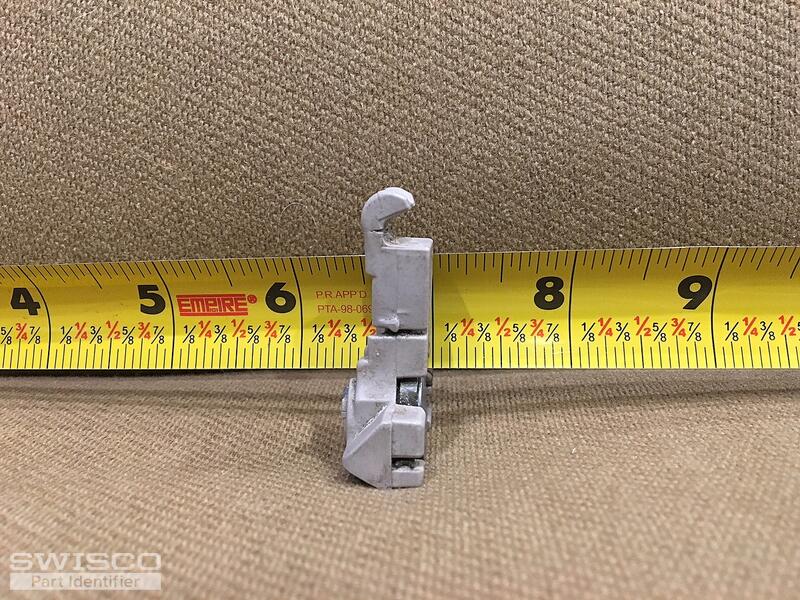

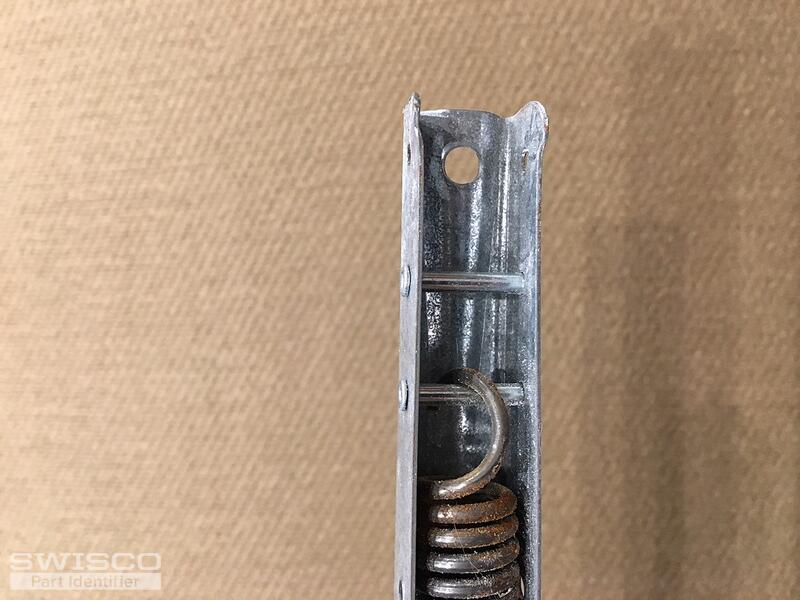

Pictures of the shoe and the balance.

5 user uploaded images

Tom from SWISCO

Apr 24, 2019 10:09 am

The more Kevins, the merrier! Your photos and information are perfect, so we have everything we need to get started. This will be a 32" long Series 795 with a 15-198 hook and a 32C stamp. I'll shoot you an order link and price quote right now for 4 of these balances. Let me know if you want to make any changes or if you have any questions. Thank you for considering us!

Professional from Little Rock, Arkansas

Dec 10, 2020 8:37 pm

I am not a Kevin, but I need almost the same thing, however the balances I am searching for are 32B w\ the old PLYGEM 467 490 closed cam T-shoe + the attached hook for square holes. Could you shoot me over a quote for 2 of these?

Thanks so much,

Dave

Tom from SWISCO

Dec 14, 2020 10:39 am

Hello, Dave! Don't worry, we help Kevins and non-Kevins alike. I'll email you a purchase link and quote right now for two balances. For clarity, this is how they'll be set up:

Series 795 base
32" length
32B stamp for sashes weighing 14 through 20 pounds
15-198 hook on top
Default 15-195 shoe on bottom

Let me know if you had any questions!
