Window Balancer Replacement

Hello, thank you for posting,

To further review, are you able to provide images of the attachment at the bottom of the metal channels? From there we can get a clearer idea of the series your window uses for possible replacement option. Thank you!

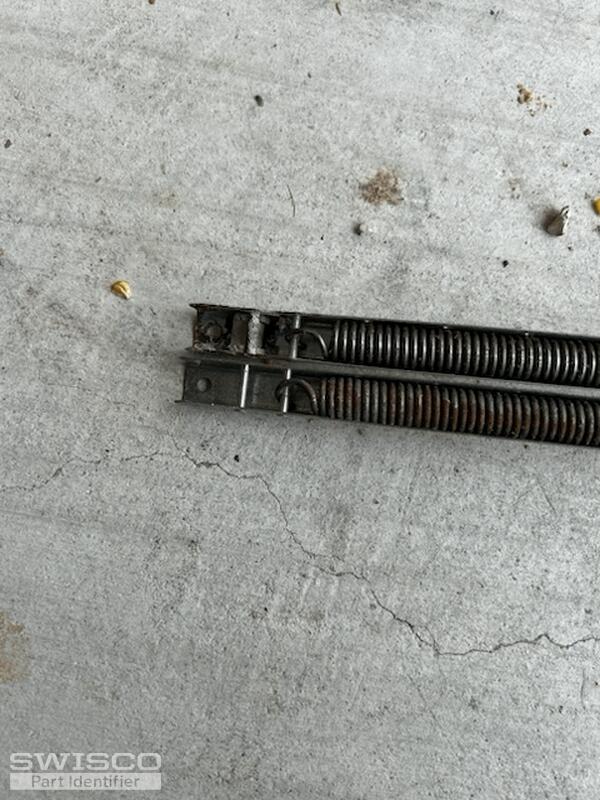

I apologize for the inconvenience, but I will need to see a picture of the bottom of the metal channel. I believe you are currently showing the top like the original pictures sent with the hook. The bottom should have some sort of plastic shoe or attachment that fits in the window channel. Thank you!

Unfortunately it appears that the bottom shoe attachment has broken off. Do you have any undamaged balances that we could view?

I believe you may have the Series 795 channel balance with the 15-198 hook attached at the top. This configuration would require a custom and nonrefundable order to assemble the hook on the balance as the original comes with a screw in clip.

The screw clip would only be able to be used if the window has a square cutout to support the 26-200 screw plug to install the balance as is as shown below.

This balance comes equipped with the 15-195 closed cam T-lock shoe as shown below. But this balance can use different shoe variations. We commonly see this balance used with the equipped 15-195 closed cam or 15-195B open cam shoe that are both 1-1/4" wide. We also see balances used with the 15/16" wide 15-194 shoe.

Dimensions for 15-195

Alternate view of 15-195B

Alternate view of 15-194

These shoes can be swapped in and out.

Another possible variation is the 15-224 inverted link that is commonly attached to the 15-216 pivot shoe.

Dimensions for 15-224

All these attachments can be interchanged, but we cannot confirm what the correct one is without seeing an original. Let me know what you think!
