Quick Learner from USA

Feb 10, 2025 12:01 pm

I just called your 888 number and was directed to send a email.

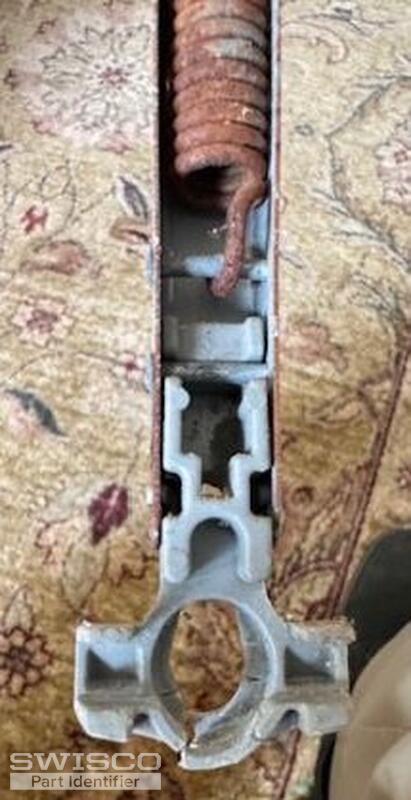

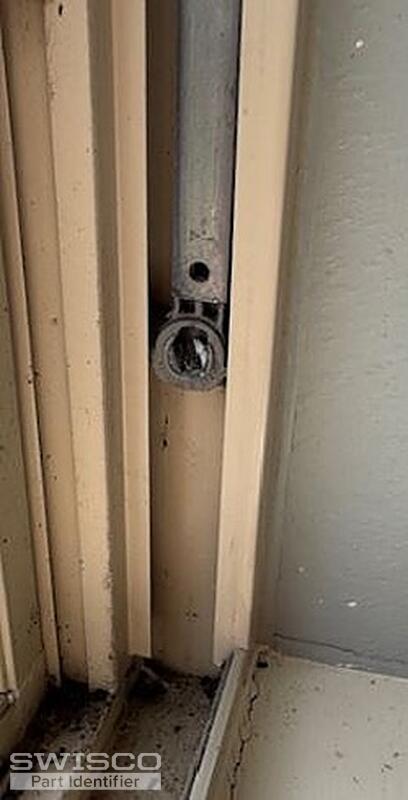

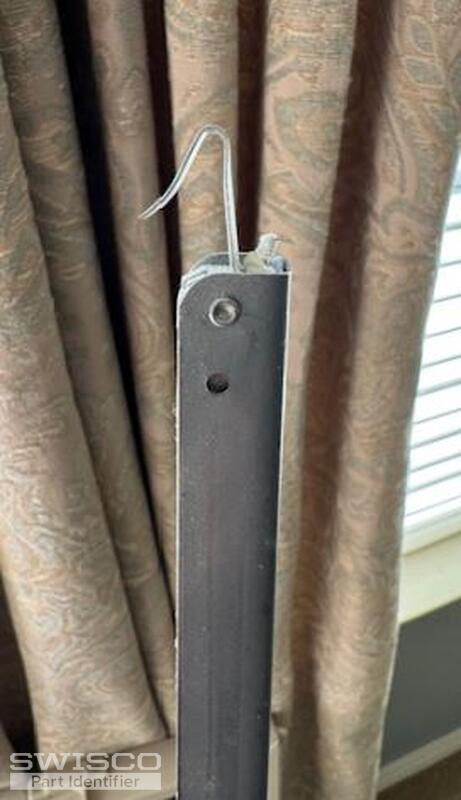

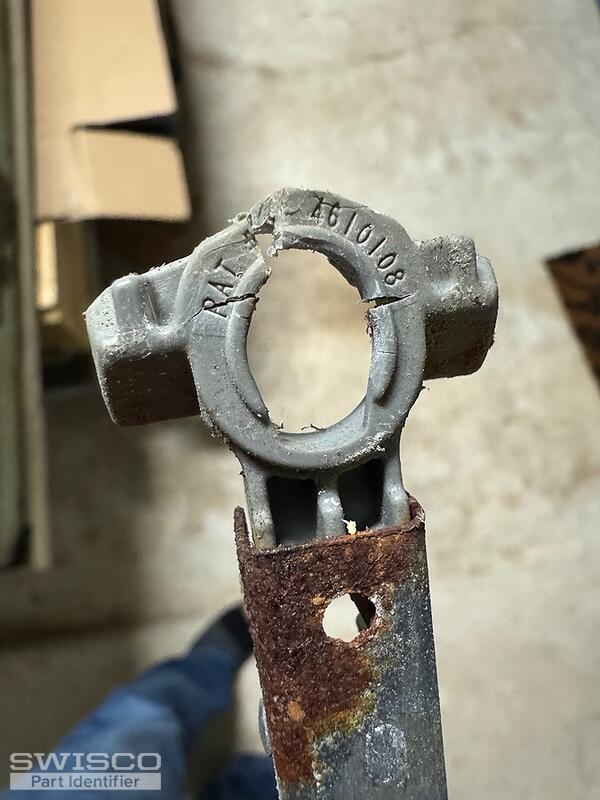

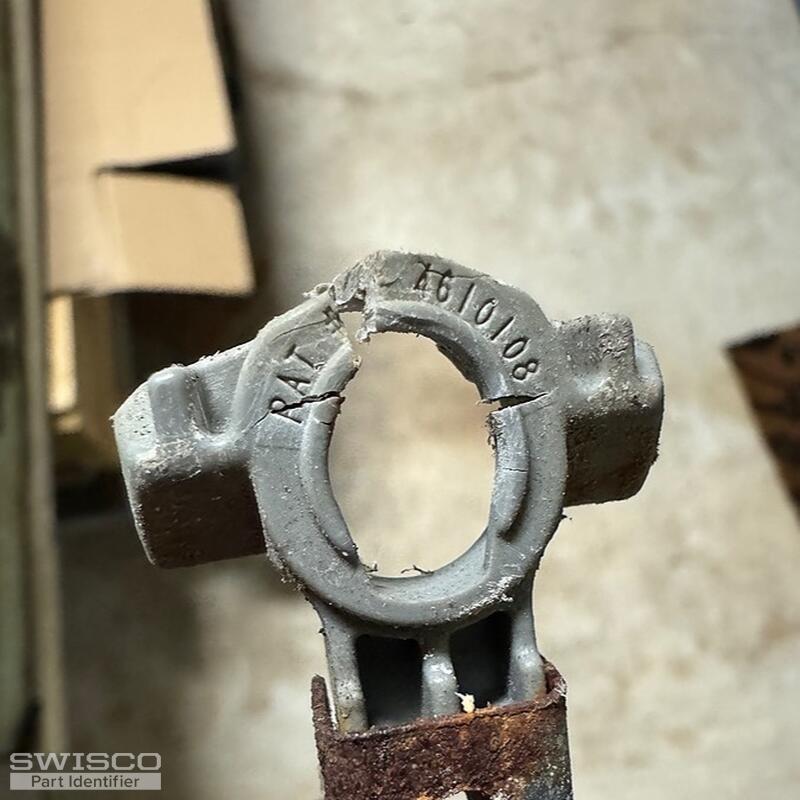

I need replacement window balances and shoes for ply gem windows. They are almost exactly like your Series 795 Channel Balances except they secure by clip instead of screw into the window channel. I also need the metal piece that attaches to the window that fits into the shoe as some are broken as well. Pictures attached.

Thank you,

5 user uploaded images

9 Replies

Quick Learner from USA

Feb 10, 2025 12:38 pm

3 more photos. Thank you.

3 user uploaded images

Casey from SWISCO

Feb 10, 2025 3:47 pm

Hello,

We can supply the S795-27 (27C) balances with the 15-198 hook attached but it will need to be a custom order. I'd also recommend checking an intact balance to confirm it uses the same close cam as the 15-195 T-lock shoe that comes with these balances. If so, we'll need to confirm the number of balances you need, with the minimum being two.

How to measure the length of the Series 795 channel balance.

Profile view of 15-198

Detail of 15-198

Dimensions for 15-195

Alternate view of 15-195

If you need new pivot bars as well, please show us yours fully removed from the sash frame to help narrow down your options. Thank you!

Quick Learner from USA

Feb 10, 2025 4:52 pm

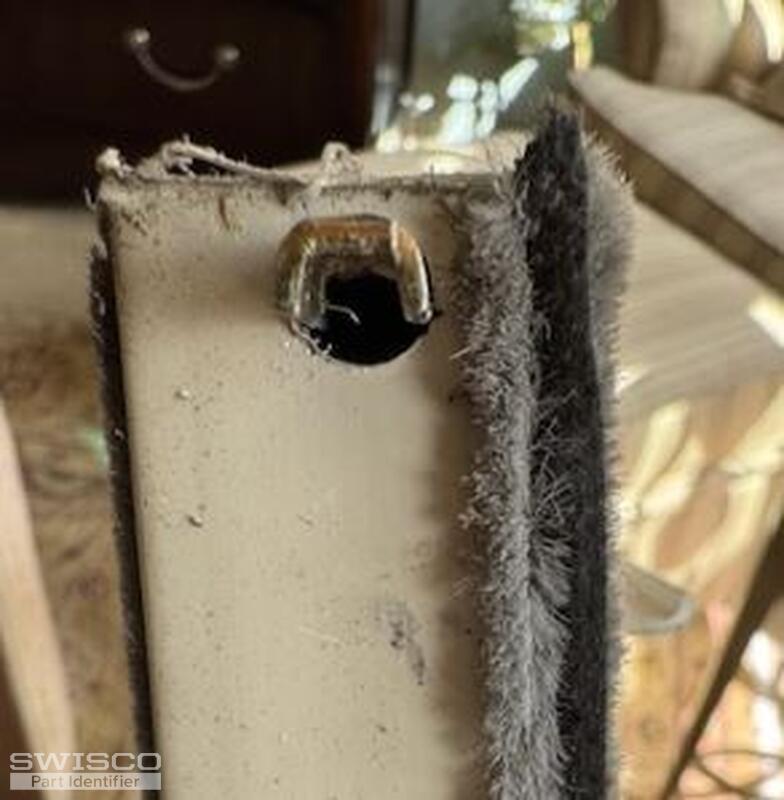

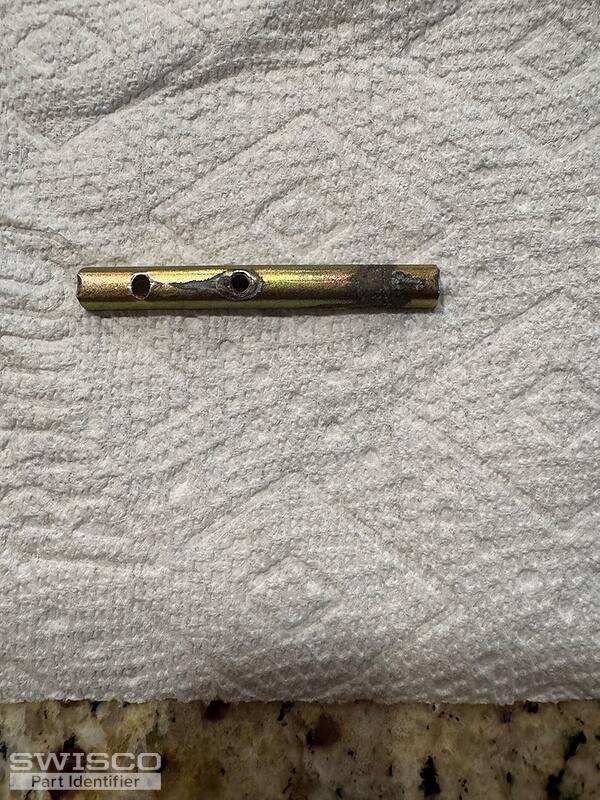

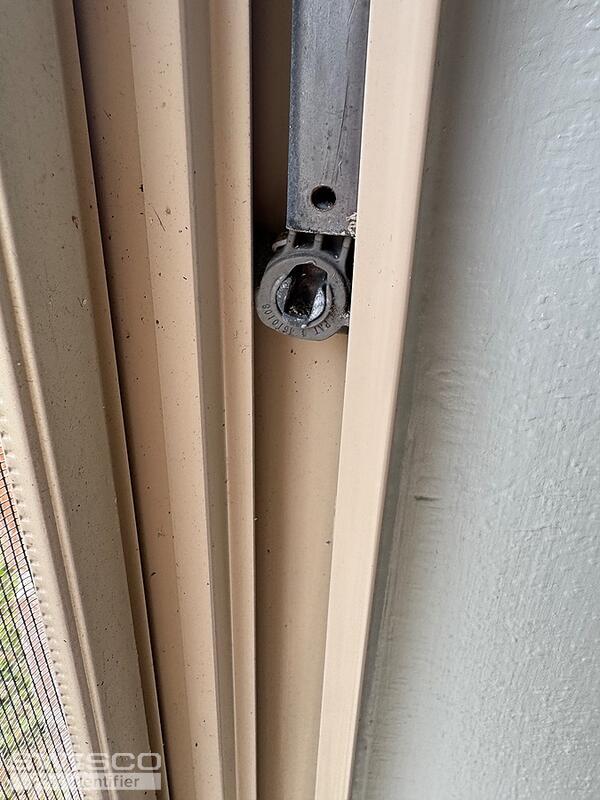

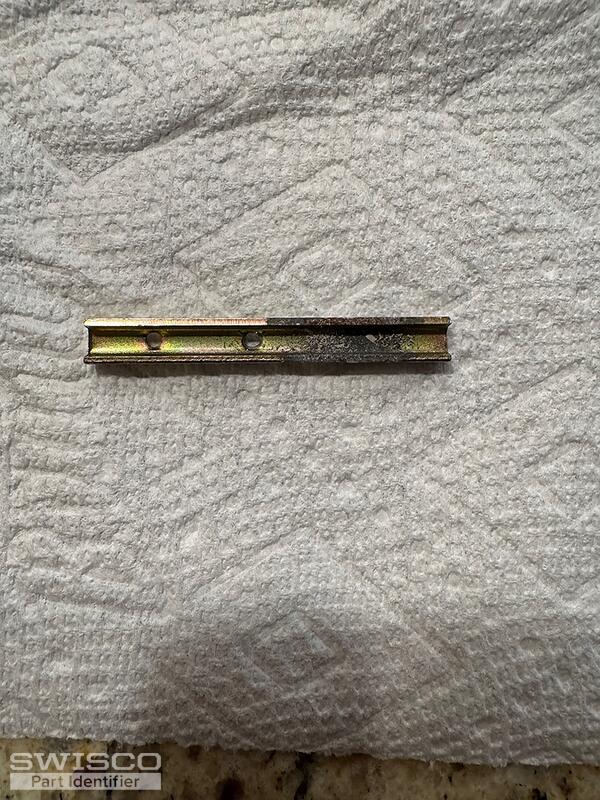

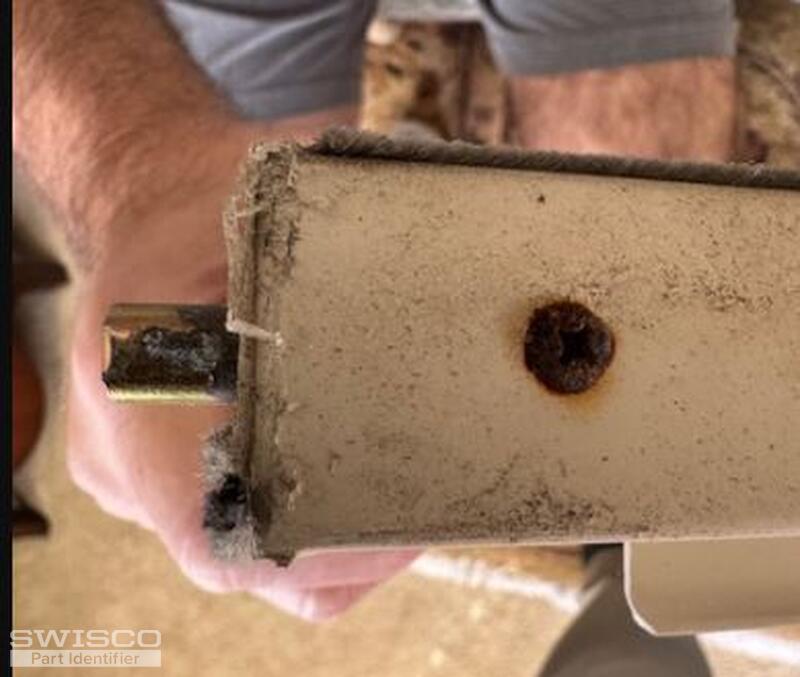

Thank you for the reply. I need 8 total. Both the 15-195 and 15-198 appear to be the correct dimensions, but we need an open cam so 15-195B instead. Pivot bar appears to be like 26-083 as it is only 2.5 inches long. Additional pictures attached. Thanks again, Rich

4 user uploaded images

Casey from SWISCO

Feb 11, 2025 8:45 am

Thanks for getting back to us. We just sent over an order link and price quote for you to review. Keep in mind that the balances will come with the 15-195 closed-cam shoes so you'll need to purchase the 15-195B open-cam T-lock shoes separately and follow the video below to swap them out.

I also agree that the 26-083 pivot bars resemble yours as long as the backset of the installation holes shown below matches as well.

Detail of 26-083

Quick Learner from USA

Feb 11, 2025 10:51 am

Thank you for sending my quote. I would like to increase the quantity to 10 and also include 15 pivot bars plus 15 screws. I added pictures yesterday afternoon. I believe I need 26-083 as my bars are 2.5 inches long.

I forgot. I also believe I need open cams. Thank you. - Rich

2 user uploaded images

Casey from SWISCO

Feb 11, 2025 11:18 am

We just sent over an updated link for ten balances. The order link only includes the balances themselves, which are only shipped with the stock 15-195 shoes. You'll need to add the 15-195B open-cam shoes and pivot bars to the order directly from our website since they are both stock items.

Quick Learner from USA

Feb 11, 2025 11:29 am

You are awesome. Thank you for all of your help and sorry for the back and forth. I just submitted my order. Thanks again and have a great day. - Rich

Casey from SWISCO

Feb 11, 2025 1:06 pm

We're happy to help and appreciate your business. Just let us know if you need anything else!
