Window Crank Mechanism

Home Owner from Minnesota

Nov 16, 2021 11:04 pm

My window crank mechanism quit working and I am hoping it makes sense to just replace the part, if available. I took measurements as seen in the photo above, but can take any photo needed to help identify the specific part, thanks!

4 user uploaded images

8 Replies

Emily from SWISCO

Nov 18, 2021 3:56 pm

Hello!

Start by comparing your dimensions to our 39-315 and 39-316 operators to see if these match up to your original assembly.

Home Owner from Minnesota

Nov 20, 2021 1:48 pm

Thank you, that is helpful.

So, I removed the part and noticed it is a "Truth 45136" part number if that is helpful.

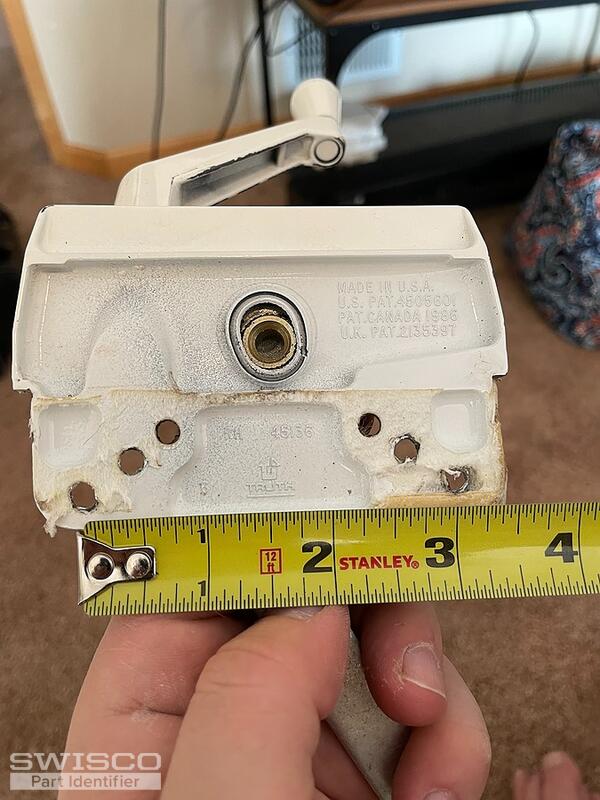

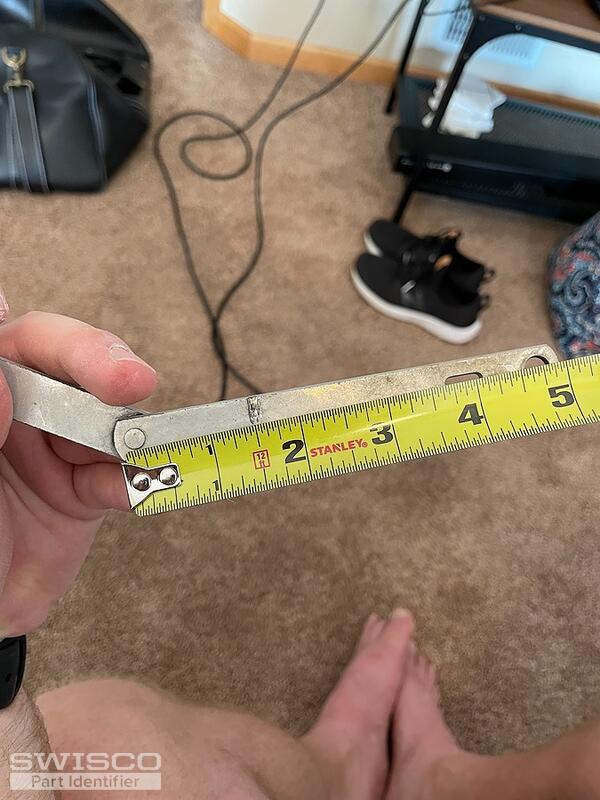

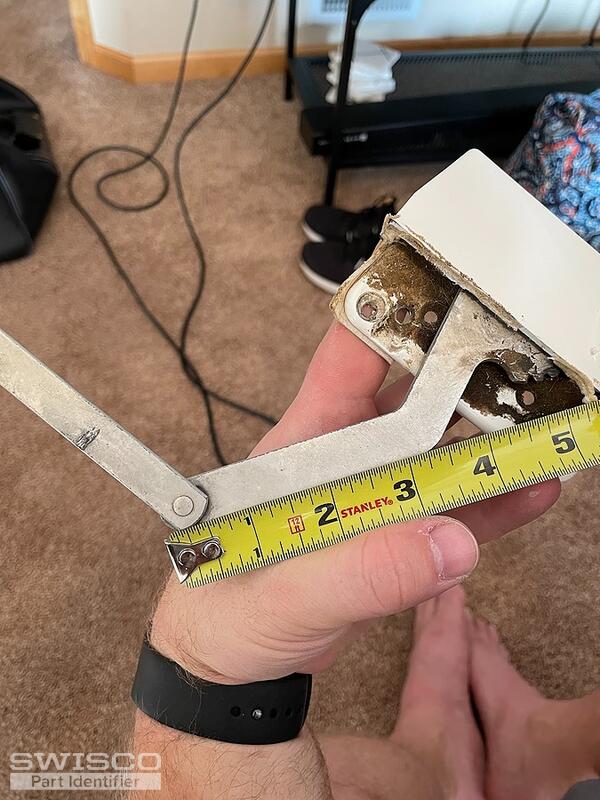

I also took some measurements, as attached to this reply post.

I would need it for both the right and left windows.

Does this help pinpoint what part to order from you?

Thanks!

3 user uploaded images

Emily from SWISCO

Nov 22, 2021 9:44 am

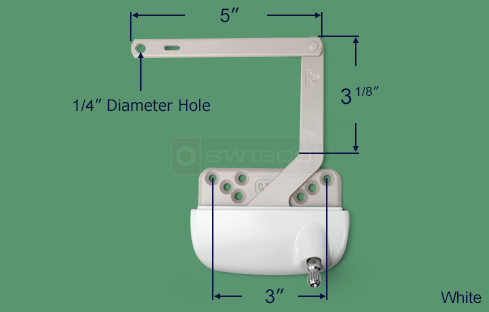

I wouldn't focus on that number to identify what you have since those part numbers are often used for multiple Truth brand operators. Its tough to get accurate measurements from photos but I'll post the dimensions down below. You can use this as a reference for what to measure. Let me know if this helps.

Home Owner from MN

Nov 26, 2021 11:45 am

I believe these parts will do the trick and I have set one up for notifications as one is on back order.

Can you recommend what knob / handle piece is compatible with these that I can order as well? Also, do you sell the seal / gasket?

Emily from SWISCO

Nov 29, 2021 8:26 am

Sure! The 39-114L and 39-205 handles are compatible with the 39-315 and 39-316. We carry many different types of weatherstripping but we'll need you to remove a piece of yours so that we can see a clear view of the end profile to compare to our inventory.

Home Owner from MN

Jun 7, 2022 7:25 pm

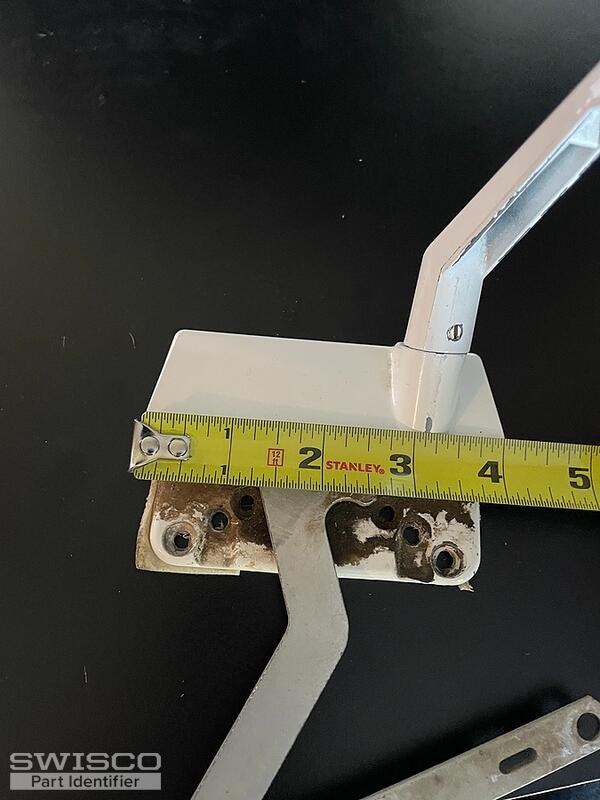

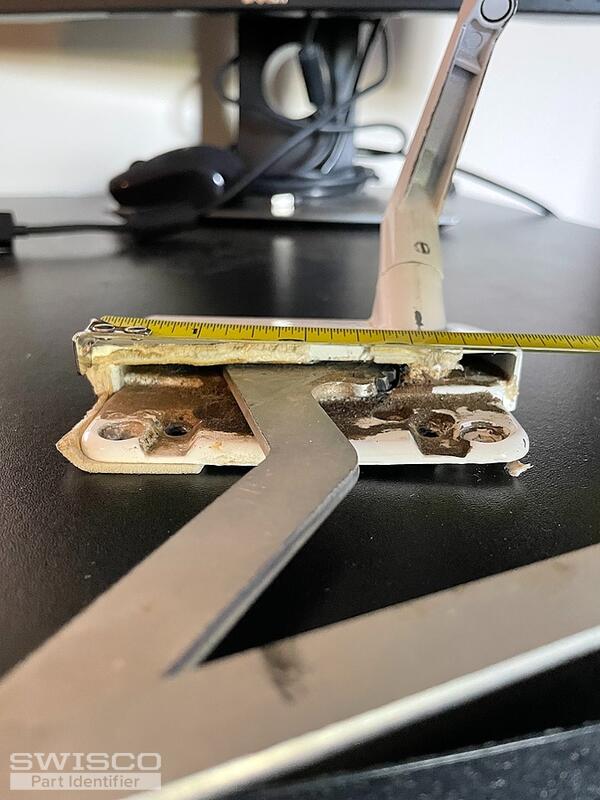

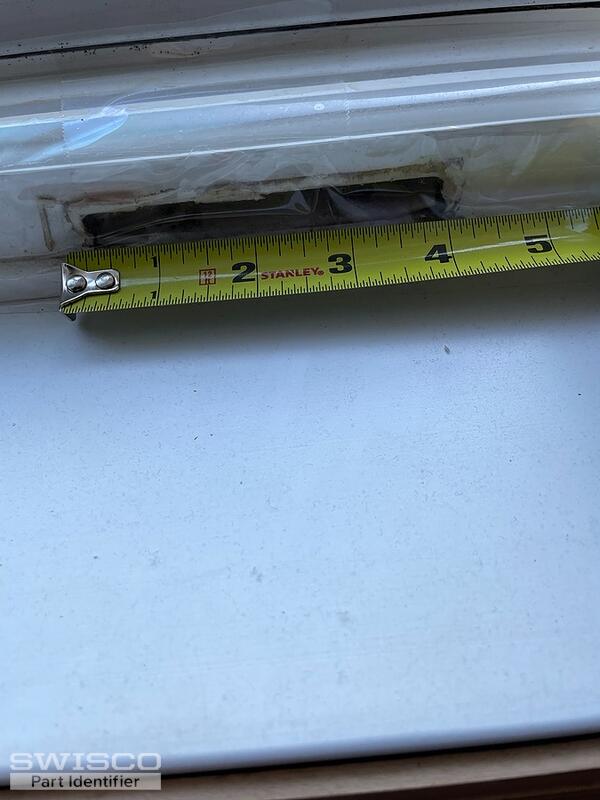

Attached are some pictures and measurements of the crank. The old gasket/seal has worn away, but I am confident I will be ordering the Truth Dyad Operator that you previously recommended (39-315). So, whatever gasket/seal you recommend for that! Thank you.

3 user uploaded images

Emily from SWISCO

Jun 8, 2022 8:06 am

This gasket reminds me of the 39-564 but compare our dimensions with yours to see if this matches what you need.
