Window Crank Replacement

Quick Learner from Kansas

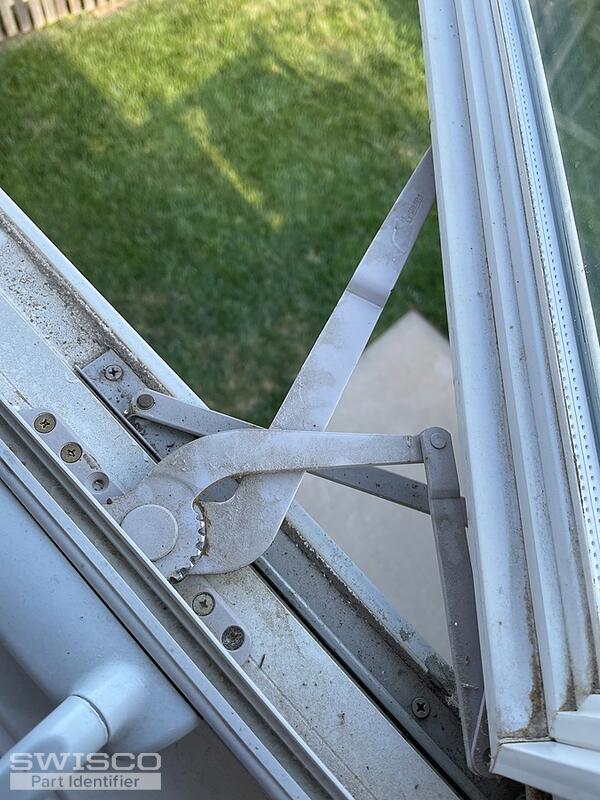

Looking for a window crank replacement for a kitchen window. The crank has a marking of "Truth" and the handle says "Caradaco". The mechanism itself is about 5 inches long. The part of the crank running parallel with the window is about 5 inches long. The long arm is about 10 inches. The curved arm running perpendicular with the window is about 7 1/4 inches. The two measurements on the rounded arms are estimates as its a little difficult measuring on the curve.
4 user uploaded images
2 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

This operator resembles either the 39-438B and 39-439B or the 39-253LB and 39-253RB operators. The difference between these two styles is the guide at the end of the straight arm. Please review the video below that goes into more detail.

Also review the 39-451 and 39-452 or 39-375 and 39-376 cover/handles depending on style preference.

Please review and let us know if you have any additional questions!
