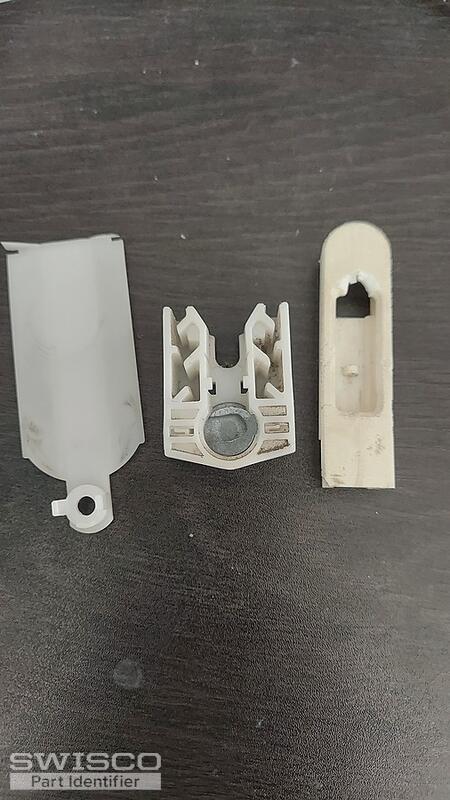

The part on the very left is like the cover of the entire part... I accidently broke off the top portion while taking it out, just wondering if theres a part for it?
Also, the cover had a number "13" on there, so I'm guessing it's the sash weight?
I would like to know about that.
The other two, I'm assuming, are from the links below... the carrier metal holder chipped and the tilt latch on the right side broke.
https://www.swisco.com/Quick-Tilt-Sash-Carrier/pd/Tilt-Window-Replacement-Pivot-Lock-Shoes/15-215
https://www.swisco.com/Tilt-Window-Latch-RH/pd/Surface-Mounted-Latches-For-Tilt-Windows/26-244
Thank you.
Window Part Replacements
Home Owner from Los Angeles
Sep 2, 2022 9:06 pm
1 user uploaded image
8 Replies
Tom from SWISCO
Sep 6, 2022 2:21 pm
Hello! I agree that your pivot shoe is a match for our 15-215. The cover that is designed to work with this balance system is unfortunately not sold separately, though. The best option we can offer you is the complete Series 140 set, which comes with pivot shoe, cover, and springs.
As for the tilt latch, it very well may be our 26-244 but it is too damaged for me to verify that. Would you happen to have an undamaged version that I can see?
Home Owner from Los Angeles
Sep 6, 2022 11:50 pm

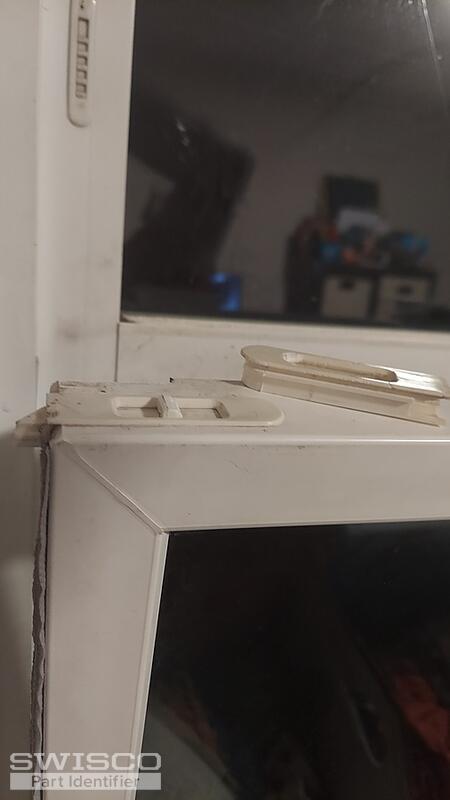

The tilt latch has:
PAT #5,139,291
8D
195
That's all the information I got from it.
And it's really difficult to take it out without breaking it, so that's the only photo I have.
PAT #5,139,291
8D
195
That's all the information I got from it.
And it's really difficult to take it out without breaking it, so that's the only photo I have.
1 user uploaded image
Tom from SWISCO
Sep 7, 2022 12:06 pm
Thank you. I still believe our 26-243 and 26-244 are our best options, but you will have to review our dimensions to ensure that everything matches up. I do recommend trying to remove an undamaged version so that you can get accurate dimensions. That's the only way you'll be able to verify.
Alternate view of 26-243
Profile view of 26-243
Home Owner from CT
Sep 12, 2022 12:51 pm

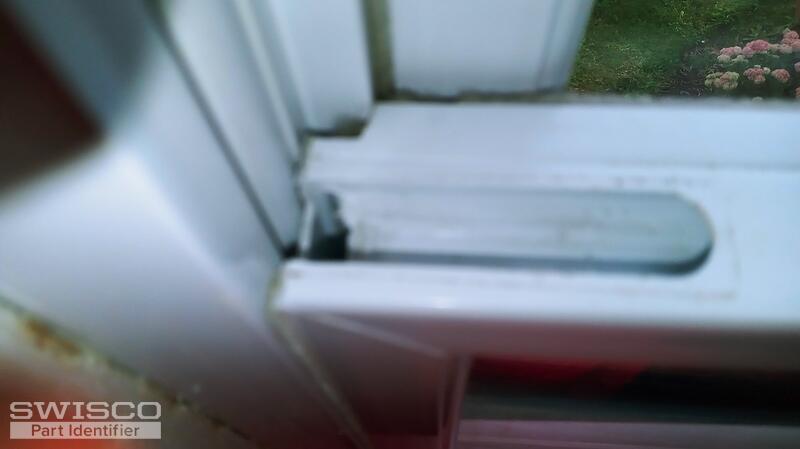

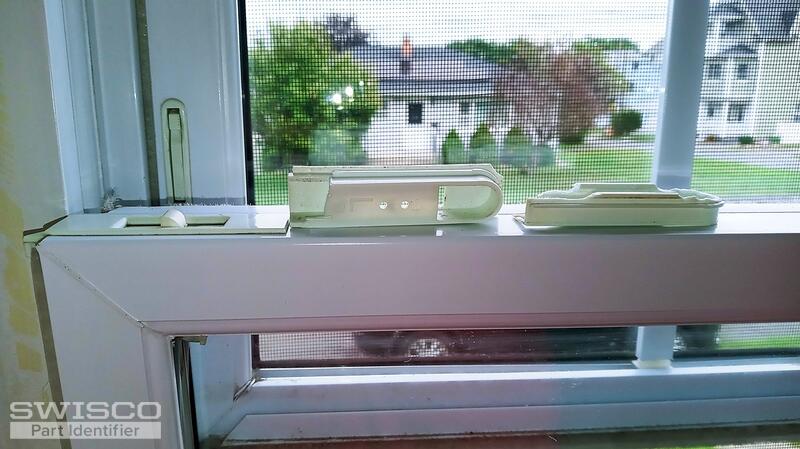

I need a replacements for the attached photos. Don't know which one to purchase. I am afraid to take out the only good one in fear it will crack. Appreciate your time. Thank you.
2 user uploaded images
Tom from SWISCO
Sep 12, 2022 2:12 pm
Based on what you show here, my top recommendation would be the same 26-243 and 26-244 that I recommended for the customer above. However, the only way you'll know for sure is to compare your dimensions to our own. That will ultimately require removing the original. Otherwise, all you can do is make your best judgement.
Home Owner from CT
Sep 12, 2022 4:09 pm
Thank you. I just ordered a few. Have my fingers crossed! Thank you.
Tom from SWISCO
Sep 13, 2022 8:08 am
Sure thing! We appreciate your business, it means a lot. Please let us know how it works out, or if you had any other questions.
