Window Parts

A home owner from 91352 says:
February 6, 2023
Not sure if these parts are Millard or some generic vinyl window parts. I would like to replace all the attached parts including the 9 lb spring.

Could you help me identify the part numbers
Thumbnail of the uploaded file named IMG_20230206_123732148.jpg
Thumbnail of the uploaded file named IMG_20230206_123934191.jpg
Thumbnail of the uploaded file named IMG_20230206_123826049.jpg

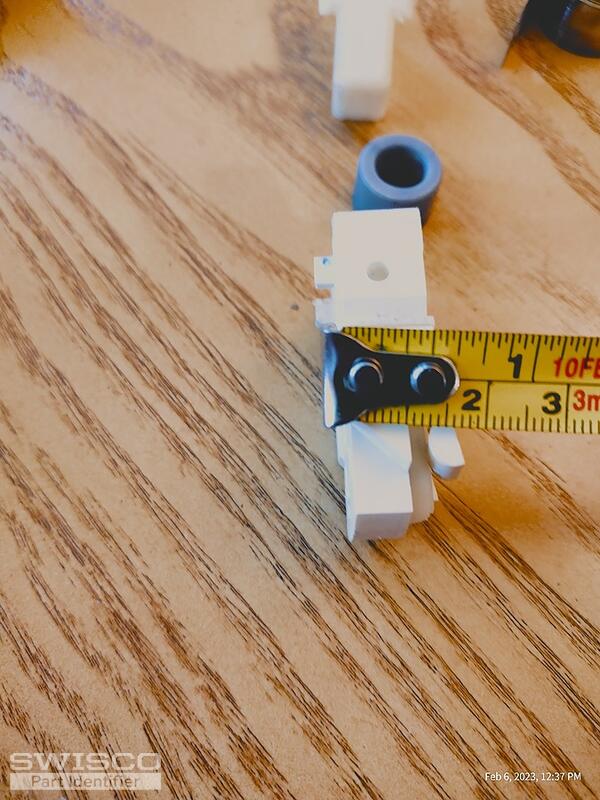

Thumbnail of the uploaded file named IMG_20230206_123759521.jpg
Thumbnail of the uploaded file named IMG_20230206_124008103.jpg
Profile picture of Tom
Tom from SWISCO responded:
February 7, 2023

Thanks for reaching out to us. Looks like you need a new coil balance assembly. We sell these components individually. See our 15-180 pivot shoe, 15-186 clip, 15-182 bushing, and Series 190 coil spring.

Please let me know if you had any questions and I would be happy to assist you.
A home owner from 91352 says:
February 10, 2023
Thanks Tom! Got all the parts ordered.
Profile picture of Tom
Tom from SWISCO responded:
February 10, 2023

Awesome, glad to hear it! We really appreciate it.

Feel free to reach out if you needed anything else.
A home owner from 91352 says:
February 15, 2023
Tom

I also need the pivot bar can you give me the part number?
Profile picture of Tom
Tom from SWISCO responded:
February 16, 2023

Well the 15-180 is traditionally compatible with our 26-040 pivot bar. This doesn't match the one in your photos, though. We don't have an exact match for your original but it reminds me strongly of our 26-272 or maybe 26-378.

I think 26-040 might be the way to go, but you should check to ensure that the hole placement is the same before you buy anything.

Alternate image for 26-040
Alternate image for 26-040
Coil Balance Shoe
Coil Balance Shoe
15-180
$3.97
Coil Balance Clip
Coil Balance Clip
15-186
$5.05
Balance Bushing
Balance Bushing
15-182
$1.80
Pivot Bar, 3"
Pivot Bar, 3"
26-040
$1.57
3" Pivot Bar, Weathercraft
3" Pivot Bar, Weathercraft
26-272
$2.27
3" Pivot Bar
3" Pivot Bar
26-378
$2.10
