Window Parts

A professional from Abaco, BS says:

The Brand of the window is Norandex Reynolds. I would like to get the balances and the sash locks for these windows.

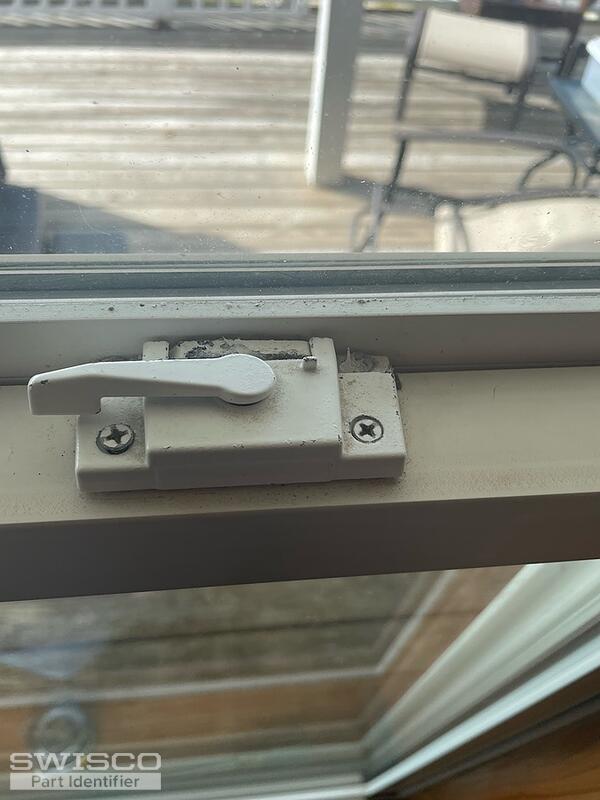

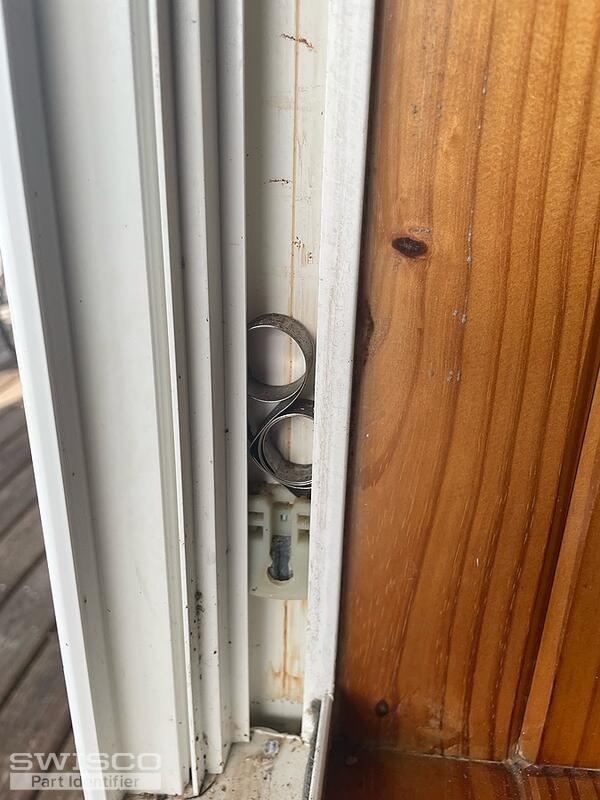

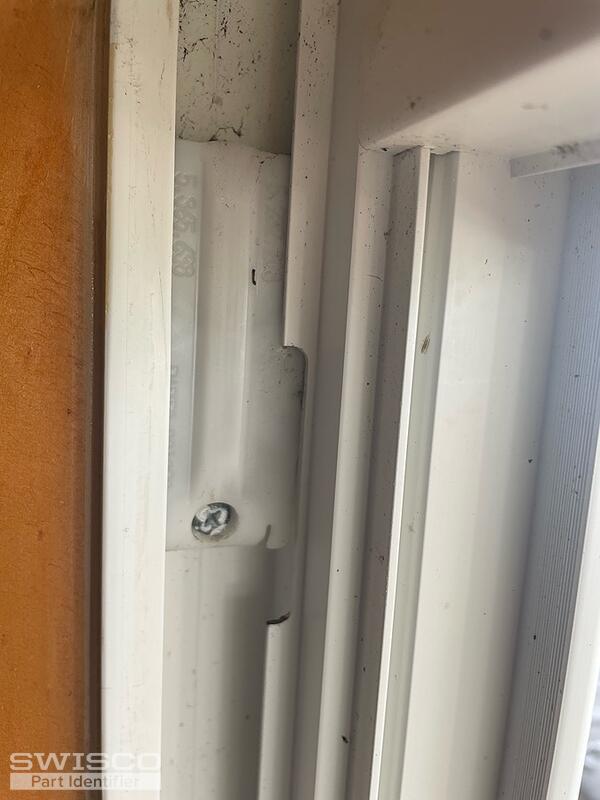

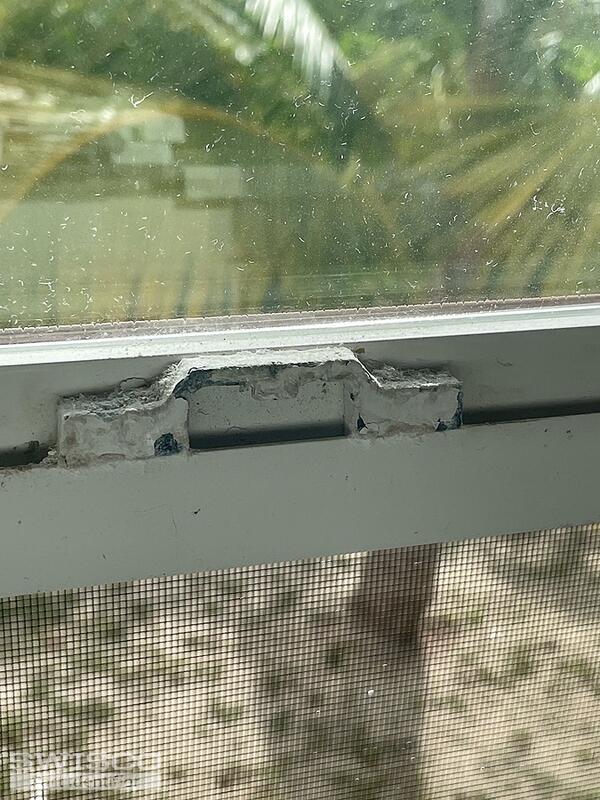

Thumbnail of the uploaded file named 56EEE98A-D912-4182-A9FE-D1CA902829A8.jpeg
Thumbnail of the uploaded file named 6A1EFC40-02E9-4F79-AA15-0F6ACA1628D3.jpeg
Thumbnail of the uploaded file named B0598B1B-3923-4221-8593-7F0DEA2ACB6D.jpeg
Thumbnail of the uploaded file named DE0ACE6B-6626-40A4-A626-BDA5E5D2DC2A.jpeg
Thumbnail of the uploaded file named 8F58F4B9-55B5-42A6-A3AD-85A58F403810.jpeg
Profile picture of Tom
Tom from SWISCO responded:

We should be able to supply you with both components. For the balance, we sell these parts separately: see our 15-199 pivot shoe, 1/2" wide Series 160 coil spring, and 15-150D double spring cover. Your next step should be to remove the existing spring and measure it to ensure that it's the same 1/2" size. There is another, smaller version at 3/8" that may work, as well. Just let me know if that's the case.

For the lock, can you measure the distance between the two installation hole centers and tell me what you get?
