Window Parts

Home Owner from Gulf Breeze, Fl
Jan 11, 2023 12:15 pm

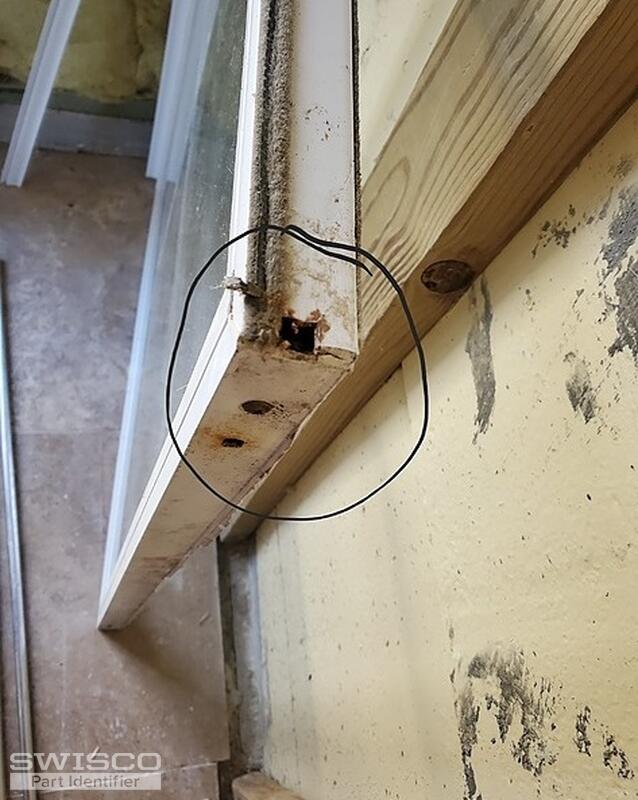

Please help me find parts that will work for this window and provide pricing.

my mistake the diameter of the rod is .560 inch and is out of round. thank you

Screenshot_20230110_171623_Gallery Screenshot_20230110_174534_Gallery Screenshot_20230110_153108_Gallery Screenshot_20230110_152405_Gallery
4 user uploaded images
3 Replies
Casey from SWISCO
Jan 12, 2023 1:03 pm


Take a look and compare the specifications of the S600-42 spiral balance with a red tip option to your assembly.

As for your pivot shoe, see the 15-046 that is often used with the S600 balance and has the same width and thickness you've provided.

It looks like you are also missing the pivot bar. We should be able to help with that part as well but we would need to see an undamaged version removed from one of your windows, along with written-out dimensions, to compare to our inventory. Thank you!

Home Owner from Gulf Breeze, Fl
Mar 20, 2023 3:53 pm

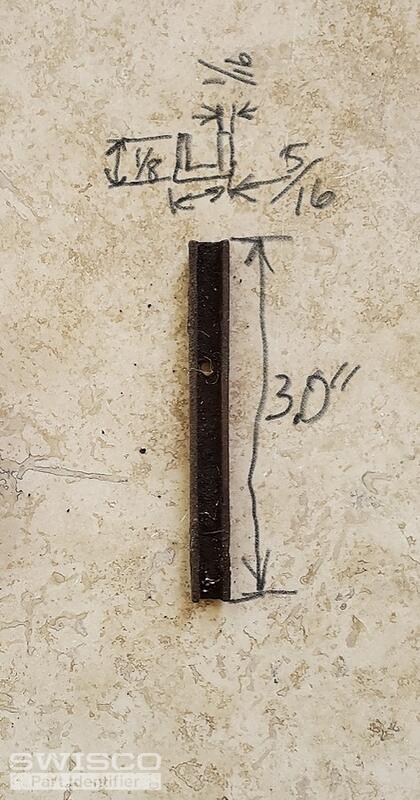

I am ready to order. attacked is the pivot Bar picture.

10- pivot bars see picture
below items discribed earlier
10- SPRIAL Balance
1- adjustment tool

make sure the pivot bars match the shoes.sorry it took me so long to get back to you.

thank you
1 user uploaded images
Casey from SWISCO
Mar 21, 2023 9:46 am

Thanks for getting back to us. The 15-046 pivot shoe is commonly used with the 26-040 pivot bar shown below but you would need to confirm if the 2" installation hole backset matches your sash. We've also related a few other similar pivot bars on this page for you to review, all of which should work with the 15-046 pivot shoe.

Alternate image for 26-040
Alternate image for 26-040
