Window Sash Balance

Question

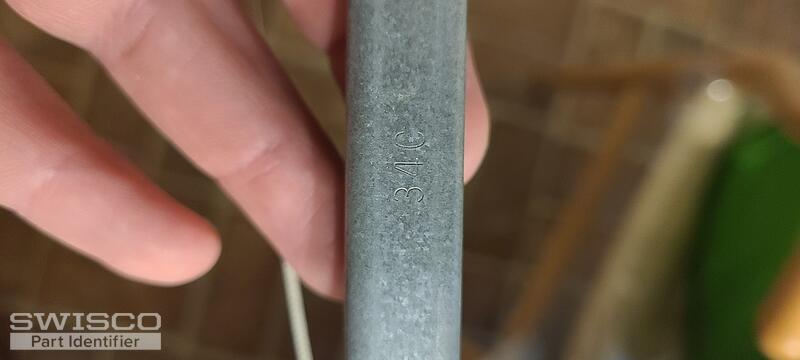

I'm 80% sure this is a 34" 770 series channel balance with a 1 1/4" shoe at the end. 34C is the stamp on it for the weight. Can you confirm or tell me what I need to replace this balance?

Thanks so so much!

Jasmine · Accepted Answer

Thanks for posting! I believe you may actually have the S795-34 with a 34C stamp. The Series 770 features a terminal clip, but yours has a T-Lock shoe.

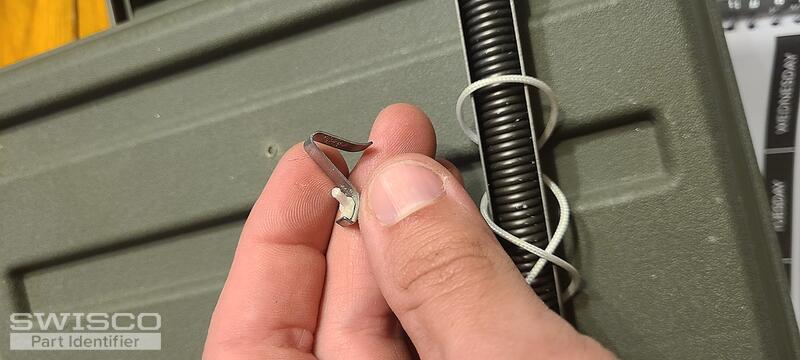

Since your balance has a 15-198 Balance Clip Attachment, there is a chance this may need to be a custom assembly. To determine this I'll need to see a photo of the of the installation hole where the hook/clip installs.

Please let me know if you have any questions in the meantime.
