Window Sash replacement Double Hung

A home owner from Connecticut says:
August 16, 2019
The channel balance is 9/16x 9/16 and marked 26D. The Shoe is also 9/16 thick and 1 1/4 wide. The pin is as you can see broken but is mounted in a full length hold at the bottom of the window and needs to match the shoes.

Just need a set of the three that will work together have two windows (4x sets) I need to replace ASAP.

I'm leaning to the S770-26 channel balance with 15-129 Shoe if those are correct great if not please advise i also need the pin and that is where i'm struggling as well.
Thumbnail of the uploaded file named Window1.jpg
Thumbnail of the uploaded file named Window2.jpg
Thumbnail of the uploaded file named Window3.jpg

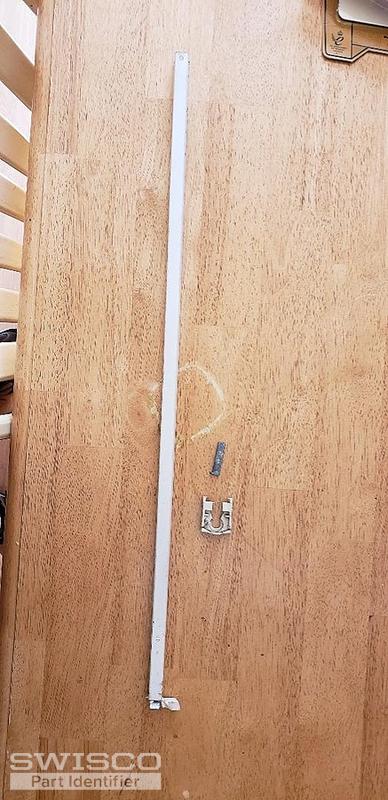

Thumbnail of the uploaded file named Window4.jpg
Profile picture of Tom
Tom from SWISCO responded:
August 20, 2019

Hello,

Your pivot shoe looks like our 15-169 which means, although I cannot see it, that your balance most likely has our 15-170 clip at the end of your pulley. If that is the case, your balance will need to be custom made. Please let us know if your clip matches our 15-170 and how many balances you would like to order.

As for your picot bar, it looks like our 26-021 but make sure to compare the dimensions on our product page to your pivot bar. Thank you!
26" Series 770 Balance
26" Series 770 Balance
S770-26
$12.59
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-129
$2.50
Snap-on clip
Snap-on clip
15-170
$2.45
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-021
$1.97
