26" Series 770 Balance

Product Code: S770-26

26" Series 770 Balance

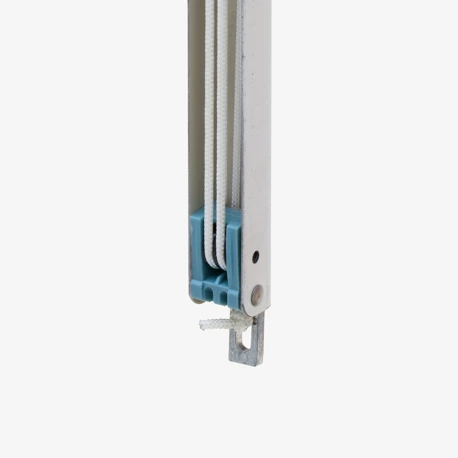

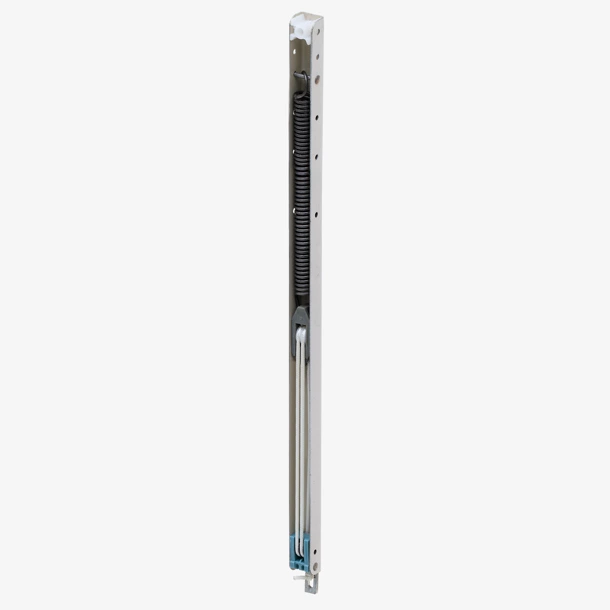

Main product image of the S770-26 26" Series 770 Balance

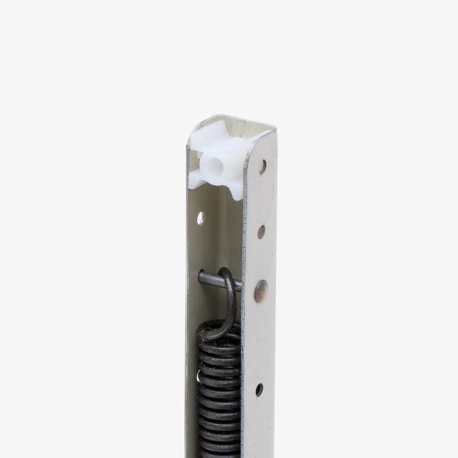

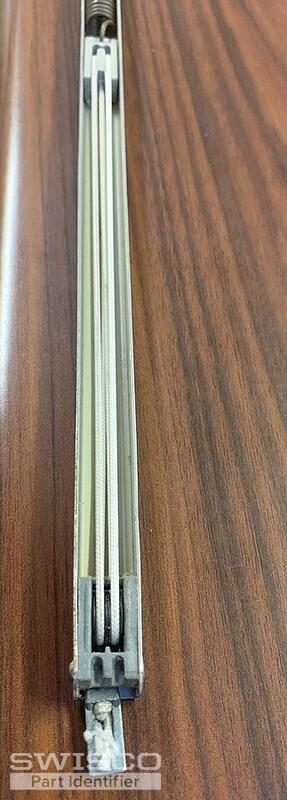

Alternate view of the S770 balance displaying the end of the channel balance.
How to replace a tilt-window channel balance.
$11.75/each
Quantity Price
1-11 $11.75
12-49 $10.57
50-99 $9.99
100-249 $9.40
250+ $8.81
Please Note: Bulk pricing applies only to purchases of the same option
Option:
26A
26B
26C
26D
26E
add $2.00
Product Description
This is a Series 770 channel balance for tilt-in windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.
  • This balance has a 26" long metal channel.
  • Comes fully assembled with a 19-036 top mount screw support and a 15-043 terminal clip attached at the bottom and will be ready to install out of the box.
  • The width of the metal channel measures 9/16".

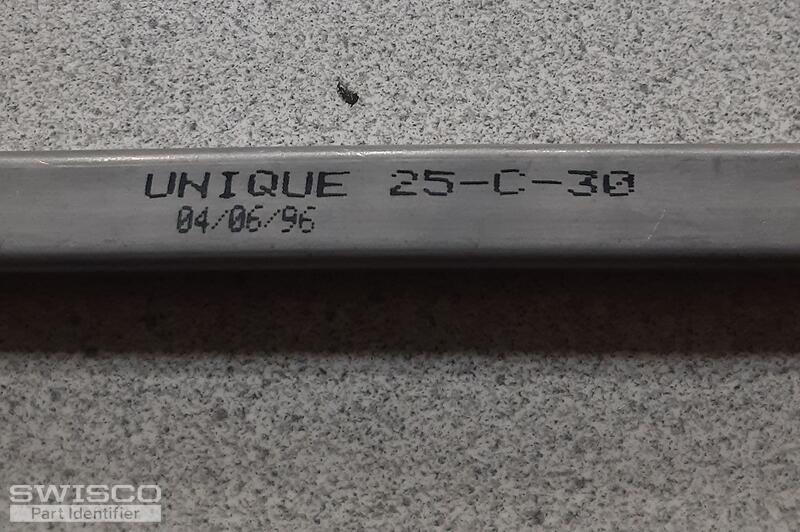

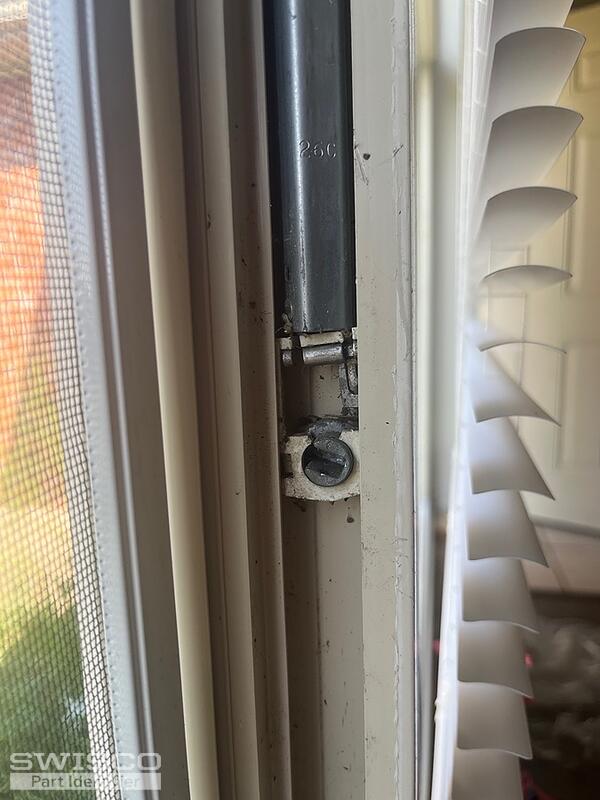

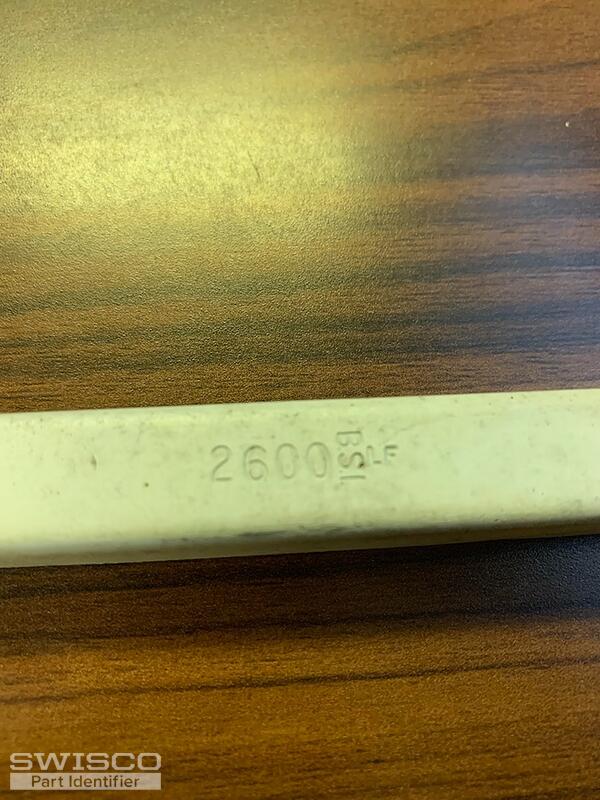

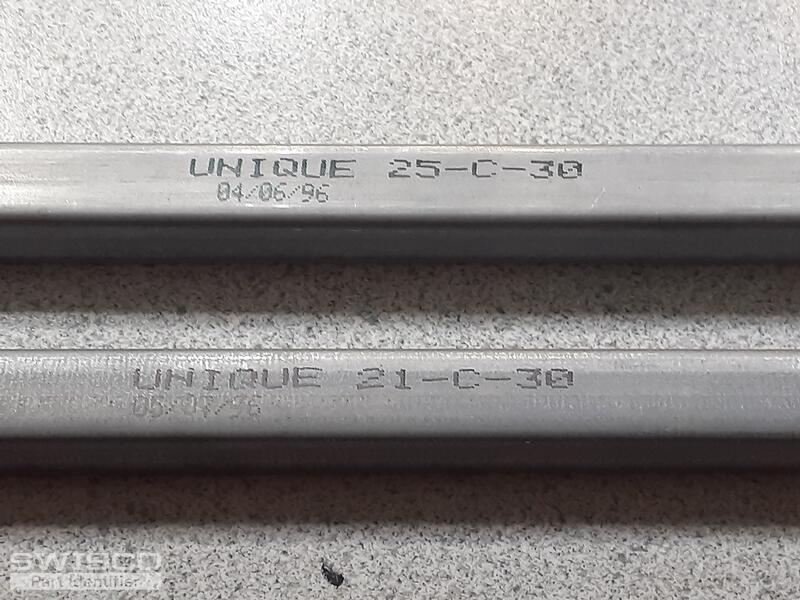

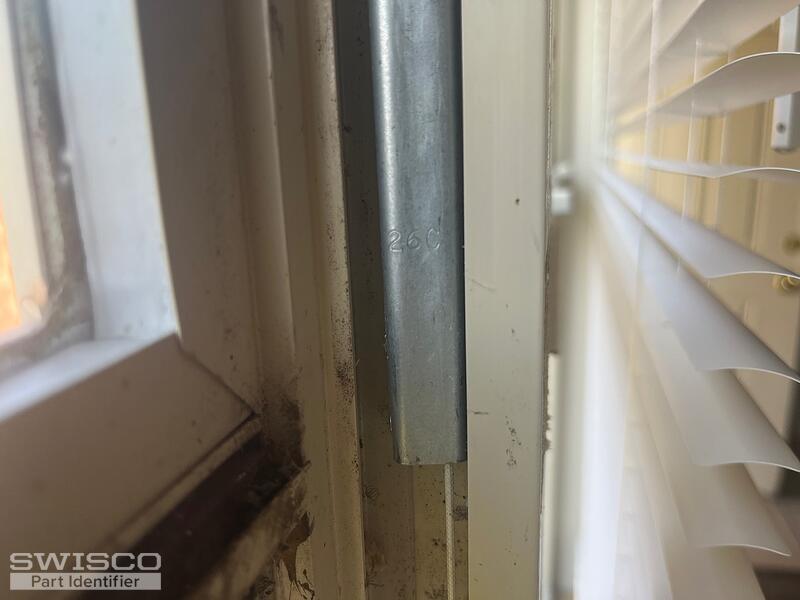

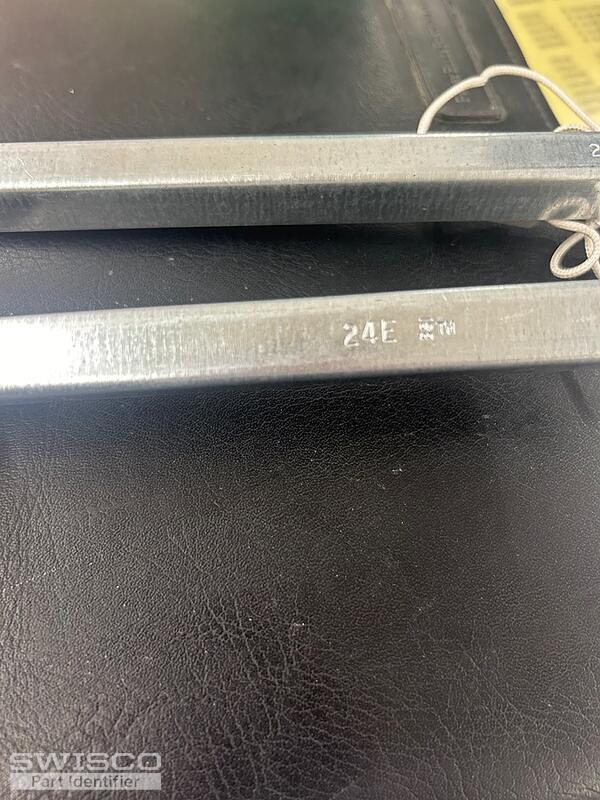

  • The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
  • Can work for either the left or right side of the window interchangeably.
    • Stamp Option Sash Weight Range
    A 6 to 11 lbs
    B 11 to 17 lbs
    C 17 to 22 lbs
    D 22 to 26 lbs
    E 26 to 30 lbs
    *This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Helpful Tip!
This part does not include new fasteners. Do not throw away your original screws, you will need them for the installation of your new part.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!
The stamp option represents the strength of the channel balance. Locate the stamp on your channel balance. If your stamp does not match any of the stamp options available or you are unsure of which stamp option you should choose: ask our experts for help.
