Window balance

A quick learner says:
March 18, 2018

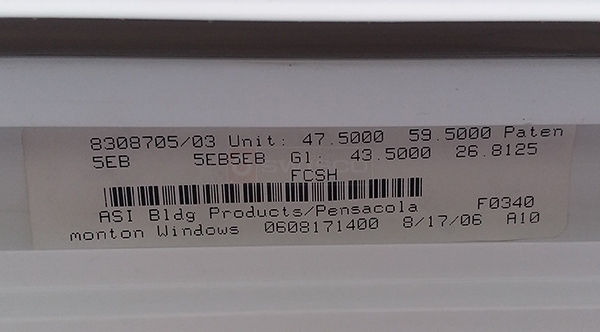

My window does not stay up. When I hinge my window out ,I see that on the right side the white piece is broken. I was told this Covers the balance and needs to be replace. On the window the sticker says Moncton Wintons 0608171400 8/17/06 A10 other numbers listed are 8308705/03 unit: 47 5000 59 5000 paten 5EB 5EB5EB G1 43 5000 26 8125. I would appreciate any help you can give me. If you have this replacement part that I need please let me know and also the cost. Thank you so much. My name is Carol
Profile picture of Tom
Tom from SWISCO responded:
March 19, 2018
That information doesn't mean anything to us. Can you send a photo of the part so that we can see what SWISCO part will replace it?
A quick learner says:
March 20, 2018

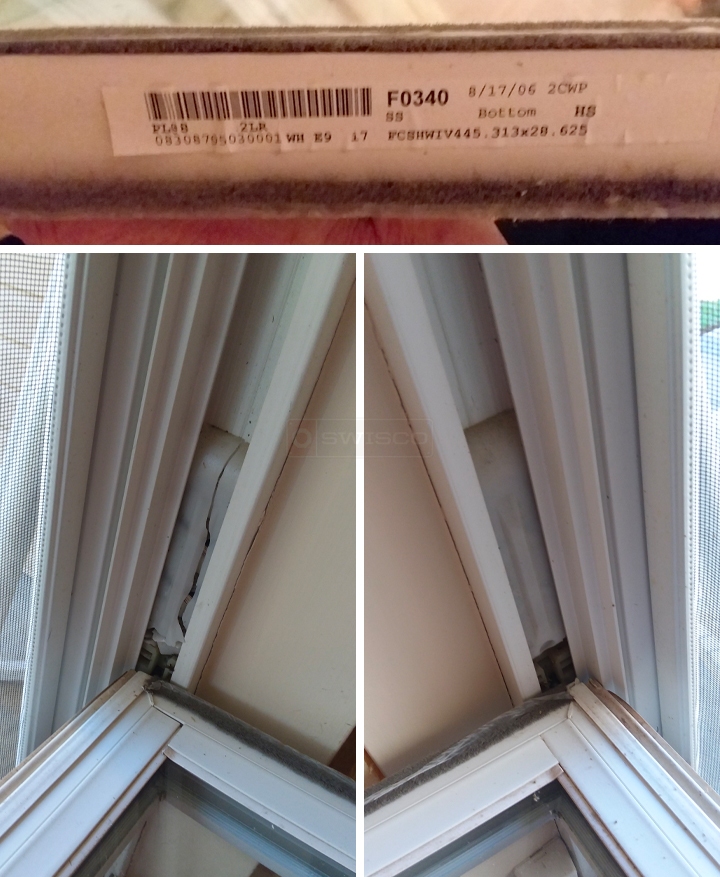

Thank you for you rapid response. Sending the pictures of my window. I hope you can help me with my window

User submitted photos of window hardware.

User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
March 26, 2018

Thank you! We believe you have our 3/8" thick Series 165 coil balance with a 15-199 pivot shoe. For the cover, see either our 15-205 (for 3 springs) or 15-206 ( for 4 springs). We see you have one broken cover and the coil springs under it might have sprung. See our related videos for installation tips.
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-199
$3.70
3/8" Egress Coil Quad Support
3/8" Egress Coil Quad Support
15-206
$2.92
3/8" Egress Coil Triple Support
3/8" Egress Coil Triple Support
15-205
$2.10
3 lb Series 165 Egress Coil Balance
3 lb Series 165 Egress Coil Balance
S165-3
$4.70
How to Replace a Triple Coil Balance System
How to Replace a Triple Coil Balance System
VIDEO
WATCH >
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
How to replace a window coil balance
How to replace a window coil balance
VIDEO
WATCH >
Removing a Triple Coil Window Balance
Removing a Triple Coil Window Balance
GUIDE
READ >
