Need a Tilt Window Channel Balance

Quick Learner
Need balances and shoe clip for Patriot 2100 series single hung tilt window
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for writing in. I'm afraid I can't narrow down what you need off of this information alone. Can you show us pictures of the balance and clip out of the window? That would help narrow down what you need. Many thanks.

Quick Learner
....
5 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

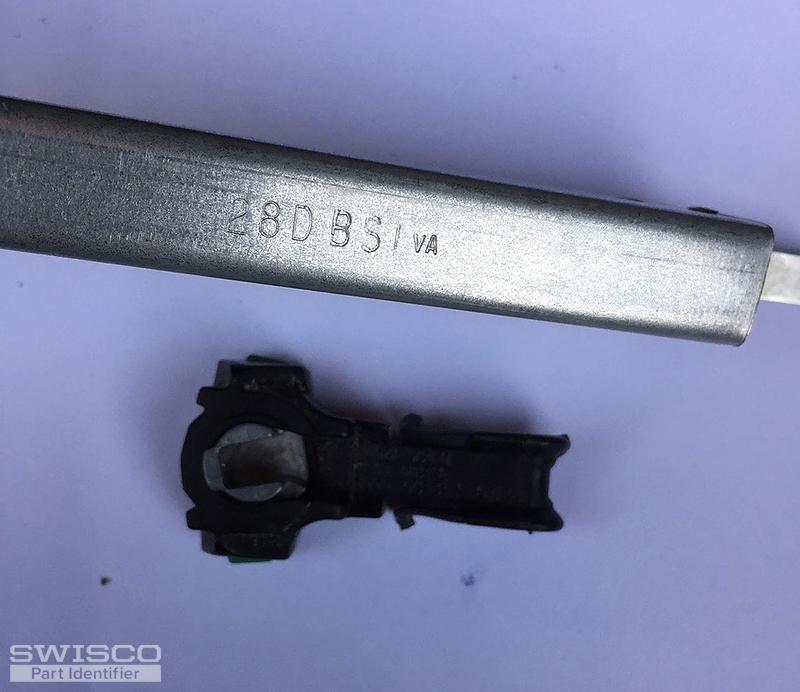

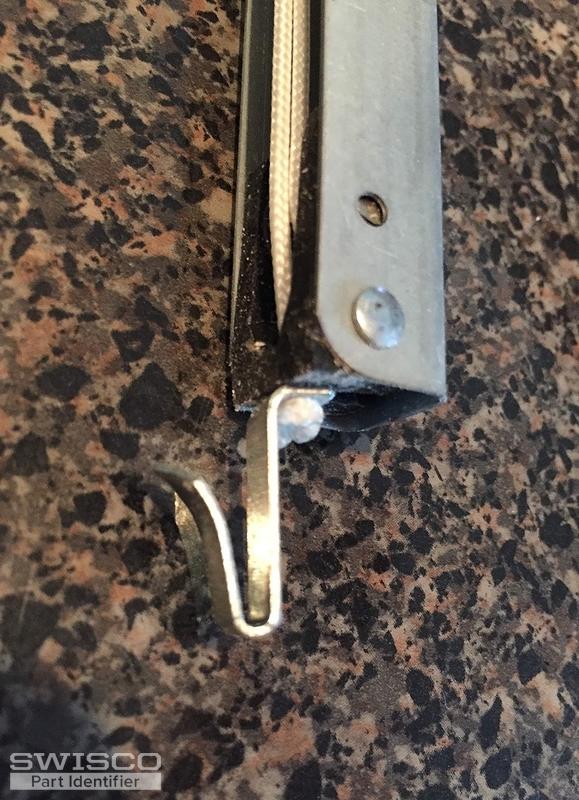

Thanks for getting back to me, this is what we needed to see. So you have our Series 795 Channel Balance with the 15-194 1" T-Lock Shoe, as well as a 15-198 hook at the top. This hook in not built into our standard Series 795 balances, which screw-in to the window track instead. Fortunately, we can custom build these balances for you with the hook attached, as well as the correct T-Lock Shoe.

To be safe, please confirm that your balance's metal channel, not including the T-Lock Shoe, is 28" long.

I am sending you an email with a custom link to order (2) of the 28" Series 795 with a stamp option of 28D, and with the 15-198 hook and 15-194 1" shoe attached. Let me know if you have any questions.
