Window balance HELP PLEASE

Home Owner from McVeytown, Pennsylvania
The string on my window balance broke. From looking at your website I'm pretty sure I need a 24" inch series 795 channel balance. I see a 15-195 t- lock balance is included. I believe I would need a 15-194 T-lock. My t-lock has 3 different pat. numbers on it they are as follows: 4610108
6679000
0467490
And the channel itself says 24C BSI.

If could confirm of what parts I need before I order something I would greatly appreciate it. Thanks, Jessica

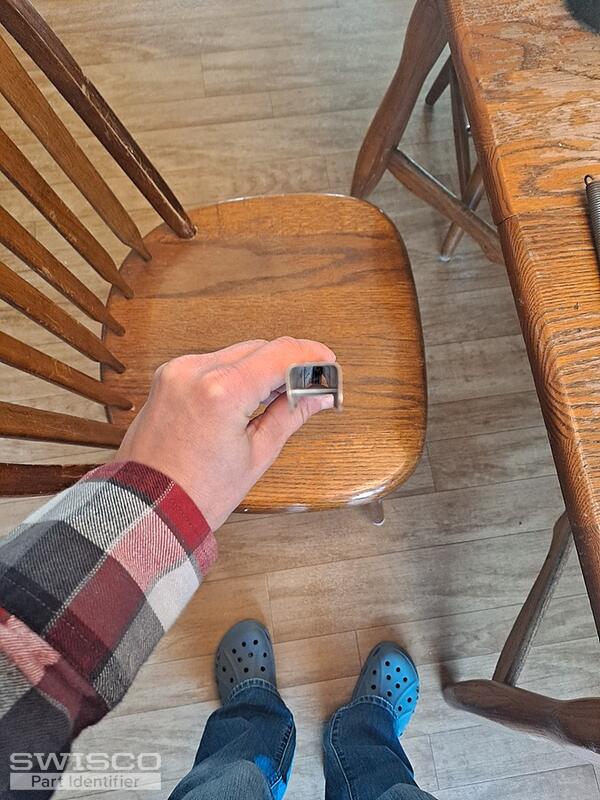

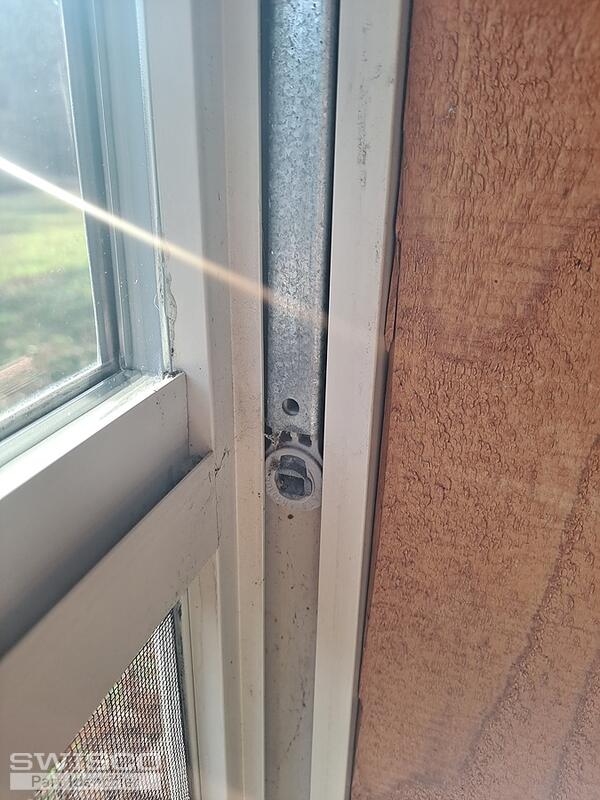

5 user uploaded images
2 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hi Jessica, thank you for posting,

I agree with your assessment. Your balance resembles the S795-24 with a 24C stamp option. You will need to purchase the 15-194 additionally and switch out before installation from the stock shoe.

Please note that the Series 795 uses a screw in clip at the top to install into the window channel. I cannot confirm from your pictures, but if yours uses a hook instead to install like the 15-198 please let us know as this configuration will require a custom order to assemble for you. Thank you!
