Window balance replacement

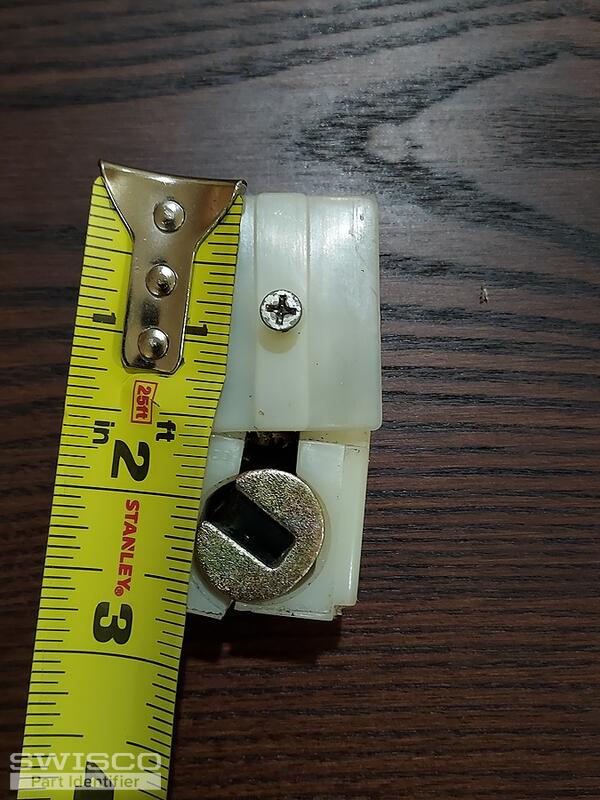

Thanks for posting! Your coil balance assembly appears to be an older discontinued shoe that is no longer available. The good news is that we have two possible replacements that may work for you.
For this, we typically recommend our 15-192 Certainteed pivot shoe to replace your Simonton brand part but you may need to shave down the aligners from the shoe to install it into the window. Take a look at the dimensions to confirm if it may work for you.
These are compatible with the Series 170 coil balances as well as the Series 171. The S171 is stacked on top of the S170 in situations where there is more than one coil. To confirm which coil strength you need, you'll need to look for any stamps/markings on the metal coil. If there are no stamps/markings, you'll need to get the window weight and divide it by the total number of coils in the window. The compatible cover is part 15-156 and the balance drum part 15-157.
The second option is a new assembly that we are also now recommending; the 15-259 pivot shoe. This should fit well in the track, along with the Series 159 coils springs and either the 15-255 single support or the 15-256 double support. To use this assembly, the original pivot bars would need to be replaced with our 26-083. We are still in the early stages of confirming if this replacement is a good long-term solution but we have high hopes that it will work with little need for modifications, if any. Take a look and if you decide to give it a try, we'd be eager to hear how it works out for you.
Be sure to carefully review all of the information to confirm which of these assemblies might be the best solution for your window.
Thanks, ordered (4) 15-92's, to see how they work. All the shoes are broken.
what pivot bars are compatible with a 15-192 Certain Teed pivot shoe?
I'm glad to hear that you were able to narrow it down to the 15-192. To determine the best possible replacement for the pivot bar, I'll need to see a photo of your existing hardware, removed from the window.
There are a few different possible recommendations, however we'll need to be sure that it will be compatible with your sash.
Please let me know if you have any other questions.

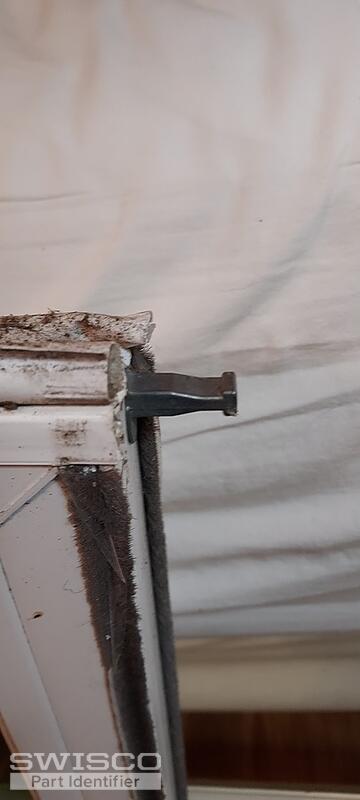

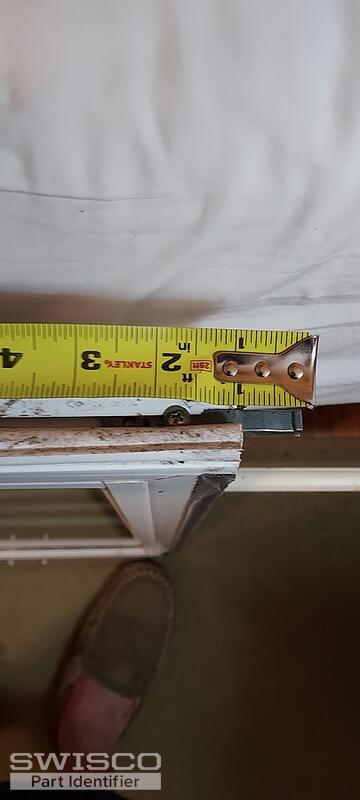

Thanks for the photos. Your pivot bar looks a lot like our 26-336 Simonton pivot bar. You'll be able to use this style with your existing shoe, you just may need to shave down the "collar" so that it will fit into the shoe. Take a look and see what you think.
