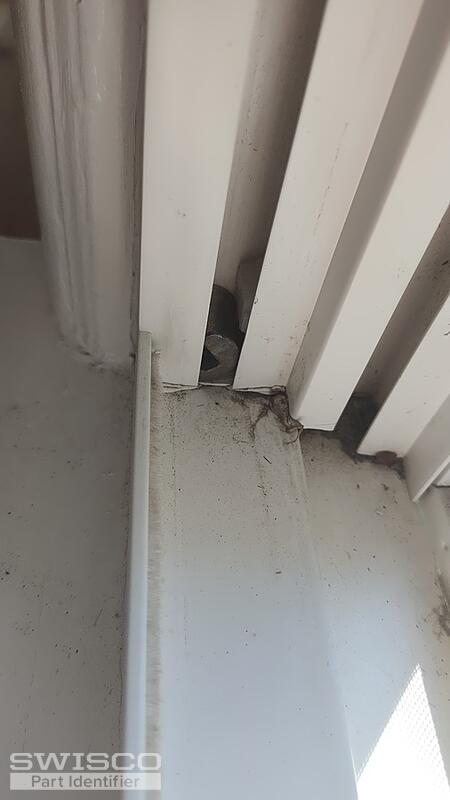

Window balance shoe broken

Thanks for writing in! Your Simonton coil balance assembly can be replaced with the 15-259 Coil Balance Pivot Shoe and the Series 159 Coil Balance. To determine the correct coils for your replacement, you'll need to remove your existing balances and look for any stamps/marking on them. That number will tell you the exact spring you need to complete your assemblies.

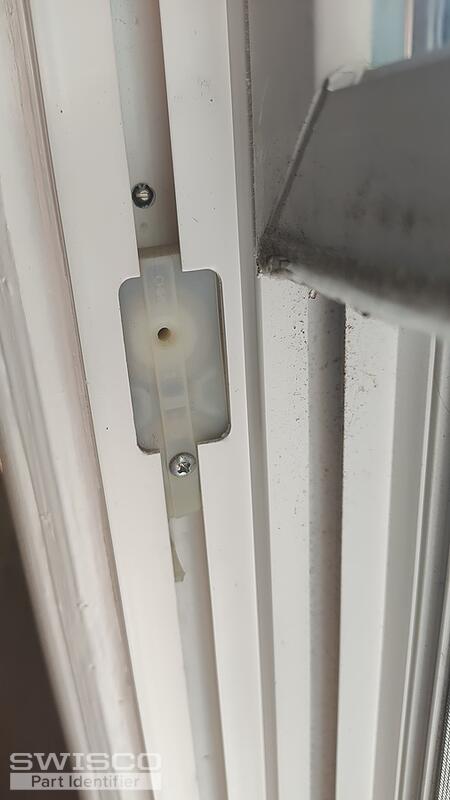

Your existing pivot bar will not be compatible with the replacement shoe, so you'll also need to purchase the 26-083 Pivot Bar. The coil support can be replaced with the 15-256.

Take a look at the video tutorial titled 'How to Replace A Simonton Coil Balance' for a detailed explanation on this conversion.

Dimensions for 15-259

Detail of 26-083
