Window balance and shoe. It has 3 coils in it

Start a new Discussion

Quick Learner from Pennsylvania

Aug 21, 2025 4:50 pm

Need to know the correct part to order

5 user uploaded images

3 Replies

Quick Learner from Pennsylvania

Aug 22, 2025 9:37 am

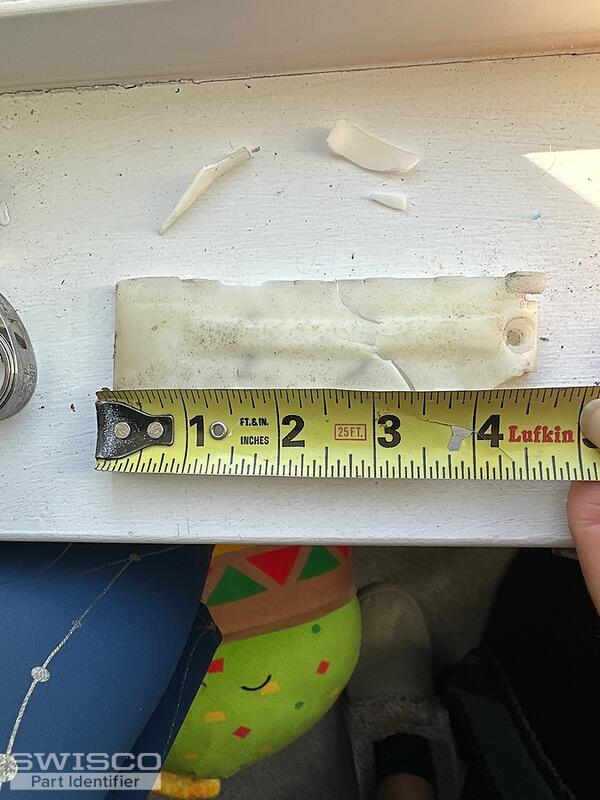

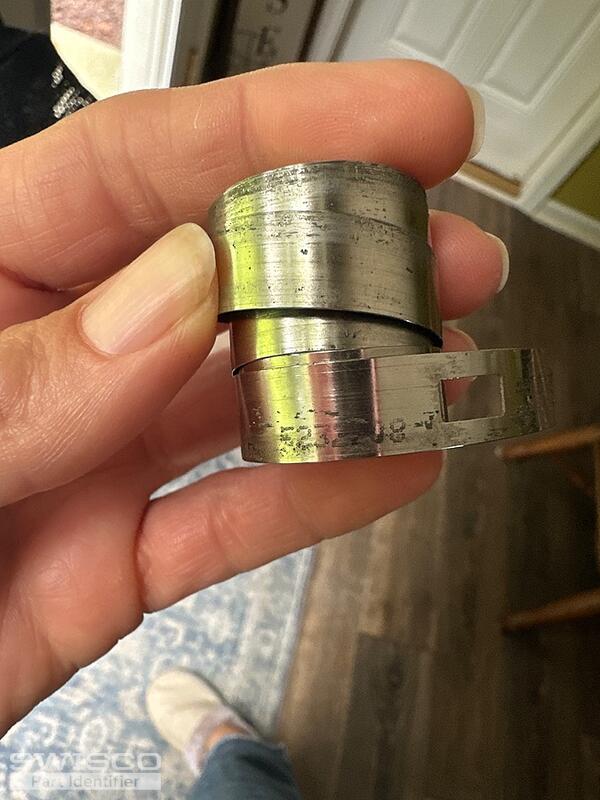

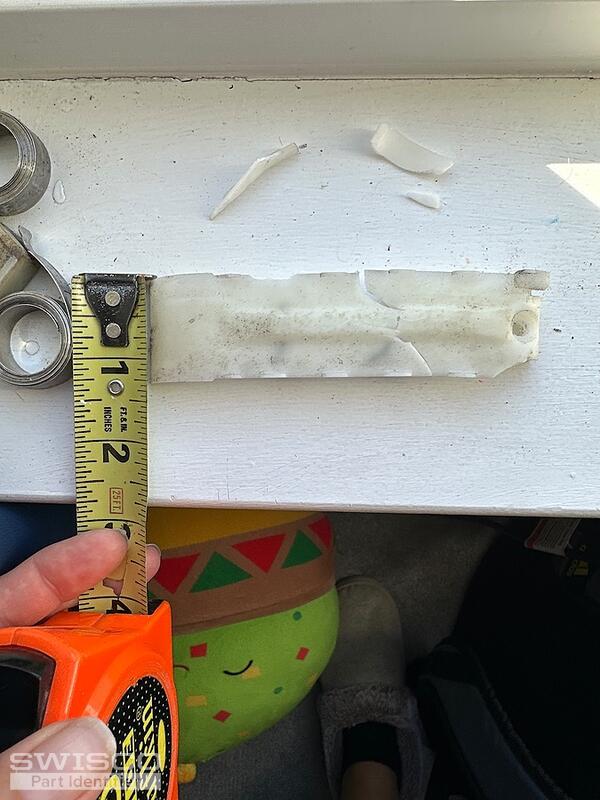

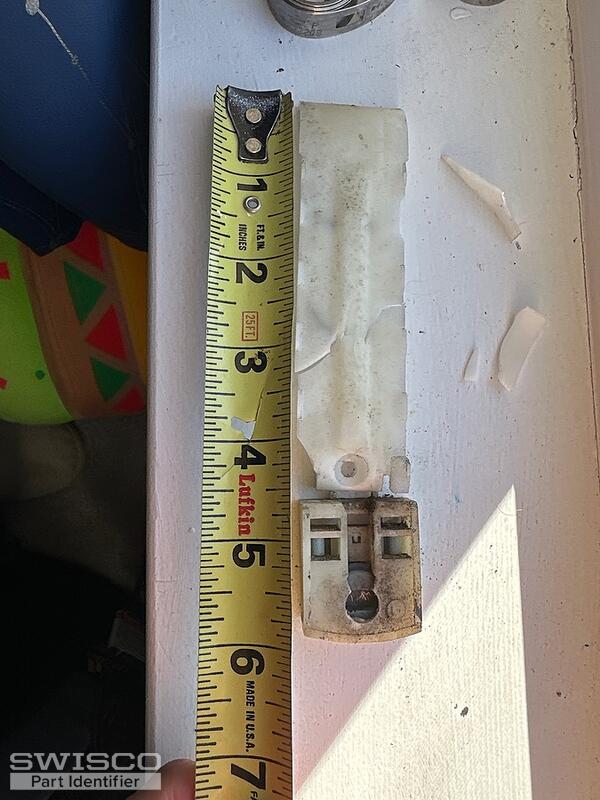

Trying to figure out what to order to replace this balance and shoe. There are no markings at all on the plastic cover and shoe only on the coils. Each balance had 3 coils in it with the markings # 4.0 and 35" p

3 user uploaded images

Jasmine from SWISCO

Aug 22, 2025 11:39 am

Thanks for your post! This balance shoe and cover appear to be the 15-199 Pivot Shoe and 15-205 Egress Coil Triple Support. The compatible coil spring, for this shoe and cover combination, is the 3/8" wide Series 165 Coil Balance.

You'll need to check the coils for any stamps/markings that would indicate the correct replacement springs. Take a look at the video tutorial below for instructions on selecting the correct coils, if they are hard to read.

Alternate view of 15-199
