Window balancer parts

A home owner from Hinckley, Ohio says:
October 16, 2022
I'm in need of these window balancers and pins 4 of each, the coil looks to have a 6.5 on the end. Please let me know if you can help or need more information. Thanks Scott

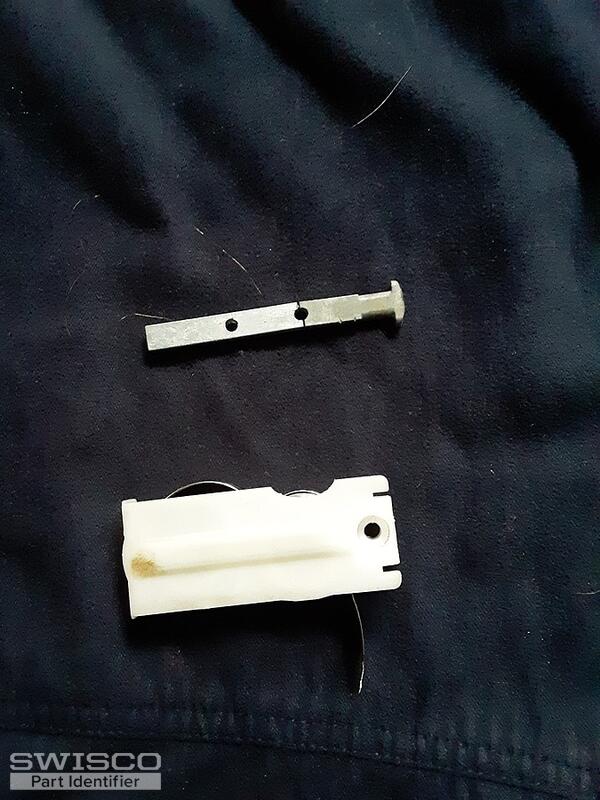

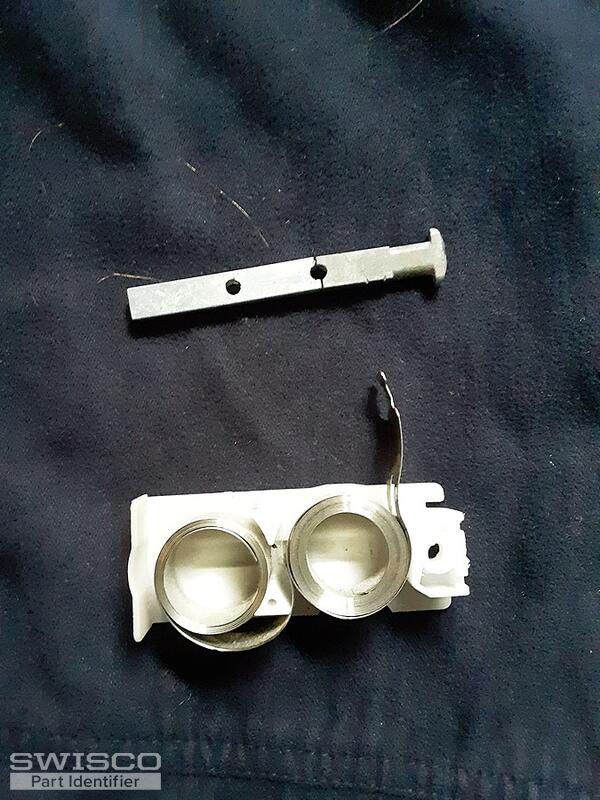

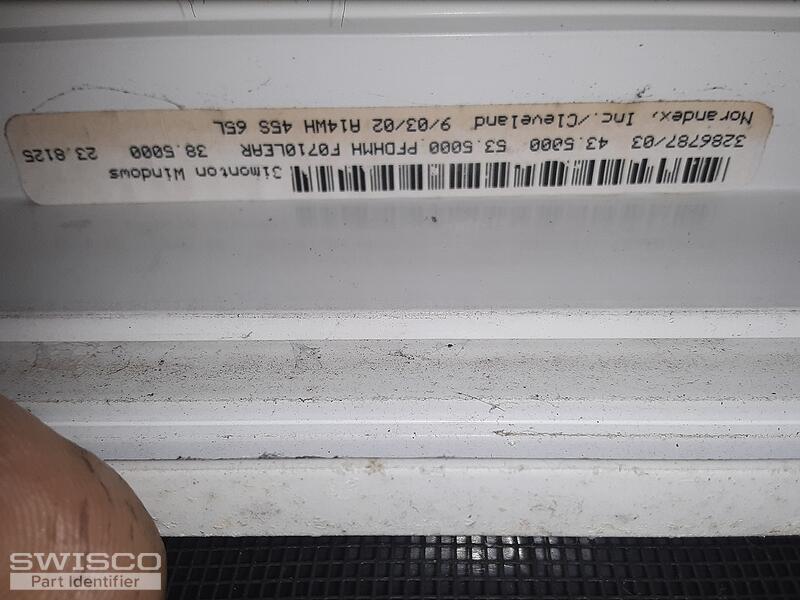

Thumbnail of the uploaded file named 20221004_082108.jpg
Thumbnail of the uploaded file named 20221004_082120.jpg
Thumbnail of the uploaded file named 20220416_100941.jpg
Profile picture of Casey
Casey from SWISCO responded:
October 20, 2022

Hello,

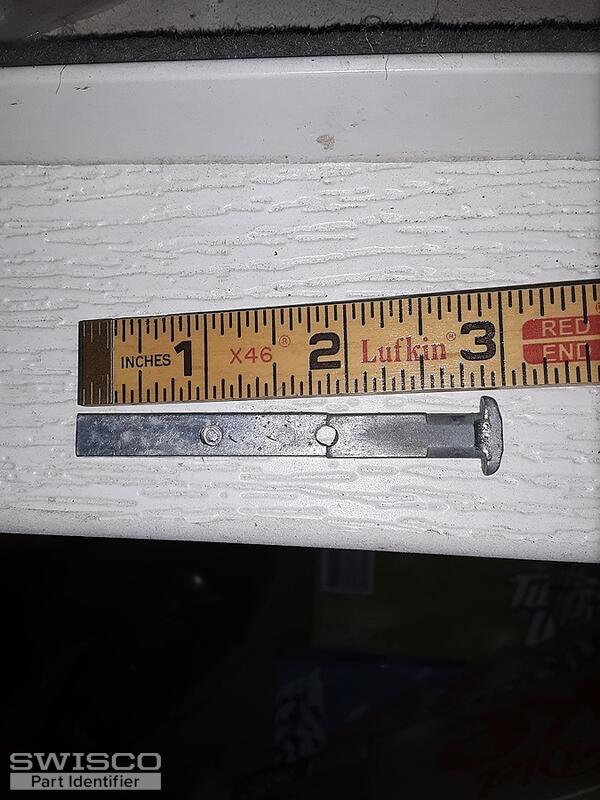

You can start by comparing the dimensions of the 26-378 to your original pivot bar.

As for your coils springs, we would like to see photos of the pivot shoe that they anchor to removed from the window to confirm which replacements would be compatible. Thank you!

Alternate image for 26-378
Alternate image for 26-378
A home owner from Hinckley, Ohio says:
October 27, 2022

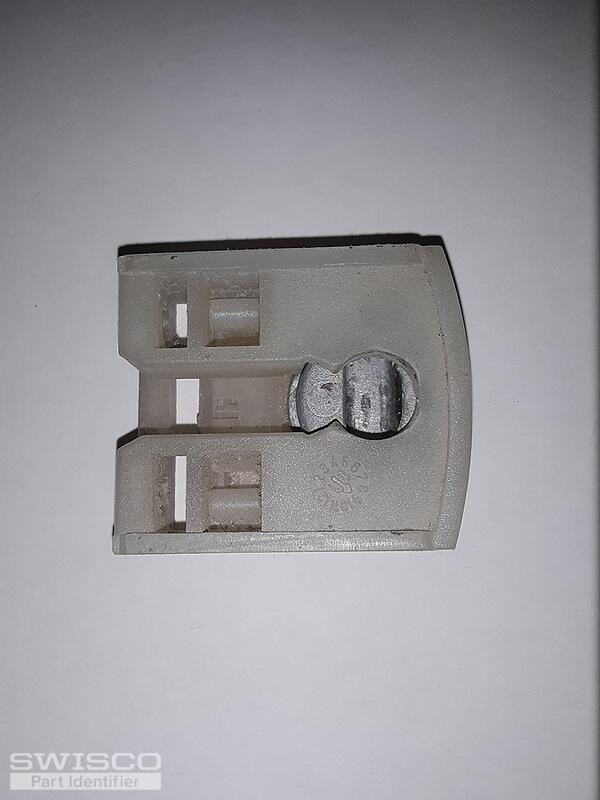

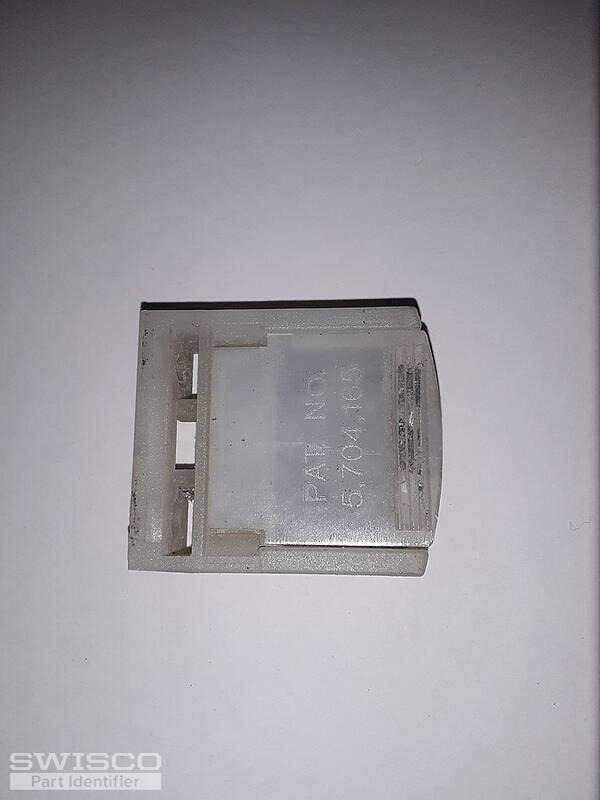

Pivot bar looks correct, this is pic of pivot shoe anchor. Thank you!
Thumbnail of the uploaded file named 20221026_085440.jpg
Thumbnail of the uploaded file named 16669187976482336948422525505338.jpg
Thumbnail of the uploaded file named 16669189119493218771042650840199.jpg
Profile picture of Casey
Casey from SWISCO responded:
October 28, 2022

Great, your pivot shoe looks like a match to the 15-199, which uses either the 1/2" wide S160 or 3/8" wide S165. Take a look and compare the specifications of these parts, along with the related items shown on our product pages, to your original hardware.
3" Pivot Bar
3" Pivot Bar
26-378
$2.10
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-199
$3.70
6.5 lbs Series 160 Coil Balance
6.5 lbs Series 160 Coil Balance
S160-06
$4.85
6 lb Series 165 Egress Coil Balance
6 lb Series 165 Egress Coil Balance
S165-6
$4.87
