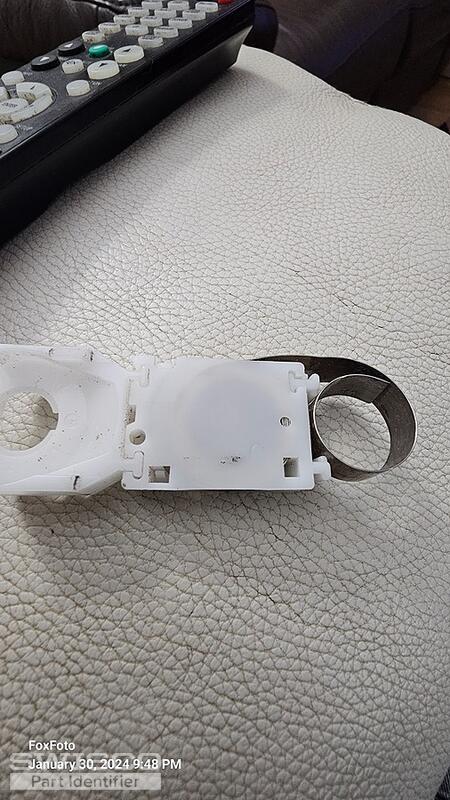

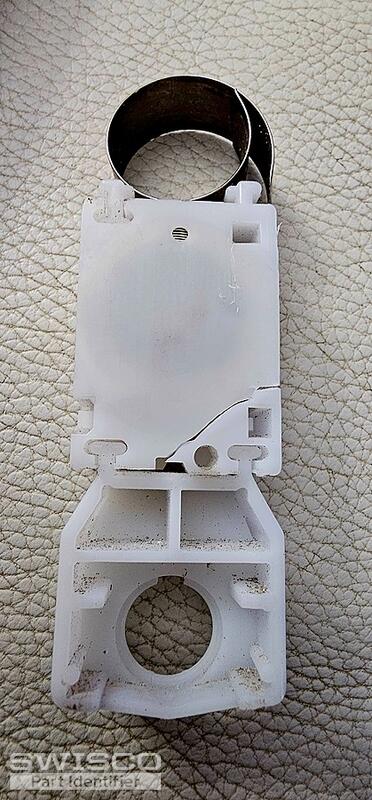

Hello. I see a 7 in dots on the old balances.
I am looking at your S140 range. Would this be the correct fit? I need the mounting brackets as well. The triangular brackets like mine seem to be for the S180 model. Will they work with the S140 model? If not what bracket will I need?
Thankyou
Regarss
Laurence
Thanks for reaching out! You are correct, the coil spring does appear to be the Series 180. This is typically used along with the 15-087 Coil Housing Pivot and 16-024 Mounting Bracket.
To replace your coil assembly, I would suggest using the 15-087 pivot along with the S180-7 coil spring. Although, you'll want to compare the dimensions from this assembly to see if this would be a fit for your window. Take a look over them to confirm. You'll especially want to confirm the length and the thickness.
