Window balances

A handy person from Illinois says:
August 4, 2018
Looking to repair myself but need the proper part. Need at least 3 of these, maybe 4.
Profile picture of Paul
Paul from SWISCO responded:
August 7, 2018

Hello,

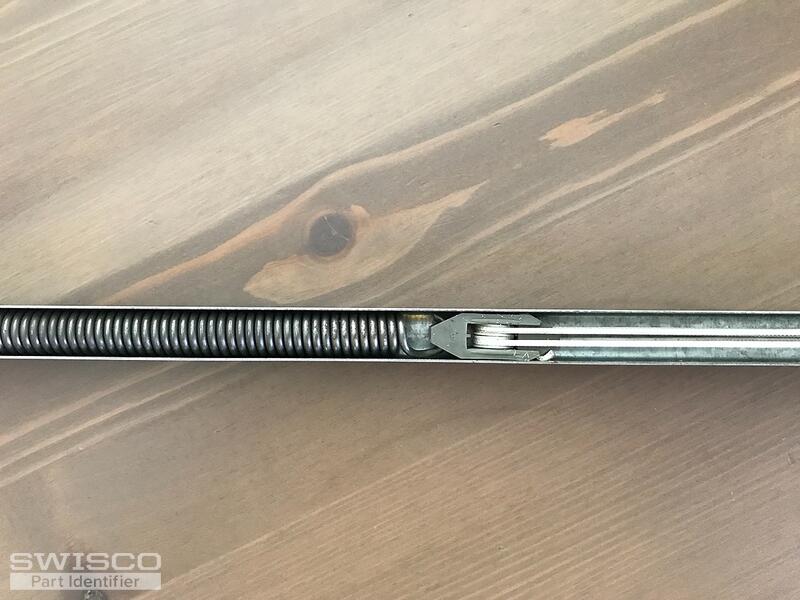

The top fitting is our 15-198 and the bottom fitting is our 15-224. Do you need the balance channel itself? If so, we will need the length of the metal channel and spring code stamped on it. Thank you!
A handy person from Illinois says:
August 7, 2018

The length of the channel is 33"...33D is stamped on the channel. Let me know if you have this channel with hardware inside the channel.

Profile picture of Paul
Paul from SWISCO responded:
August 13, 2018

Ah, okay, thank you! In that case, it will have to be specially made. We'd use the hardware I mentioned above, but installed on an altered Series 795 balance. We'll email you a price quote and order link for 2, which is our minimum.  If you need more, please let me know right here in this thread and I'd be happy to change it.
Balance Clip Attachment
Balance Clip Attachment
15-198
$0.70
Inverted Link
Inverted Link
15-224
$0.95
33" Series 795 Channel Balance
33" Series 795 Channel Balance
S795-33
$14.52
