Quick Learner from Fremont, CA

Aug 2, 2023 11:03 pm

Hi,
My window channel balance springs broke. There is an identical working window in the same room, but the take out clips are gone, so I cannot remove that window to inspect the balances. Please let me know if you need any more info.

Here's what I am able to describe:
- Stamp: 2740H B.S.I.
- length (metal end to end): 27.5"
- 1/2" channel width (measures 9/16")
- non-tilt window

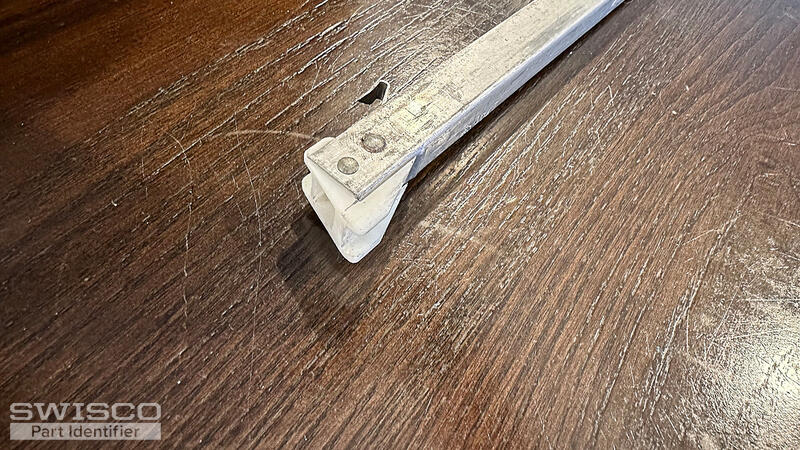

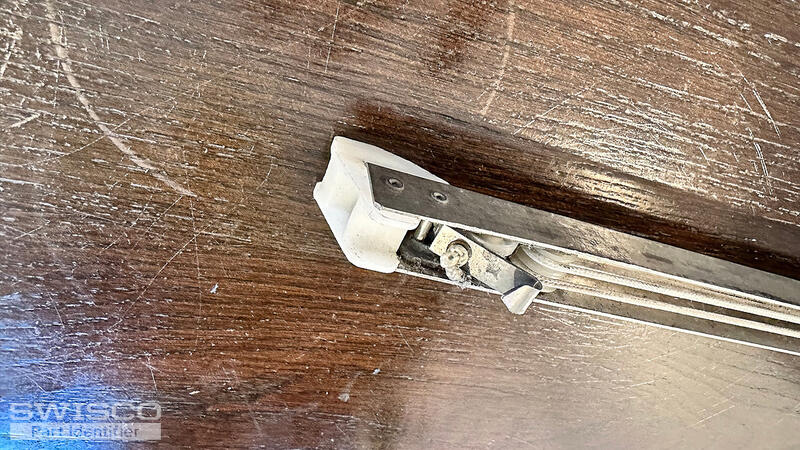

- images of the top guide and show in the attached images

5 user uploaded images

7 Replies

Casey from SWISCO

Aug 3, 2023 1:39 pm

Hello,

It looks like you have either our S351-28, with a 15-002 bottom attachment, or S390-28, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 2740 spring strength option for your replacement balances.

Comparison of the S351 and S390 balance shoes.

If you need new take-out clips as well, I would recommend comparing the specifications of the 16-002 to one of your original clips. Thank you!

Alternate image for 16-002

Quick Learner from Fremont, CA

Aug 7, 2023 7:18 pm

Hi, thanks for your reply!

If my current channel balance is measuring 27.5" (end to end metal), can I use a 28"? Wondering if 0.5" difference matters, or if there is some wiggle room and a 28" will fit and work.

I measured the bottom attach on my current balance, and it is 1", so S351 looks right.

For the take-out clips, mine measures 1 1/4", so looks like 16-002 is right.

Thank you!

Casey from SWISCO

Aug 9, 2023 8:33 am

Thank you for your patience as we looked into this for you. The stock 28" balance would not work for your application if your metal channel only measures 27-1/2" long, not including the end fittings, but we can provide them through a custom order. We just sent over a price quote for you to review. Please note that the 16-002 take-out clips are not included in the link but they can be purchased on the same order by adding the to your cart directly from our website.

Quick Learner from Fremont, CA

Aug 10, 2023 10:21 pm

Thank you. I see the "CUSTOM - S351-27.5" in the quote. Does that include the end fittings? Just wanted to confirm because they are not written anywhere in the quote.

Understood on the take out clips, I'll add them separately myself to the order.

Casey from SWISCO

Aug 11, 2023 8:14 am

Correct, the S351 comes with the 19-002 top and 15-002 bottom fittings shown below. Just let us know if you have any other questions.
