Window coil balance assembly

Question

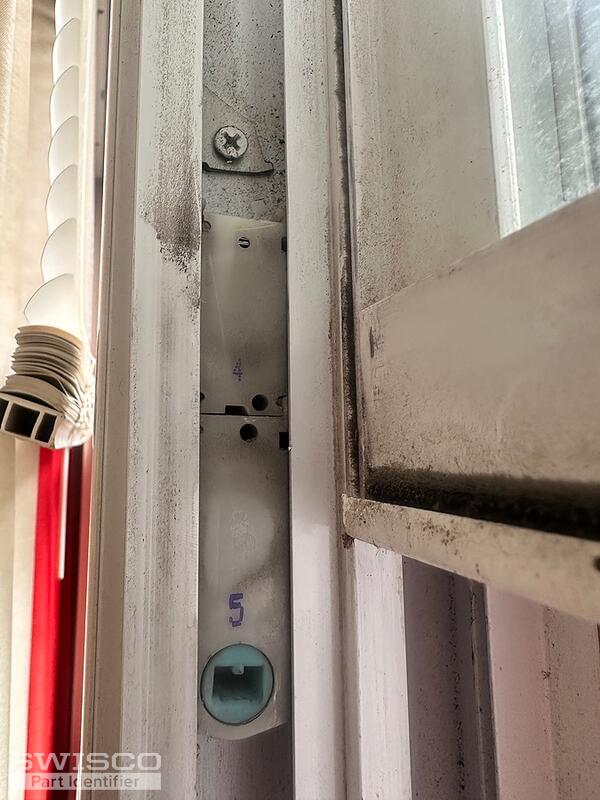

I need help trying to figure it out the part that I need. I'm trying to find out to see if he's available so I can fix my window.

Jasmine · Accepted Answer

Hey there,

Thanks for your post! Your coil balance housing looks similar to our 15-087 Coil Housing Pivot. The part attached to the top is the 15-086 Tandem Coil Housing.

I am confident these are the replacement you'll need carefully compare the dimensions for the bottom housing to confirm that these are the right replacements.

Detail of 15-087

These are compatible with the Series 180 Coil Balance Spring. Since your housings are marked with a 4 and a 5, you'll need the S180-04 and the S180-05 to replace them. The piece anchoring the coils to the window track is the 16-024 Mounting Bracket.
