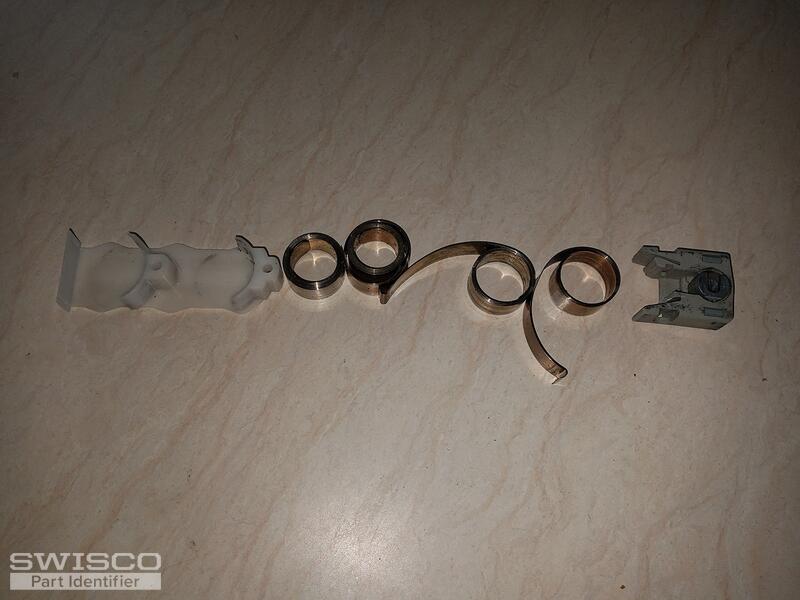

I need two complete coil spring assemblies as shown in attached pictures. The coil spring is .492 inches wide.
The metal window anchor is 1.500 inches long, 1.250 inches wide and .586 inches thick.

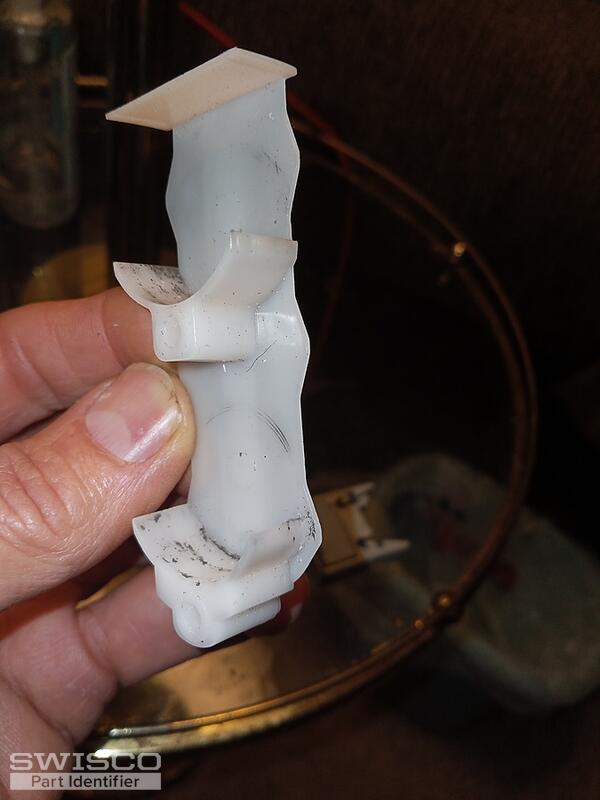

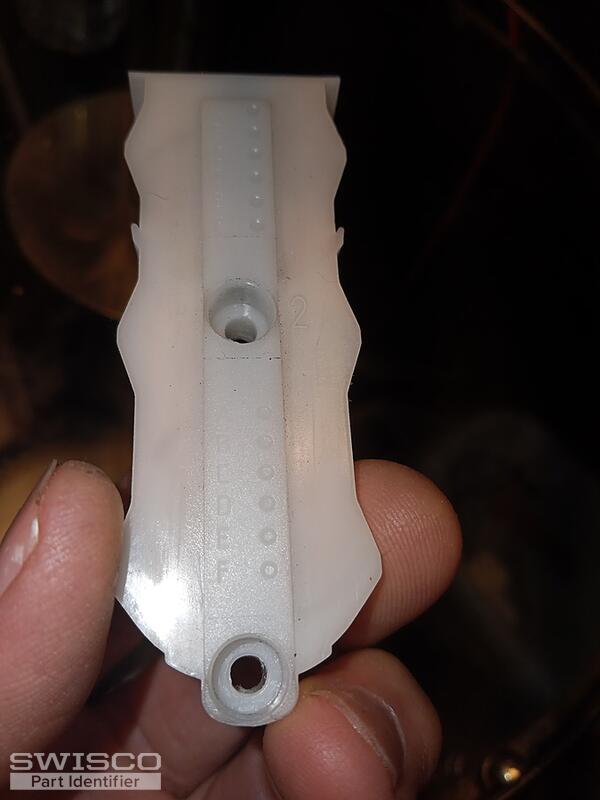

The plastic coil spring holder is 3.500 inches long, 1.258 inches wide and. 612 inches thick.

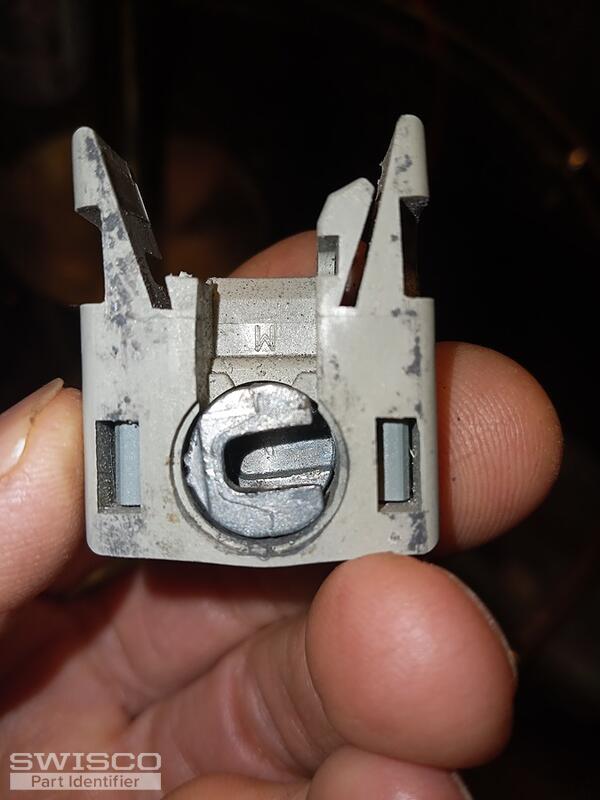

Thanks for reaching out! Your pivot shoe reminds me of our 15-177 Coil Balance Shoe. To determine if this is the right replacement, take a look over the dimensions and compare them to your shoe.
Alternate image for 15-177
This shoe is compatible with the 1/2" thick Series 152 Coil Balance, secured to the shoe using the 33-072 Philips Screw. To determine the correct spring strength for a particular sash, you'll need to look for any stamps/markings on the metal coils in the window.
If there are no stamps/markings or they are hard to read, you'll need to obtain the exact weight of your sash. Once you have the sash weight, you'll divide it by the number of coils in the window; in your case, 4 coils.
To replace the balance cover, you'll need to purchase the 15-143 Coil Bushing, the 15-144 Coil Bushing Cap, and the 15-145 Coil Support Barrel. The barrel would be placed inside the coil; the bushing and bushing cap snap together around them.
As mentioned above, you'll need to obtain the exact weight of your sash and divide it by the number of coils in the window. Since one of the oils is stamped with a 6, you'll likely need the S152-6; confirming the sash weight will help you identify the other.
Unfortunately, I cannot confirm the other based on the provided stamp.
I hope this helps!
