Window coils

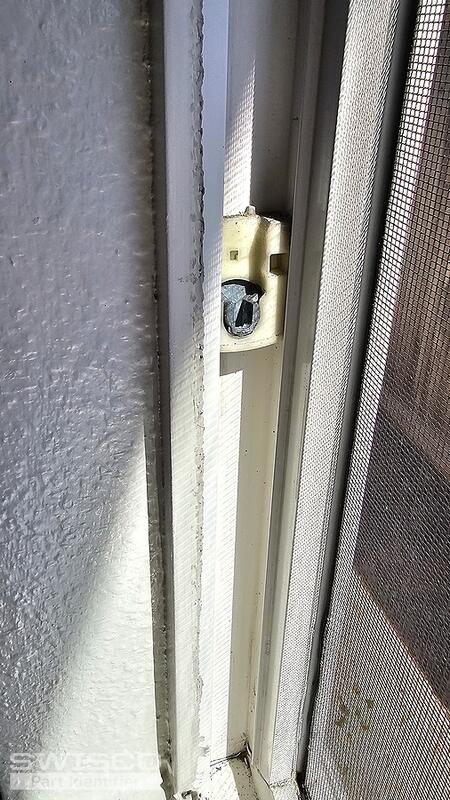

Thanks for your post! We don't have this exact balance shoe but the 15-199 Pivot Shoe should work well to replace it. Take a look over the dimensions below to confirm that this is the right fit. It is 17/32" thick.

The compatible pivot bar is the 26-378.

Alternate view of 15-199

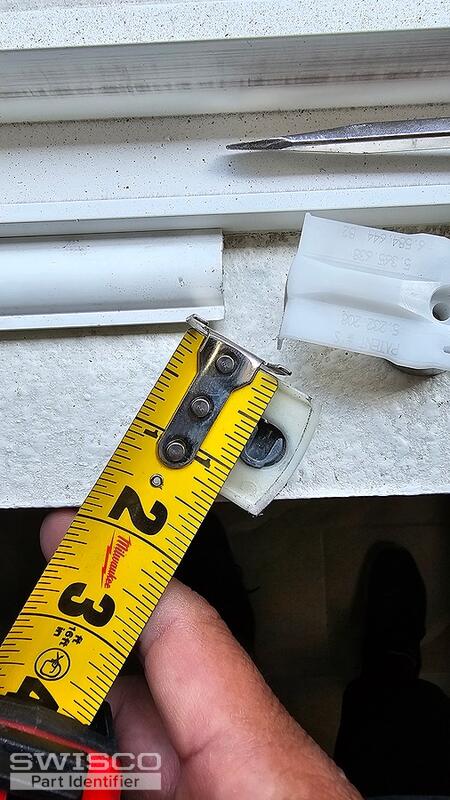

It looks like the with of your coil is 1/2" wide but you'll need to double check this. If so, you'll need the Series 160 Coil Balance. Your coil appears to be stamped with a #6.5, you'll need the S160-06. Be sure to double check the stamps on all of the coils.

The covers can be replaced with the 15-150S 1/2" Coil Single Support.
