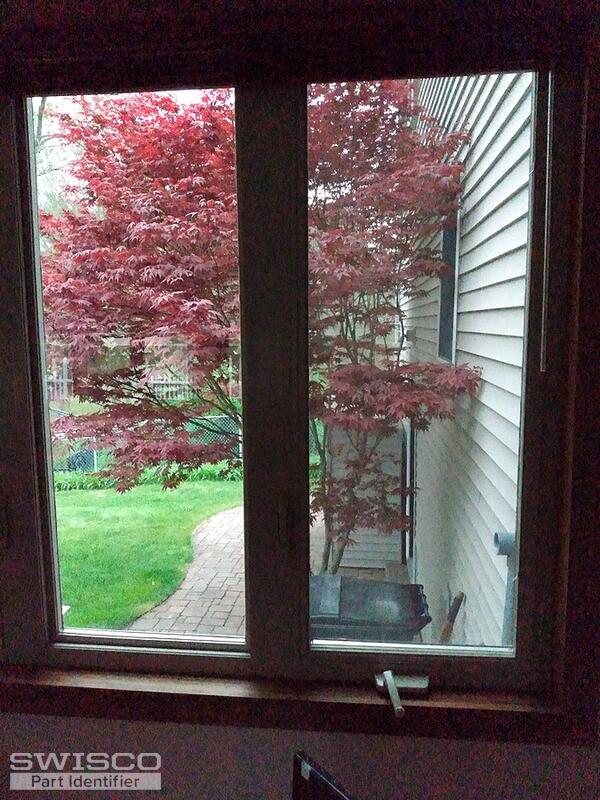

We have Pella crank out windows in our sunroom. Two of these mechanisms have need to be replaced. Can you tell me the part numbers for these and how I can order them? Let me know if you need any further information.
Thank you!
Chris

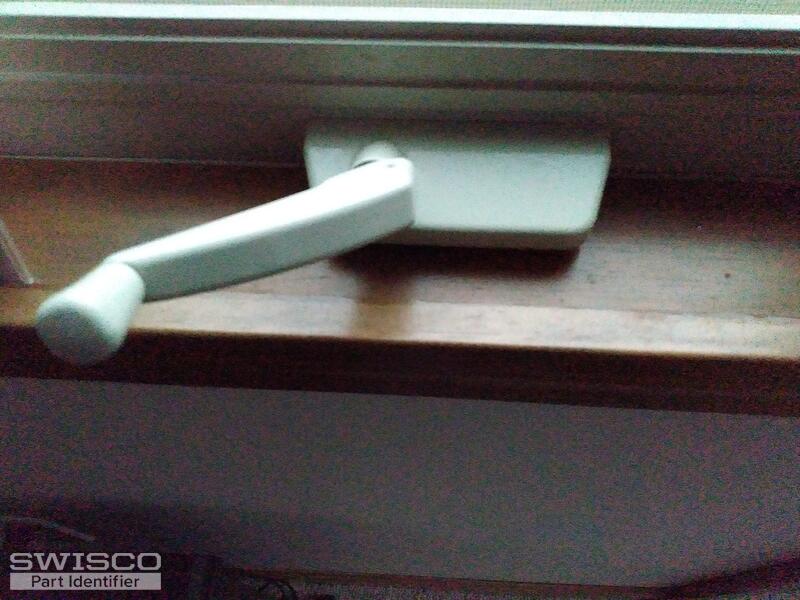

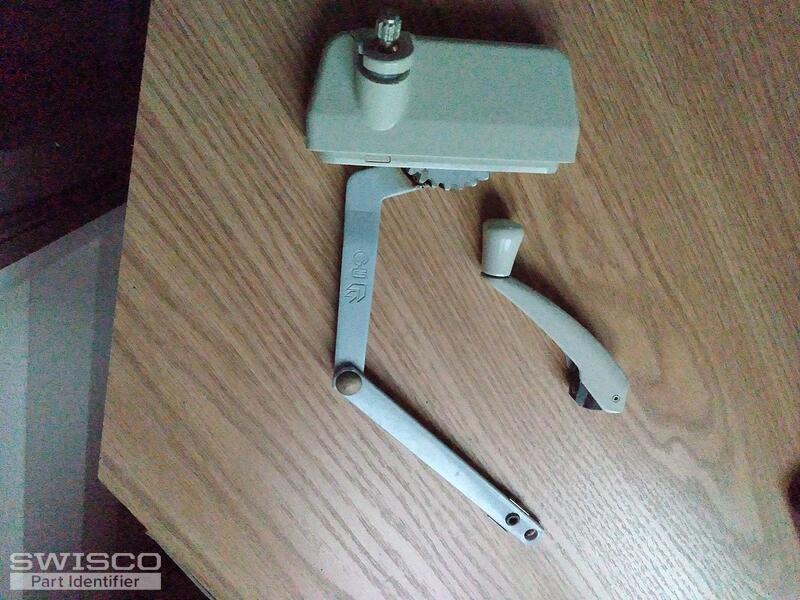

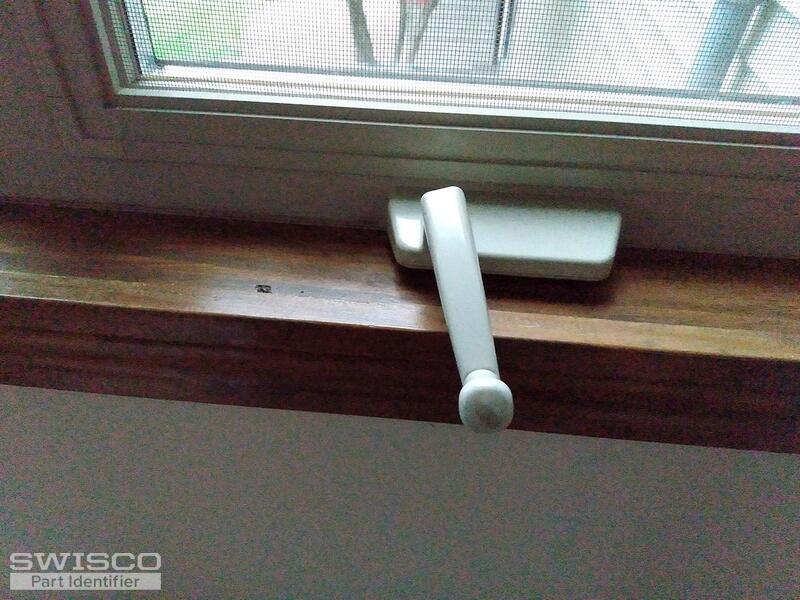

Window crank mechanism
Home Owner from Medway, Massachusetts
May 9, 2023 12:25 pm
4 user uploaded images
2 Replies
Jasmine from SWISCO
May 11, 2023 12:03 pm
Hey there, thanks for writing in! It appears you have an older GU operator which has been discontinued and is no longer made. The good new is, we do have a replacement solution that should work to help with replacing this hardware. For this project, you'll need the 39-316 casement operator; the opposite handed version is 39-315.
Alternate image for 39-316
These are compatible with the 39-513 and 39-514 brackets. To determine the exact bracket needed for your window, you'll have to compare them to your existing bracket.
Dimensions for 39-513
You may also need the 39-114L non-folding or 39-205 folding crank handle.
Take a look at the video below for details on how to replace this operator.
