Quick Learner from Bermuda

Jun 1, 2023 3:48 pm

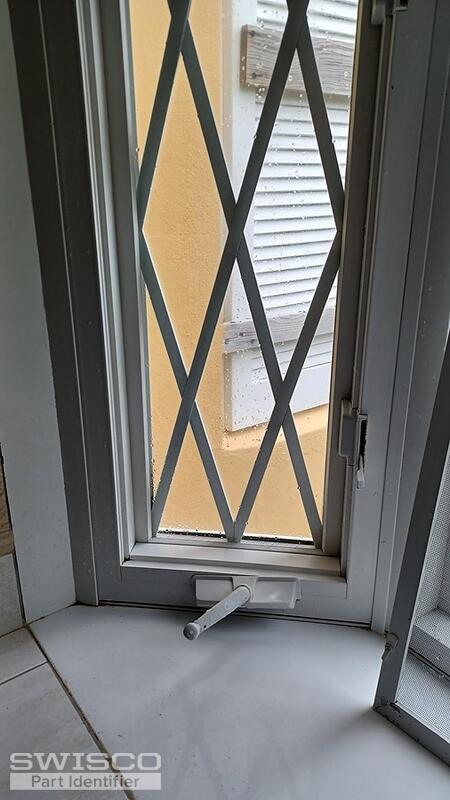

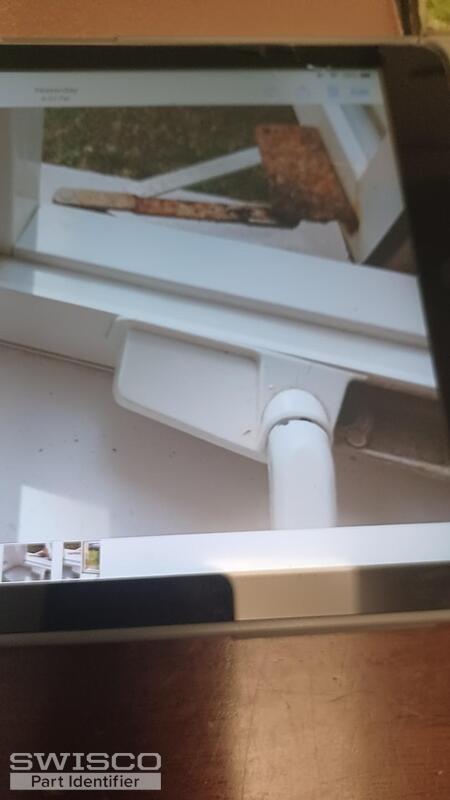

This is the window handle that allows the window to be opened.

We require 4 if you can assist.

I do not have a photo of it unassembled unfortunately.

Thank you for your help.

Jennifer

5 user uploaded images

9 Replies

Bob from SWISCO

Jun 4, 2023 8:23 pm

Hi Jennifer. We may be able to help replace this window operator, but unfortunately we cannot proceed further without seeing a picture of the entire operator mechanism. We need to see the entire assembly, including the link arm(s) that push and pull the window. If you could open the window and give us a bird's eye view of the whole assembly including those arms, that would help a bunch. From there we'll do our best to narrow this down for you.

Quick Learner from Bermuda

Jun 7, 2023 10:57 am

Hello Bob

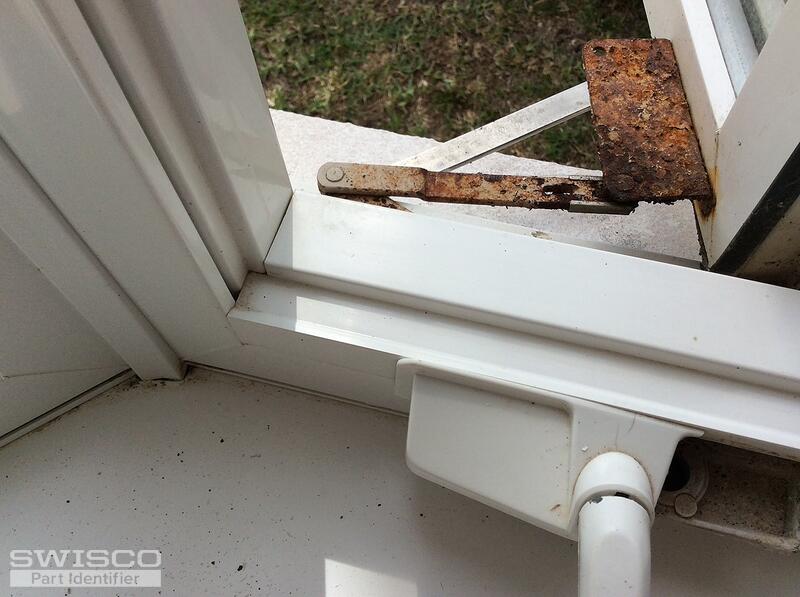

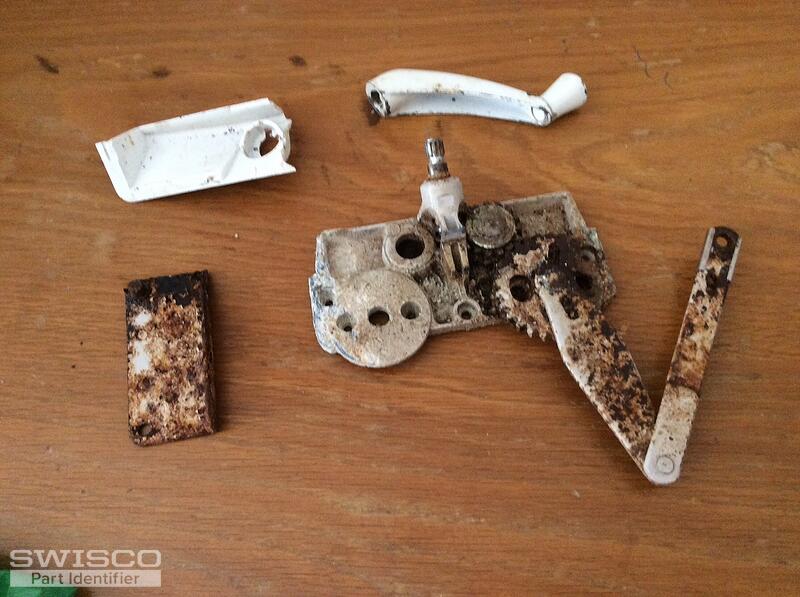

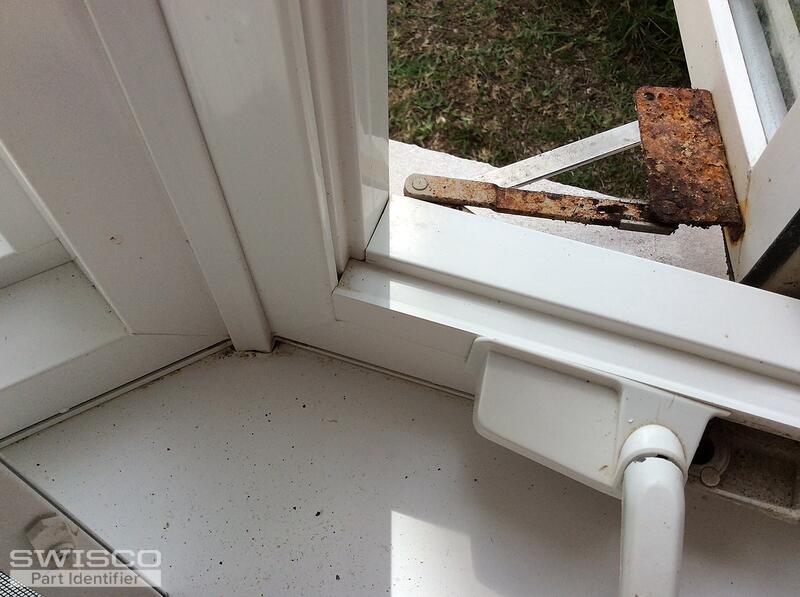

Thank you for your note. Attaching more photos.
In actual fact we will need the entire assembly x 4.

Hoping you can assist.
Thanks
Jennifer

3 user uploaded images

Bob from SWISCO

Jun 7, 2023 2:22 pm

Thank you! That's a huge help. This operator appears to match our 39-035. We also sell the 39-036 for the opposite side, as well as the 39-107 cover and 39-114L handle.

Please look these parts over and let me know if you had any questions!

Dimensions for 39-035

Quick Learner from Bermuda

Jun 8, 2023 9:34 am

Hi Bob

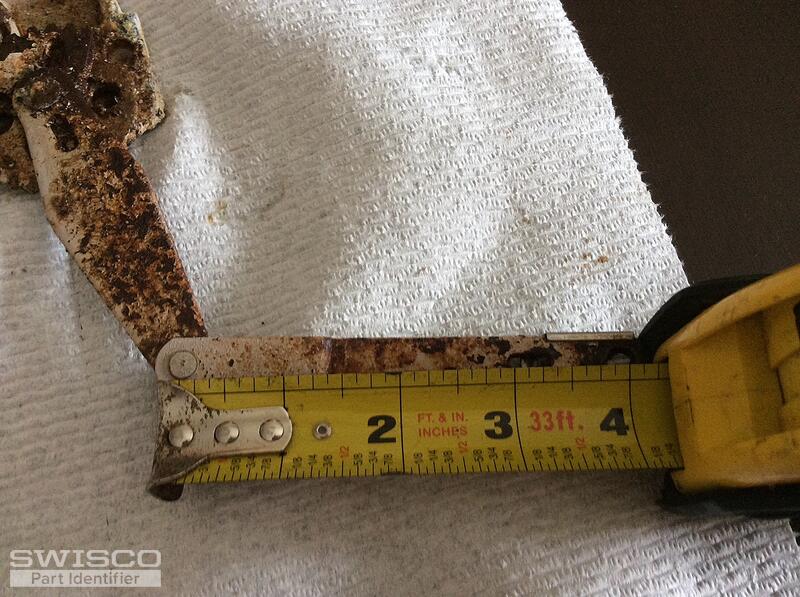

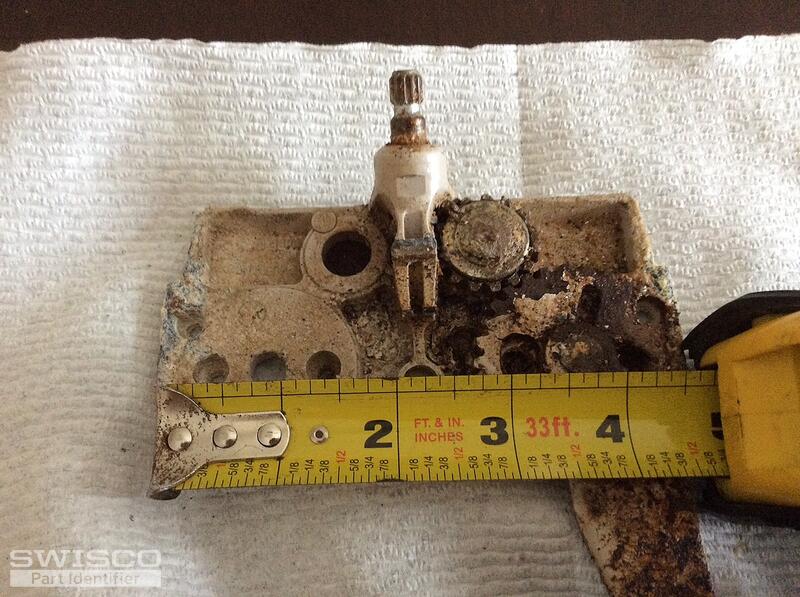

Please see photos and measurements as the one part of "arm" is bigger. Will it still work.

Thanks
Jennifer

2 user uploaded images

Bob from SWISCO

Jun 8, 2023 1:35 pm

I don't see a significant difference in size between your arm and ours. It does appear to be roughly 3-15/16" from center of rivet to center of hole. Can you verify that? Make sure that you're not measuring the full length of the arm, just from center of rivet to center of hole, same as how we show on the diagram above.

Quick Learner from Bermuda

Jun 8, 2023 8:23 pm

Hi..yes agreed now.

We need to order for two windows,

39-035 x 2
30-036 x 2
39-107 x 4
39-114L x 4

Please let me know process for finalizing order, payment and shipment.

So happy you can assist!
Jennifer

Quick Learner from Bermuda

Jun 9, 2023 8:35 am

Thanks for your help Bob!

Truly grateful! Have a great day!

I figured out how yo order and ship...

Thanks again

Jennifer

Bob from SWISCO

Jun 9, 2023 9:55 am

You're welcome! We really appreciate the order, too, it means a lot.

Please let me know if we can be of any further help.
