Window part replacement

Hi Joe,

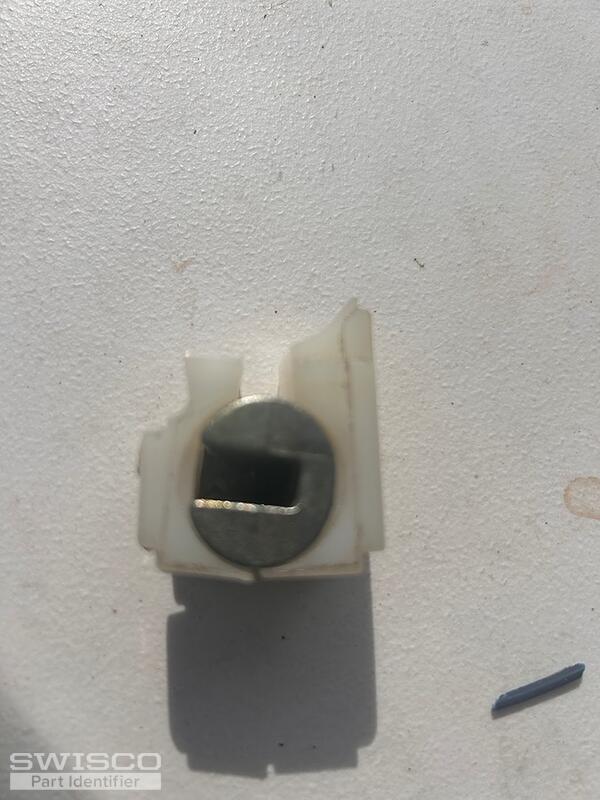

Thanks for posting! The coil balance shoe you have here appears to be an older, discontinued Simonton coil shoe. To replace this, we suggest using the 15-259 Coil Balance Shoe which is used with the Series 159 Coil Balance. The coils are compatible with either the 15-255 single support or the 15-256 double support.

Keep in mind, your existing pivot bar isn't likely to be compatible with the recommended shoe. That said, you'll also need the 26-083 Pivot Bar.

Take a look at the video tutorial below for a detailed explanation.
