Simonton Window parts

A home owner from Illinois says:

April 28, 2020

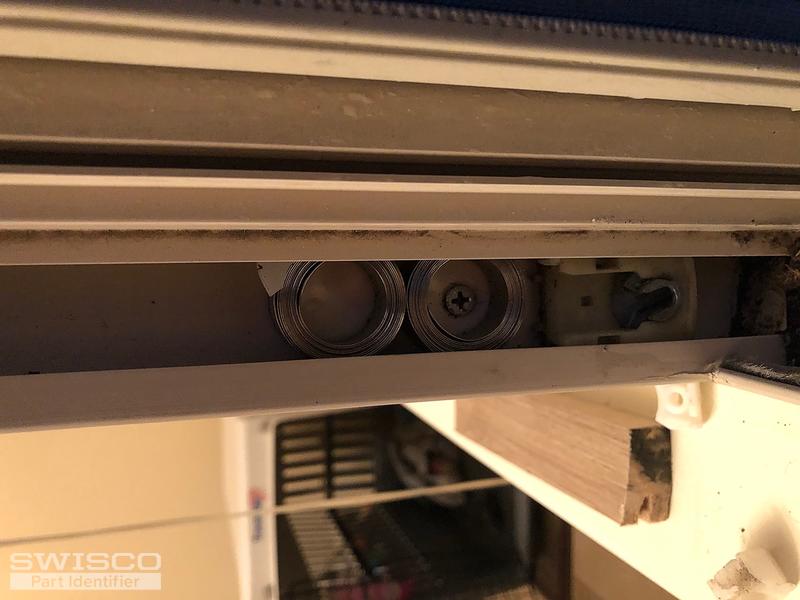

I'm looking for the balance parts for two Simonton windows with the attached information. They are from 2009.

One window won't stay up and the other I can only move up about six inches and it won't go any further.

Thumbnail of the uploaded file named A9AE1867-706C-4D32-8682-B567DD21DDB5.jpeg

Thumbnail of the uploaded file named BFE11FE9-C1C1-446E-B5CA-124C26B7FD0B.jpeg

Thumbnail of the uploaded file named 020E427C-E892-4F82-B9F6-485B46734CF1.jpeg

Thumbnail of the uploaded file named B233D868-9F27-42B5-9A8E-BE20D0249A7B.jpeg

Paul from SWISCO responded:

May 4, 2020

Thank you for your patience during this busy season. Your nylon coil spring cover looks like our 15-204, which uses our 3/8" thick Series 165 coil spring. You can also use the 15-199 pivot shoe. Please review our dimensions and videos for further help.

3/8" Coil Dual Support

15-204

$1.88

3 lb Series 165 Egress Coil Balance

S165-3

$4.70

Pivot Shoe, 17/32" Thick

15-199

$3.70

6 lb Series 165 Egress Coil Balance

S165-6

$4.87

How to replace a window coil balance

VIDEO

WATCH >

How to Replace a Triple Coil Balance System

VIDEO

WATCH >

How to remove window pivot shoes

VIDEO

WATCH >

Anatomy of a tilt window

VIDEO

WATCH >

Removing a Triple Coil Window Balance

GUIDE

READ >
