Window parts

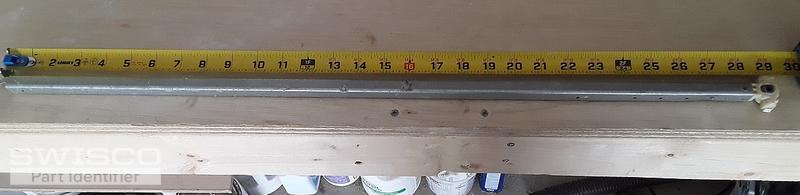

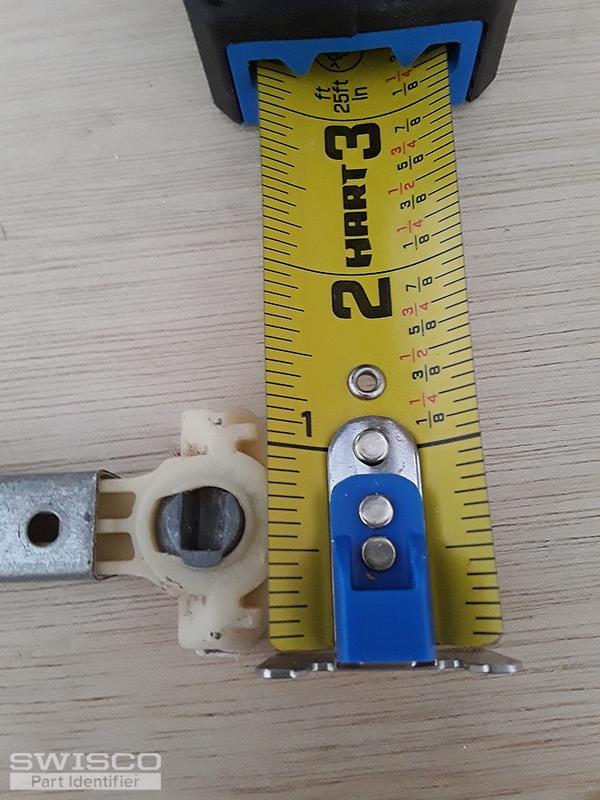

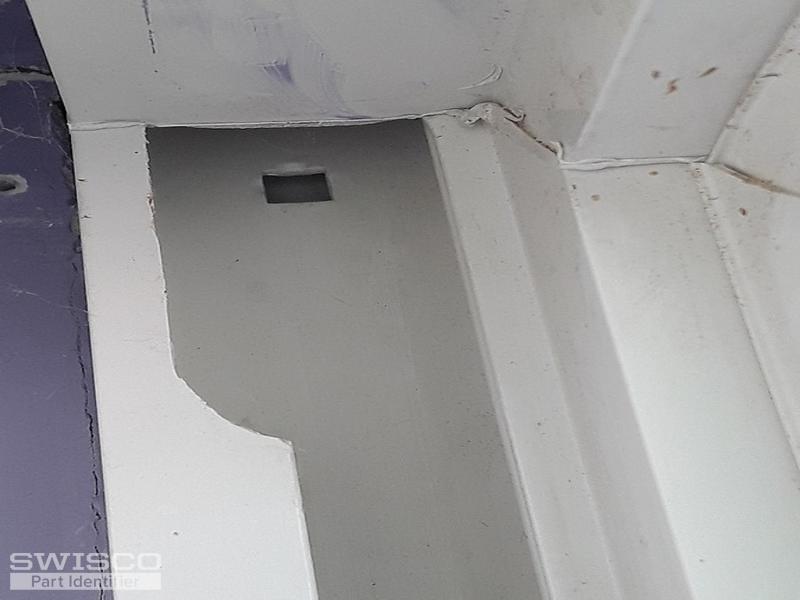

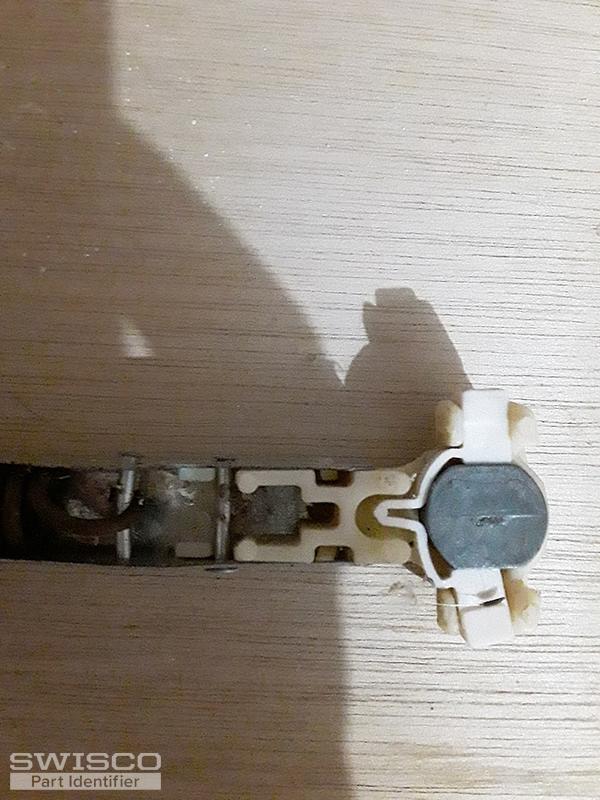

Please confirm the length of the metal channel, not including the bottom shoe attachment. If it's 28" long, it looks like you need an S795-28 with a stamp option of 28C. There's a few things to clarify first however. Please confirm that T-Lock Shoe is 1-1/4" wide. Secondly, your balance seems to attach to the window jamb using a hook like our 15-198. Our standard Series 795 balances use a screw-on clip instead. Therefore we likely will need to custom build balances for you with these hooks attached. This is a simple process and we can do it without problem. However, there may be another solution. Can you show me a picture of a hole in the window track where these balances attach to? Depending on its shape, we may be able to come up with another idea. Many thanks.
